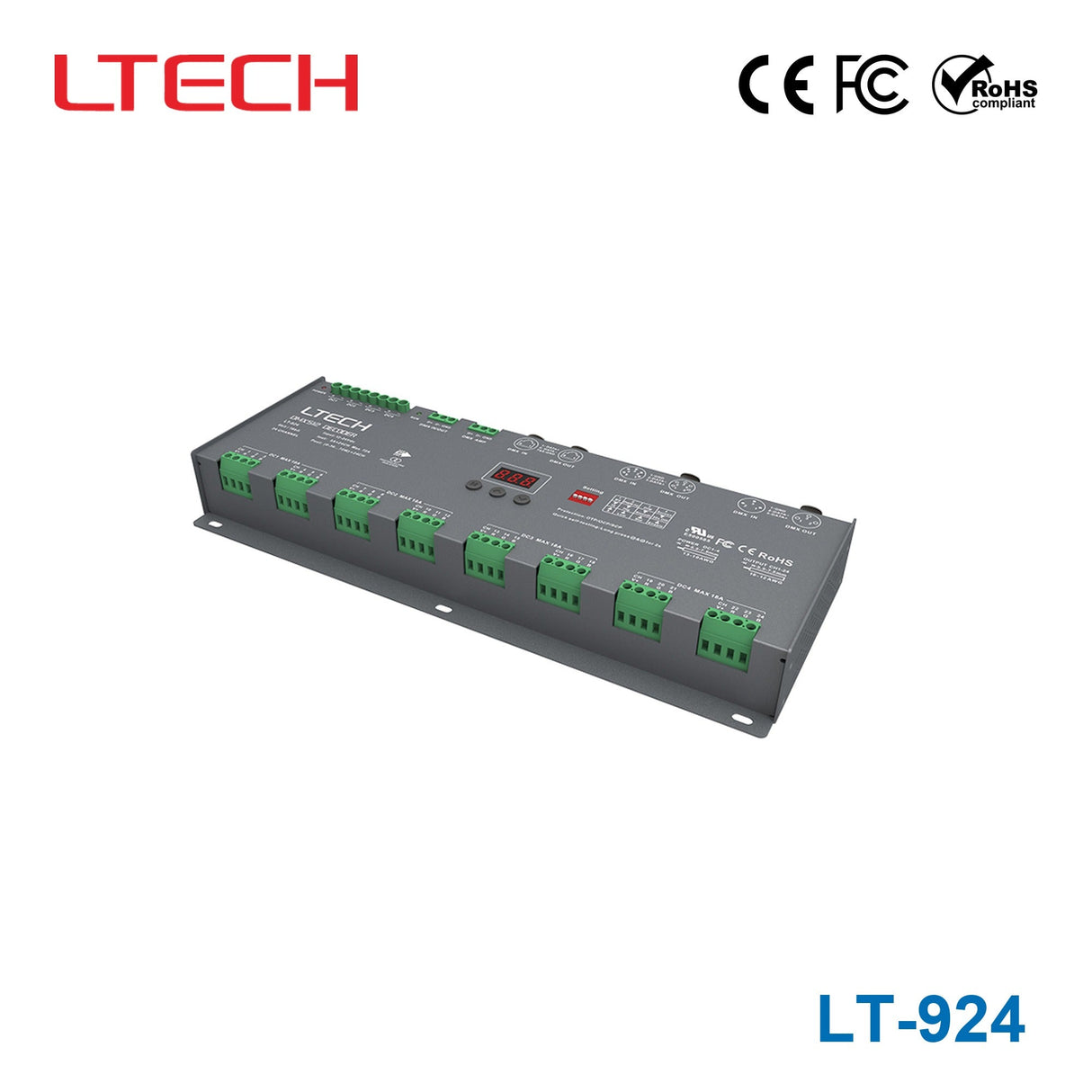

Ltech LT-924 Constant Voltage Decoder - DMX/RDM
The 24-channel OLED DMX decoder is suitable for applications where multiple DIM, CT or RGB must be controlled with a DMX signal. In case you are using RGB FlexStrip a maximum of 8 modules can be connected. It has 24 channels of 3A (72A max) and a maximum power of 1728W. Works with 12 and 24 Volt DC LED modules. Has multiple DMX sockets to chose from: RJ45, Green terminal, XLR-3 and XLR-5. Also supports 8 & 16 bit functions and has 0.1 - 9,9 dimming curve.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating1728 Watt
-
Output Voltage24 Volt
-
Rated Current72 Ampere
-
Input Voltage12V~24V
-
No of Output24
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length11.81 in
-
Width4.8 in
-
Height1.54 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
What is the Ltech LT-924 used for?
The LT-924 is a constant voltage DMX/RDM decoder for projects that need multiple LED lighting outputs controlled from a DMX signal. It is designed for applications using dimming, color temperature, or RGB control across many channels. This makes it a fit for commercial and professional LED control systems.
How many channels does the LT-924 provide?
This model provides 24 output channels. Each channel is rated at 3A, with a combined maximum current of 72A. That channel count is useful when one decoder needs to support several lighting zones or multiple fixture groups.
What voltage and power capacity does the LT-924 support?
The LT-924 works with 12V and 24V DC constant voltage LED modules. Its maximum power is 1728W, and the listed output voltage for this model is 24V. For buyers evaluating load capacity, it is intended for higher-output multi-channel LED control applications.
Does the LT-924 support both DMX and RDM control?
Yes, this decoder supports both DMX and RDM. That gives it compatibility with systems that use standard DMX control as well as setups that require RDM-capable devices. For commercial buyers, that can help when matching the decoder to more advanced control environments.
Is the LT-924 suitable for RGB and tunable white lighting projects?
Yes, the LT-924 is intended for applications where multiple DIM, CT, or RGB outputs need to be controlled from DMX. The product description specifically calls out these control types as suitable use cases. It can therefore serve a range of architectural and commercial LED control scenarios built around constant voltage fixtures.
What makes the LT-924 a strong option for larger DMX lighting systems?
Compared with lower-channel decoders, the LT-924 stands out by combining 24 channels, 72A maximum current, and up to 1728W of power capacity in one unit. It also supports both 8-bit and 16-bit functions and offers a 0.1 to 9.9 dimming curve range. Those features make it better suited to more demanding multi-output control projects.
What operating environment can the LT-924 handle?
The listed operating temperature range is -30°C to 65°C. That gives it a relatively broad environmental range for professional lighting applications. Buyers evaluating project conditions should use that range as the baseline for suitability.
What warranty is offered for the Ltech LT-924?
The LT-924 includes a 5-year warranty period. For commercial purchasers, that can be an important consideration when comparing lifecycle value and long-term support. It is longer than the short warranty terms often seen on lower-tier control components.
