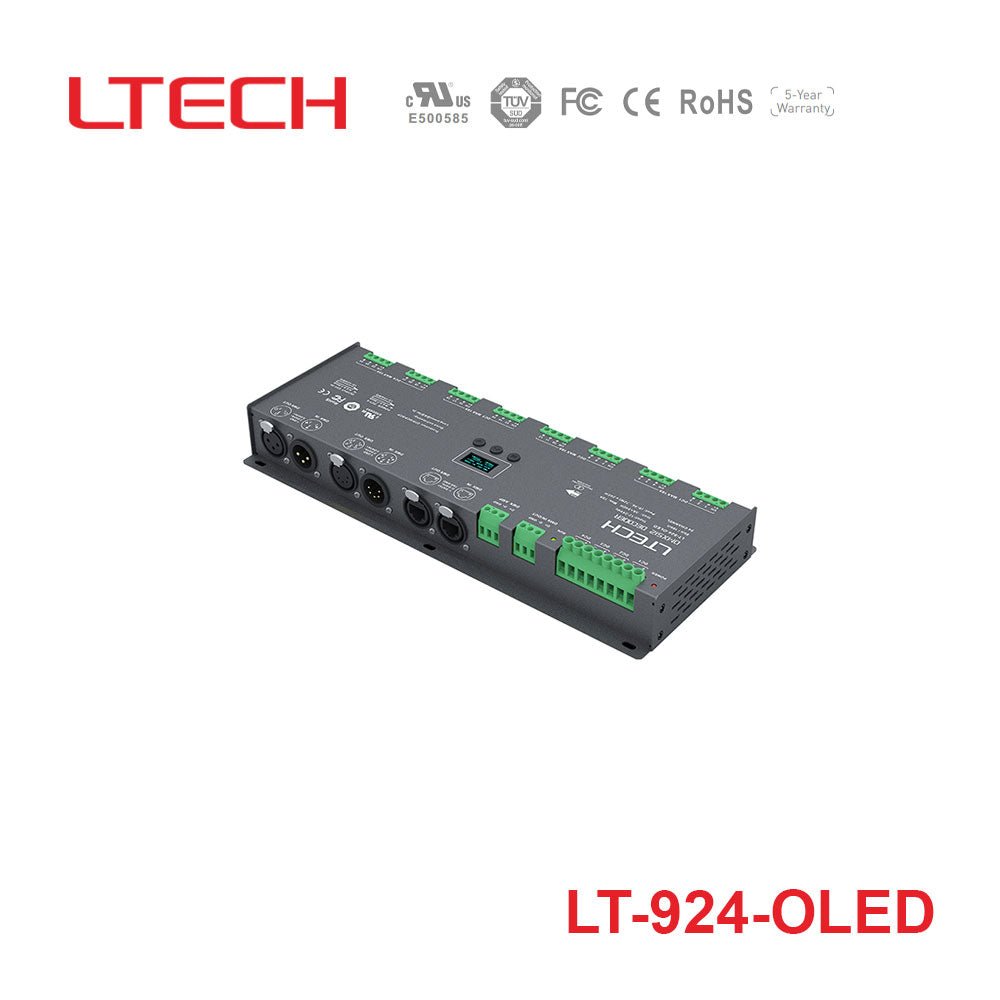

Ltech LT-924-OLED Constant Voltage Decoder - DMX/RDM
The 24-channel OLED DMX decoder is suitable for applications where multiple DIM, CT or RGB must be controlled with a DMX signal. In case you are using RGB FlexStrip a maximum of 8 modules can be connected. It has 24 channels of 3A (72A max) and a maximum power of 1728W. Works with 12 and 24 Volt DC LED modules. Has multiple DMX sockets to chose from: RJ45, Green terminal, XLR-3 and XLR-5. Also supports 8 & 16 bit functions and has 0.1 - 9,9 dimming curve.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating1728 Watt
-
Output Voltage24 Volt
-
Rated Current72 Ampere
-
Input Voltage12V~24V
-
No of Output24
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length11.81 in
-
Width4.8 in
-
Height1.54 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
What is the LT-924-OLED used for?
The LT-924-OLED is a 24-channel constant voltage decoder for DMX/RDM lighting systems. It is intended for projects where multiple dimming, color temperature, or RGB lighting outputs need to be controlled from a DMX signal. For RGB FlexStrip applications, it supports up to 8 modules.
What are the key output specifications of the LT-924-OLED?
This model provides 24 output channels rated at 3A each, with a maximum combined current of 72A. It supports 12V and 24V DC LED modules, and the listed maximum power is 1728W. These specs make it suitable for larger multi-channel constant voltage lighting systems.
Does the LT-924-OLED support both DMX and RDM control?
Yes, the LT-924-OLED supports both DMX and RDM control. That makes it a fit for professional lighting environments that use standard DMX control while also requiring RDM-capable devices. Its dimming control is specifically listed as DMX and RDM.
What makes the LT-924-OLED different from simpler DMX decoders?
A key differentiator is its 24-channel design, which gives it higher channel density than basic decoders intended for fewer outputs. It also includes OLED display support, 8-bit and 16-bit functions, and a dimming curve range of 0.1 to 9.9. These features make it better suited to more complex commercial or architectural lighting control needs.
Is the LT-924-OLED suitable for demanding commercial environments?
Yes, this model is built for a wide operating temperature range from -30°C to 65°C. That range supports use in demanding indoor or protected commercial environments where temperature conditions may vary significantly. It also carries a 5-year warranty, which is relevant for long-term project planning.
What LED voltage does the LT-924-OLED support?
The LT-924-OLED works with 12V and 24V DC LED modules. The product data also lists an output voltage value of 24V. Buyers should confirm their lighting system uses constant voltage LED products within that supported range.
