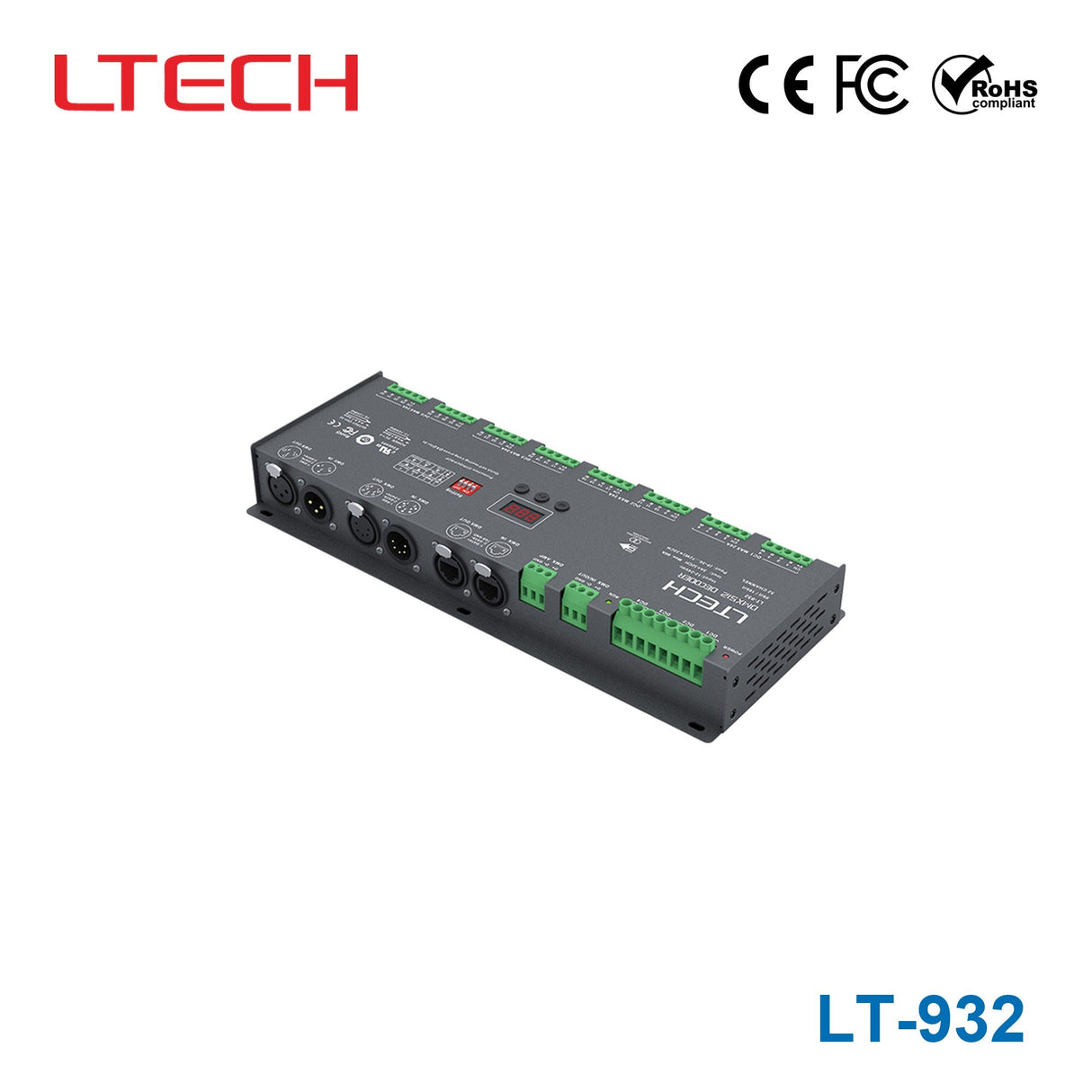

Ltech LT-932 Constant Voltage Decoder - DMX/RDM
The 32-channel OLED DMX decoder is suitable for applications where multiple DIM, CT, RGB or RGBW must be controlled with a DMX signal. In case you are using RGBW Strip a maximum of 8 modules can be connected. With the Dimming
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating2304 Watt
-
Output Voltage24 Volt
-
Rated Current96 Ampere
-
Input Voltage12V~24V
-
No of Output32
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length11.81 in
-
Width4.8 in
-
Height1.54 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
What is the LT-932 used for?
The Ltech LT-932 is a constant-voltage DMX/RDM decoder for LED control applications that need many controllable channels from one unit. It is suited to projects using dimming, color temperature, RGB, or RGBW constant-voltage LED modules, especially in commercial or architectural lighting systems.
How many channels does the LT-932 support?
This model provides 32 output channels, each rated at 3A, with a maximum total current of 96A. That channel count makes it useful for larger multi-zone lighting systems or projects that need many independently controlled outputs from one decoder.
Is the LT-932 compatible with RGBW LED applications?
Yes. The LT-932 supports DIM, CT, RGB, and RGBW control modes. For RGBW strip applications, the product description states that up to 8 modules can be controlled from the 32 available channels.
Does this decoder support both DMX and RDM control?
Yes. The LT-932 supports both DMX and RDM, which makes it suitable for systems built around standard professional lighting control protocols. It also supports 8-bit and 16-bit functions for applications that need different levels of control precision.
What power capacity does the LT-932 offer?
The LT-932 is rated for up to 2304W maximum power. It also has a maximum total output current of 96A, which gives it substantially higher channel density and load capacity than smaller multi-channel LED decoders.
What voltage LED systems is the LT-932 designed for?
According to the product description, the LT-932 works with 12V and 24V DC LED modules. The product data also lists a 24V output voltage rating, so buyers should confirm overall system voltage requirements against the intended LED load.
Can the LT-932 be used in demanding indoor or outdoor environments?
It is designed to operate in a wide temperature range from -30°C to 65°C. That makes it a fit for many commercial, industrial, or architectural environments where ambient conditions are more demanding than typical indoor spaces.
What warranty comes with the LT-932?
The LT-932 includes a 5-year warranty. That is a meaningful consideration for B2B buyers who want longer service-life coverage on lighting control components used in permanent installations or larger projects.
