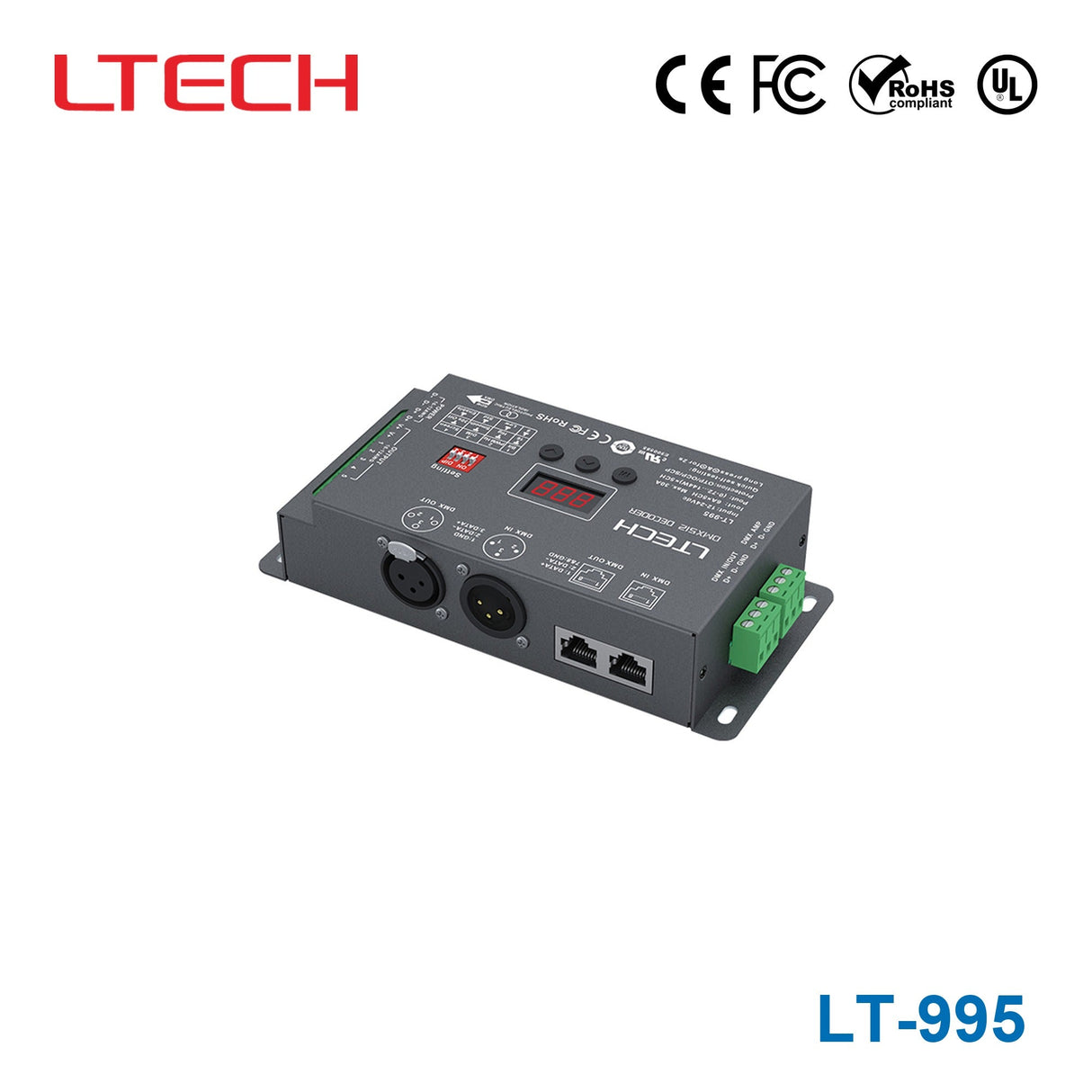

Ltech LT-995 Constant Voltage Decoder - DMX/RDM
LTech LT-995 Product Introduction
1. Designed with 5 channels output, and Max. 6A current per channel, up to 720W output power.
2. Easy operation with digital display and the touch buttons.
3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45, green terminal.
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
5. With shortcut protection and over load protection, as well as warning function when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating720 Watt
-
Output Voltage24 Volt
-
Rated Current30 Ampere
-
Input Voltage12V~24V
-
No of Output5
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length6.65 in
-
Width3.15 in
-
Height1.54 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
What is the LT-995 used for?
The Ltech LT-995 is a constant-voltage DMX/RDM decoder for LED control systems that need multi-channel output. It is designed for applications where a controller must manage constant-voltage LED loads with DMX-based dimming and remote device management support.
What are the main output specifications of the LT-995?
This model provides 5 output channels with a maximum total output power of 720W. Its listed output voltage is 24V, and the rated current is 30A overall.
Does the LT-995 support both DMX and RDM control?
Yes. The LT-995 supports DMX control and also includes RDM functionality for remote management tasks such as parameter viewing, parameter setting, DMX address setting, and device identification through an RDM master console.
How is the LT-995 different from a basic DMX decoder?
Compared with a basic DMX-only decoder, the LT-995 adds RDM support for remote management and device recognition. It also includes a digital display, touch-button operation, self-testing, selectable PWM frequency, and selectable 16-bit or 8-bit grey levels.
Is the LT-995 suitable for demanding commercial or industrial environments?
It is built for a wide operating temperature range from -30°C to 65°C, which supports use in challenging indoor or protected equipment environments. The unit also includes short-circuit protection, overload protection, and fault warning functions for added operating reliability.
What dimming resolution options does the LT-995 offer?
The LT-995 offers selectable 16-bit and 8-bit grey level modes. That means you can choose between finer dimming resolution with 65,536 levels or standard 256-level control depending on system requirements.
What control interface options are available on the LT-995?
This model supports three DMX port formats: 3-pin XLR, RJ45, and green terminal style ports. That gives buyers more flexibility when matching the decoder to existing DMX infrastructure and controller hardware.
What warranty comes with the LT-995?
The listed warranty period for the LT-995 is 5 years. That makes it a longer-coverage option for buyers evaluating LED control hardware for professional projects.
