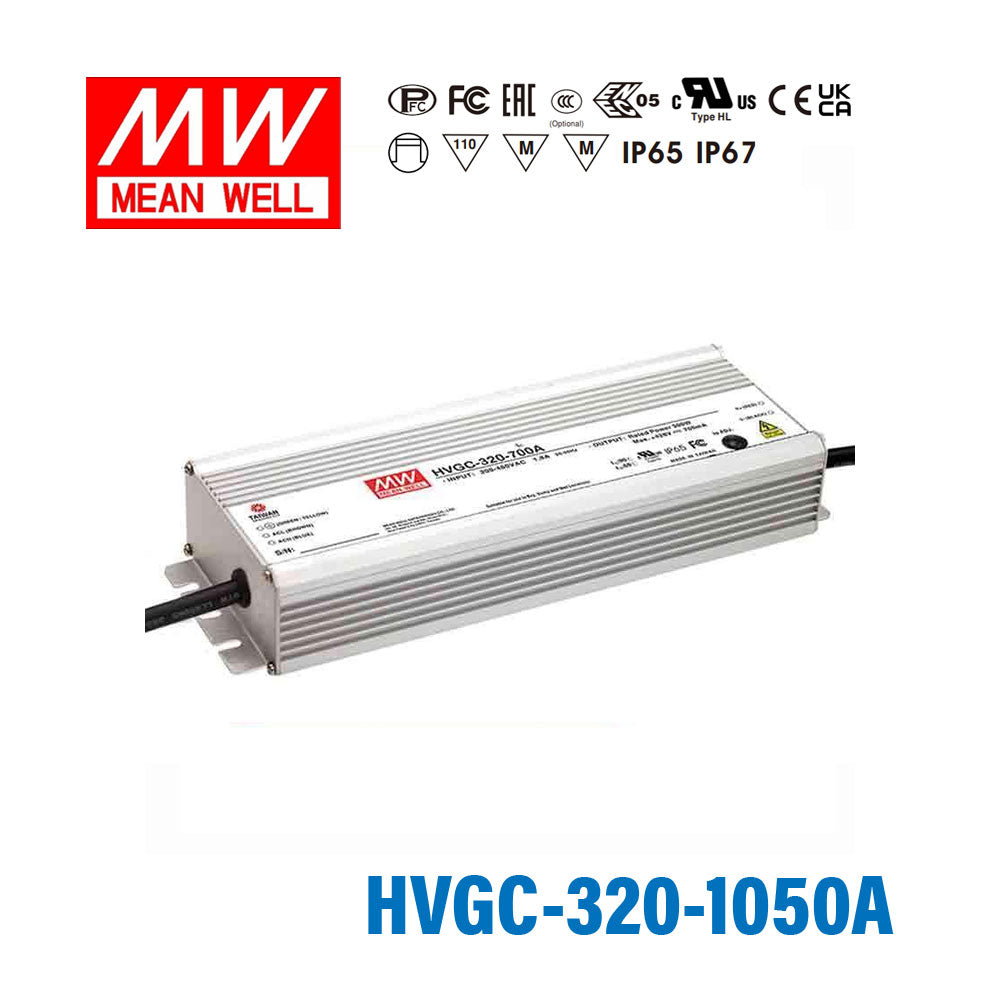

Mean Well HVGC-320-1050A Power Supply 320W 1050mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-320-1050A Power Supply 320W 1050mA - Adjustable
Description
Description
The HVGC-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage311 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVGC-320-1050A for high-voltage LED downlights?
Yes, if the downlight array is designed for constant current at 1050mA and the total LED forward voltage falls within the 152-304V constant-current range. This driver is a 320W constant-current model, so it is intended for LED loads that need regulated current rather than constant-voltage output.
Is this driver suitable for signage modules made from long series LED strings?
It can be a fit for signage modules that use constant-current operation at 1050mA and have a combined forward voltage within 152-304V. The 320W rating and 311V maximum output make it more appropriate for higher-voltage series LED assemblies than for low-voltage constant-voltage signage systems.
Can the HVGC-320-1050A run a small LED array for architectural or commercial lighting?
Yes, provided the LED array is a constant-current load rated for 1050mA and its total forward voltage stays inside the 152-304V CC range. With 320W output capacity and an operating temperature range of -40°C to +90°C, it is built for demanding LED lighting applications.
How do I know if my LEDs are compatible with this constant-current driver?
Your LED load needs to require 1050mA constant current, and its total forward voltage must land between 152V and 304V during constant-current operation. The number of LEDs depends on the forward voltage of each LED, so this model should not be sized by LED count alone or used like a constant-voltage power supply.
How does the HVGC-320-1050A compare with the other 320W 1050mA versions in the series?
The HVGC-320-1050A, HVGC-320-1050AB, and HVGC-320-1050B all share 320W power, 1050mA output current, and a 152-304V constant-current range. In this group, the A version is adjustable, the AB version is adjustable and dimmable, and the B version is dimmable; the A and AB models are IP65, while the B model is IP67.
