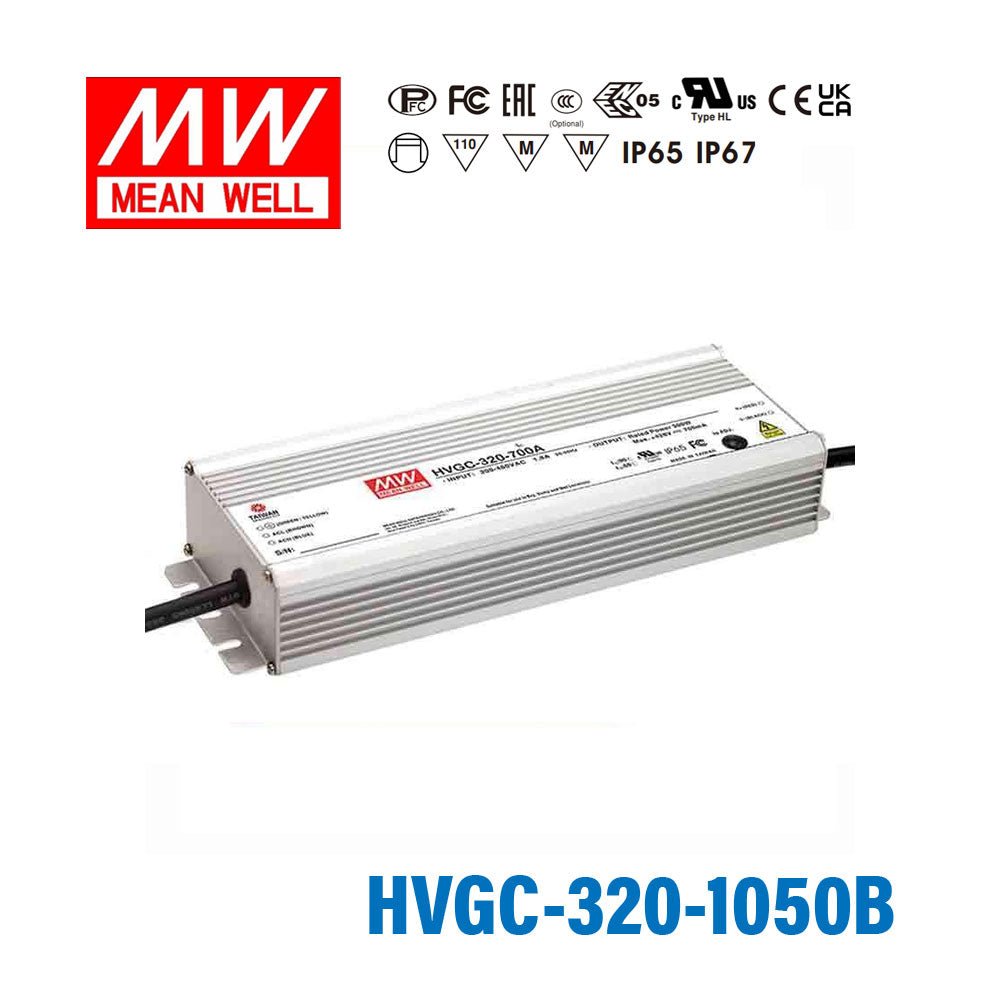

Mean Well HVGC-320-1050B Power Supply 320W 1050mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-320-1050B Power Supply 320W 1050mA - Dimmable
Description
Description
The HVGC-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage311 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVGC-320-1050B for outdoor LED downlights?
Yes, if the fixture uses a constant-current LED load at 1050mA and the total forward voltage is within 152-304V. This version adds an IP67 waterproof rating, which makes it the most weather-exposed option among the 320W 1050mA siblings.
Is this driver a good match for exposed signage modules?
It can be a fit for constant-current signage modules that run at 1050mA and fall within the 152-304V CC voltage window. Because it is a constant-current driver rather than a constant-voltage supply, it should be matched to LED modules designed for regulated current operation.
Can the HVGC-320-1050B run a small LED array in a wet or washdown area?
Yes, if the LED array requires 1050mA constant current and its total forward voltage stays between 152V and 304V. The IP67 enclosure and -40°C to +90°C operating range make it better suited for harsh environments than the IP65 versions.
How do I size LED compatibility for the HVGC-320-1050B?
The LED load must be designed for 1050mA constant current, and its total forward voltage must stay within the 152-304V constant-current range. The number of LEDs depends on the forward voltage of each LED, so this model should be matched by current and voltage range, not by a specific LED quantity.
What is the difference between the HVGC-320-1050B and the A or AB versions?
All three versions share 320W output, 1050mA current, and a 152-304V constant-current range. The A version is adjustable and IP65, the AB version is adjustable and dimmable at IP65, and the B version is dimmable with an IP67 waterproof rating.
