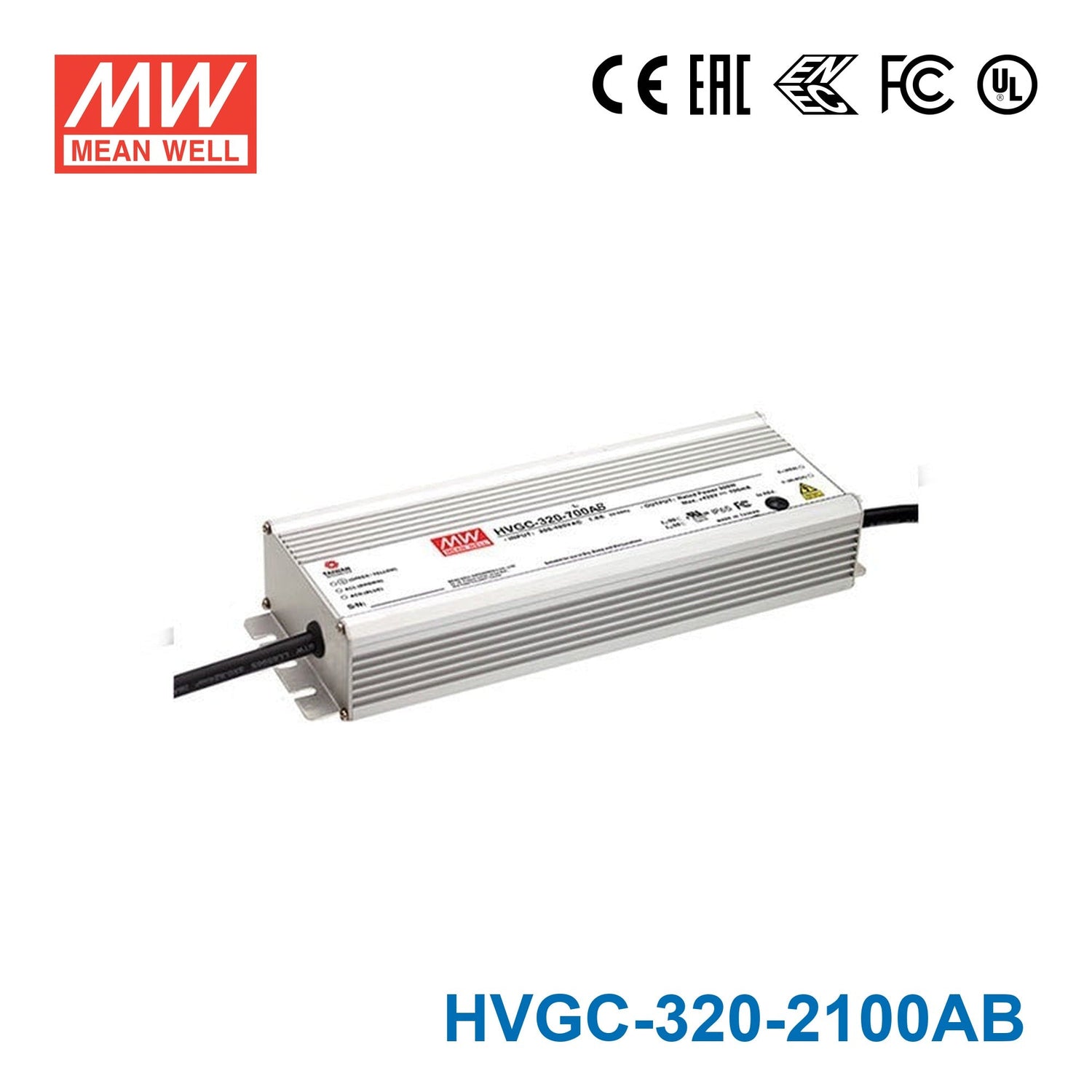

Mean Well HVGC-320-2100AB Power Supply 320W 2100mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-320-2100AB Power Supply 320W 2100mA - Adjustable and...
Overview
HVGC-320-2100AB is the model of this series: rated current 2100mA, rated power 320W, typical efficiency 93.5%.
HVGC-320 series is a 320W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-320 operates from 180~528VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-320 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- IP67 / IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 2100mA
- RATED POWER
- 320W
- CONSTANT CURRENT REGIONNote.2
- 76.2 ~ 152.4V
- OPEN CIRCUIT VOLTAGE (max.)
- 156V
- CURRENT ADJ. RANGE
- Adjustable for A/AB-Type only (via built-in potentiometer)
- CURRENT ADJ. RANGE
- 1050~2100mA
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5%
- SET UP TIMENote.4
- 500ms/230VAC, 347VAC, 480VAC
INPUT
- VOLTAGE RANGENote.3
- 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC, @ load≧60%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
- EFFICIENCY (Typ.)
- 93.5%
- AC CURRENT (Typ.)
- 1.1A / 347VAC 0.8A / 480VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=920μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC
- LEAKAGE CURRENT
- <0.75mA / 480VAC
PROTECTION
- SHORT CIRCUIT
- Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 160 ~ 175V Shut down o/p voltage with re-power on to recovery
- OVER TEMPERATURE
- Shut down and latch off o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.11
- UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, IP65 or IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(@load≧50%), BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020
OTHERS
- MTBF
- 1721.7K hrs min. Telcordia SR-332 (Bellcore) ; 146.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 262*90*43.8mm (L*W*H)
- PACKING
- 2Kg; 8pcs/17Kg/0.92CUFT
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 11. The models certified by CCC (GB/T19510.1, GB/T19510.213, GB/T 17743 and GB17625.1) are optional models. Please contact your MEAN WELL sales for more information.
- 12. For A/AB type need to consider build in using to comply with Type HL application.
- 13. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.
Technical drawings
Typical applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Downloads
FAQ
Can I use the HVGC-320-2100AB for high-power LED downlights?
Yes, this driver is intended for constant current LED loads at 2100mA with a 76.2-152.4V constant current output range. It is a fit for high-power LED downlights when the complete LED load stays within that current and voltage window, rather than for constant voltage fixtures.
Is the HVGC-320-2100AB suitable for signage modules or large channel-letter runs?
It can be suitable for signage modules only if the modules are designed for constant current operation at 2100mA and the total forward voltage falls within 76.2-152.4V. It is not the right choice for standard constant voltage signage modules that expect a fixed DC voltage supply.
Can this driver run a small LED array for architectural or display lighting?
Yes, it can power a small LED array when the array is built as a constant current load at 2100mA and the total forward voltage matches the 76.2-152.4V CC range. With 320W output power, it is aimed at larger LED arrays than lower-power constant current drivers.
How do I know if my LED load is compatible with the HVGC-320-2100AB?
The key match points are 2100mA constant current and a total LED forward voltage within 76.2-152.4V. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked by total forward voltage rather than by a fixed LED count.
Is the HVGC-320-2100AB appropriate for damp or outdoor locations?
The HVGC-320 series is IP65 or IP67 approved, so it is suited to environments where protection against dust and water exposure is needed. It is also rated for a case temperature (Tcase) of -40°C to +90°C, which supports demanding indoor or outdoor conditions when the rest of the system is rated appropriately.
How does the HVGC-320-2100AB compare with the other 320W HVGC current options?
Within the 320W family, the main current and CC range options are 1050mA at 152.4-304.8V, 1400mA at 114.3-228.6V, 1750mA at 91.4-182.8V, 2100mA at 76.2-152.4V, 2800mA at 57-114.3V, 3500mA at 45.7-91.4V, and 700mA at 214-428V. The HVGC-320-2100AB sits in the middle of that group at 2100mA with a 76.2-152.4V constant current range and 320W output.
