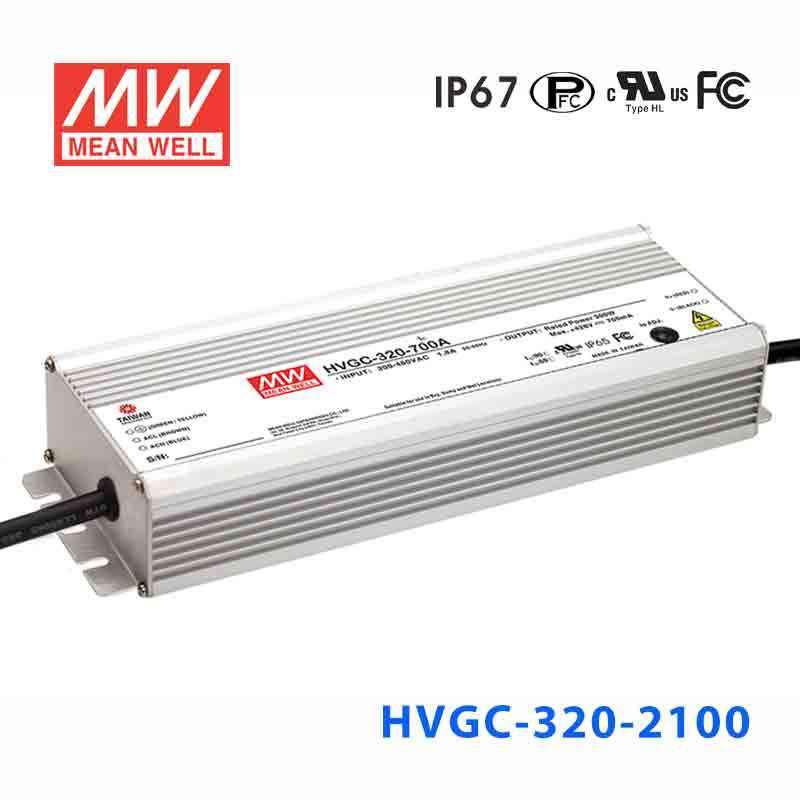

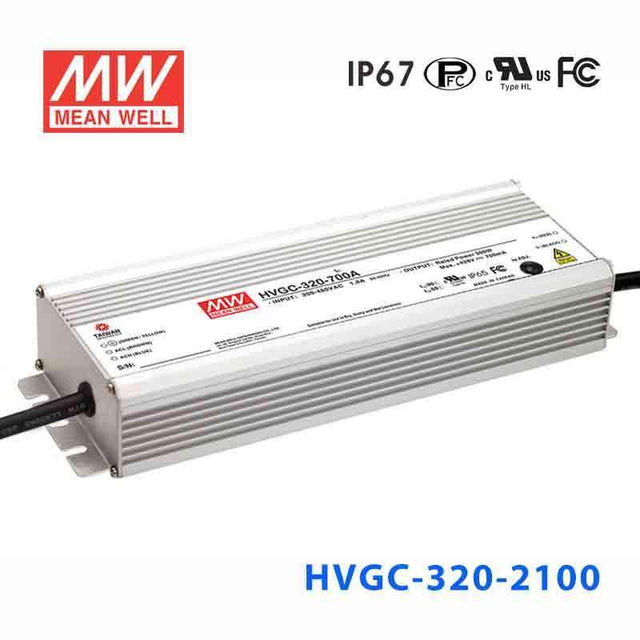

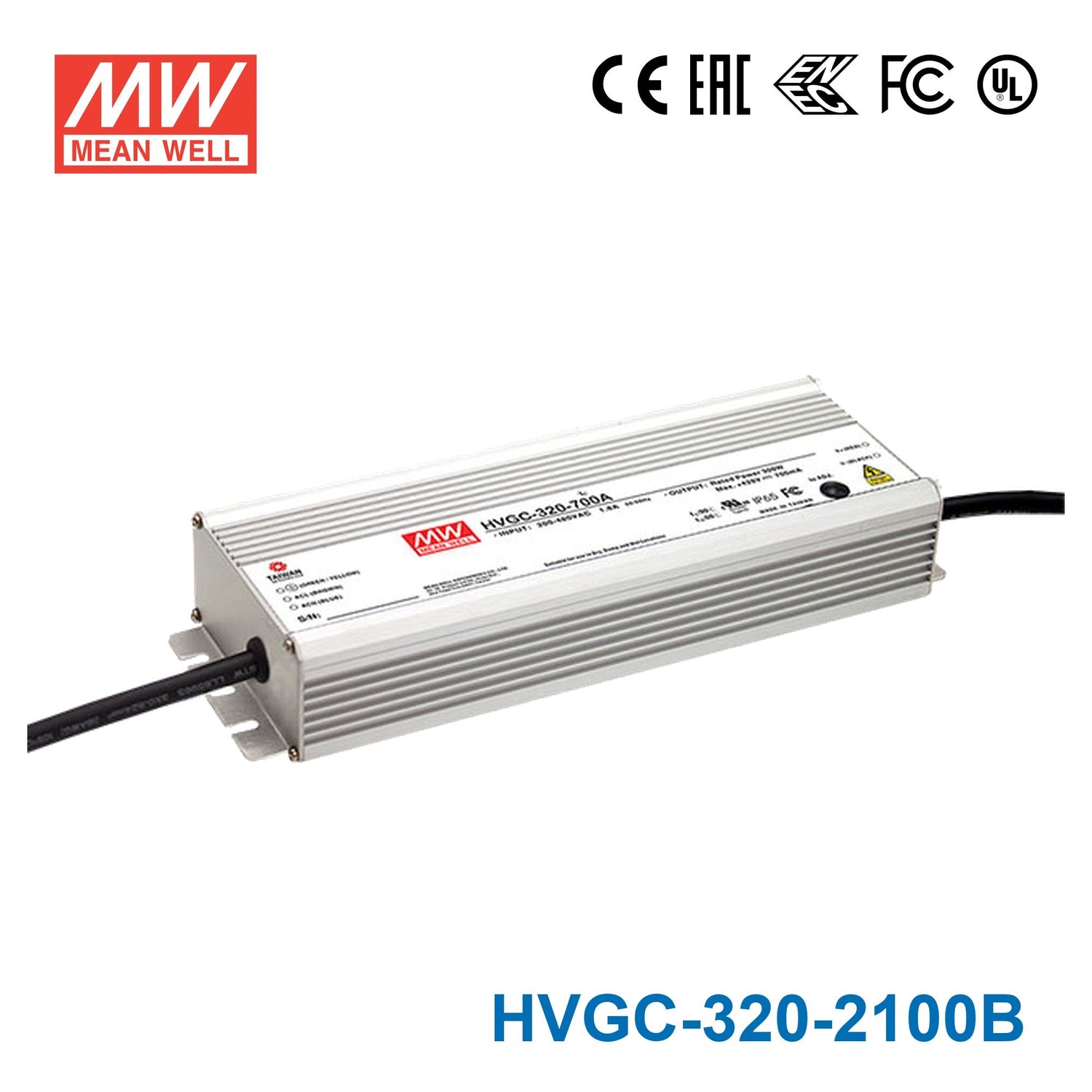

Mean Well HVGC-320-2100B Power Supply 320W 2100mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-320-2100B Power Supply 320W 2100mA - Dimmable
Description
Description
The HVGC-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage156 Volt
-
Rated Current2.1 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HVGC-320-2100B be used for outdoor LED downlights?
Yes, this constant current driver can be used for LED downlights that require 2100mA and have a total forward voltage within 76-152V. Its IP67 waterproof rating makes it better suited to exposed environments than versions with a lower ingress rating.
Is this a good choice for weather-exposed signage modules?
It can work for signage modules only when the module set is a constant current 2100mA load and the full forward voltage stays in the 76-152V CC range. It should not be used in place of a constant voltage supply for signage products built around fixed-voltage input.
Can I use the HVGC-320-2100B with a compact high-output LED array?
Yes, if the LED array is designed for constant current operation at 2100mA and the combined forward voltage falls between 76V and 152V. The 320W rating gives it headroom for higher-power arrays than smaller constant current drivers.
What should I check before pairing LEDs with the HVGC-320-2100B?
Check that the LED load is specified for 2100mA constant current and that its total forward voltage is within the 76-152V output range. The number of LEDs is determined by each LED's forward voltage, so there is no single fixed LED quantity for this driver.
How well does the HVGC-320-2100B handle harsh environmental conditions?
This model carries an IP67 waterproof rating and uses an aluminium casing, so it is intended for more demanding indoor or outdoor environments. Its operating temperature range is -40°C to +90°C, which also supports use in hot or cold locations when the fixture design allows it.
What is the difference between HVGC-320-2100A, HVGC-320-2100AB, and HVGC-320-2100B?
All three share the same core electrical platform: 320W output, 2100mA constant current, and a 76-152V CC range. The difference is in the variant type, with A as adjustable, AB as adjustable and dimmable, and B as dimmable; this B version is also listed here with an IP67 waterproof rating.
