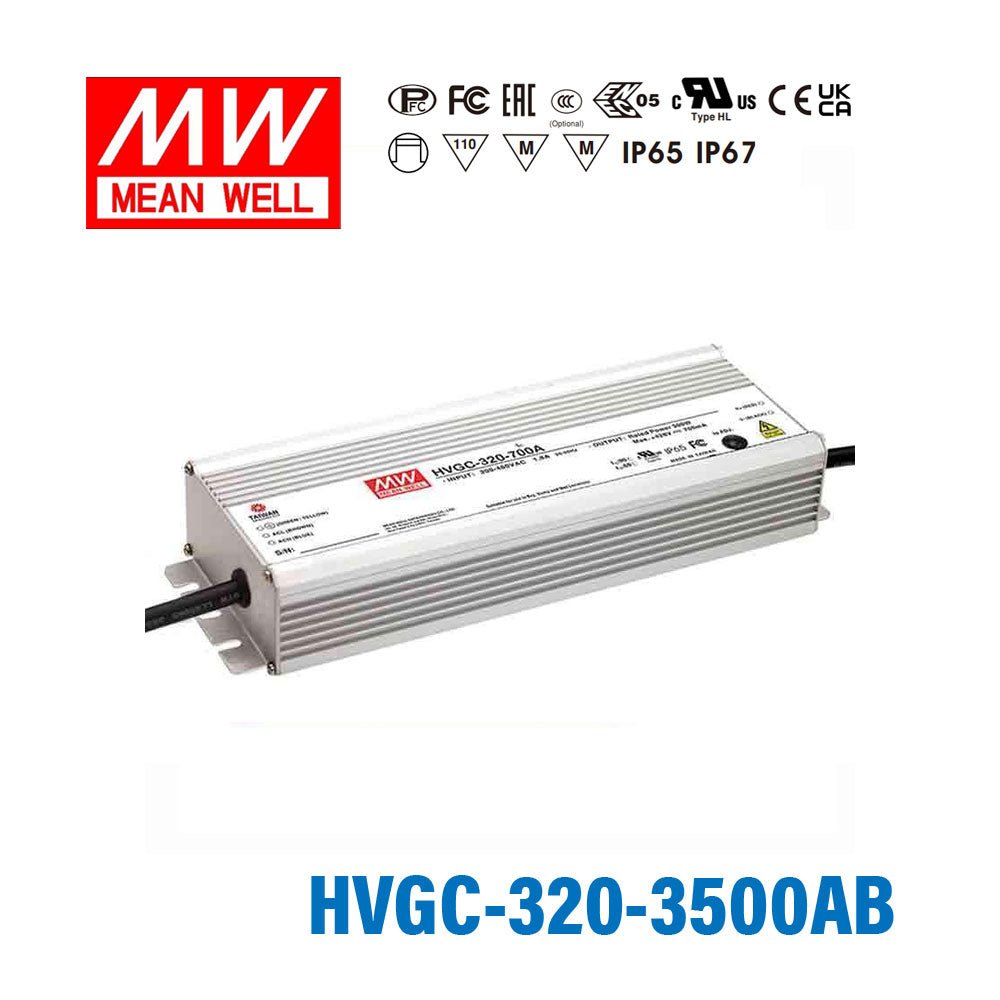

Mean Well HVGC-320-3500AB Power Supply 320W 3500mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-320-3500AB Power Supply 320W 3500mA - Adjustable and...
Description
Description
The HVGC-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage94 Volt
-
Rated Current3.5 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HVGC-320-3500AB be used for dimmable LED downlights?
Yes, when the downlight assembly is built for constant current operation at 3500mA and the LED load stays within 45-91V. This model is a constant current driver, so it should be paired with constant current downlight arrays rather than constant voltage LED products.
Will this driver work for a dimmable small LED array?
It will work for a small LED array if the array requires 3500mA constant current and its total forward voltage falls inside the 45-91V CC range. With 320W output, it is intended for higher-power arrays, not low-power indicator-style boards.
Is the HVGC-320-3500AB a fit for signage lighting projects?
It can be, but only for signage assemblies that are designed as constant current loads at 3500mA. If the signage modules are constant voltage types, this is not the correct driver because this unit operates in constant current mode.
What should I check to confirm LED compatibility with this model?
Confirm that the LED load is rated for 3500mA constant current and that the combined forward voltage is within the 45-91V CC output range. The number of LEDs depends on each LED forward voltage, so there is no single fixed LED count for this driver.
Is the HVGC-320-3500AB suitable for damp or outdoor locations?
It has an IP65 water-resistant rating and an operating temperature range of -40°C to +90°C, so it is suited to demanding environments where water resistance is needed. The aluminium casing and 180-528VAC input range also make it appropriate for commercial and industrial LED driver use.
