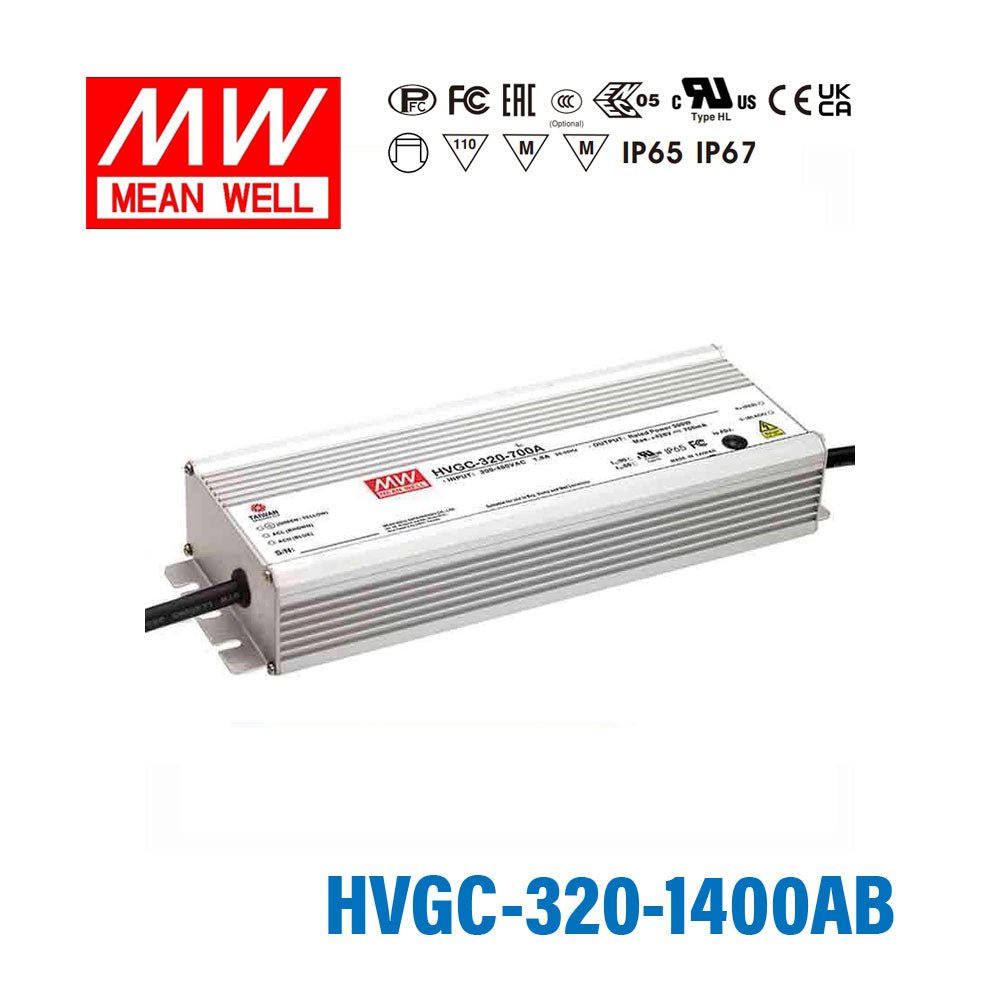

Mean Well HVGC-320-1400AB Power Supply 320W 1400mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-320-1400AB Power Supply 320W 1400mA - Adjustable and...
Description
Description
The HVGC-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage234 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVGC-320-1400AB with dimmable LED downlights?
Yes, if the downlight system is built for 1400mA constant-current operation and the total LED forward voltage is between 114V and 228V. This 320W model is the adjustable and dimmable version in the 1400mA 320W group.
Is this driver appropriate for 1400mA signage modules?
It can be a fit for signage modules that require 1400mA constant current and operate within the 114-228V CC range. Since it is a constant-current driver, it should be paired with LED modules designed for regulated current rather than constant-voltage input.
Can the HVGC-320-1400AB power a compact LED array for architectural lighting?
Yes, provided the array requires 1400mA constant current and its combined forward voltage stays inside the 114-228V range. The 320W rating supports higher-power LED arrays while keeping output in a constant-current mode.
What makes an LED load compatible with the HVGC-320-1400AB?
Compatibility depends on two things: the LEDs must need 1400mA constant current, and the full load must fall within the 114-228V constant-current output range. The number of LEDs will vary with each LED's forward voltage, so there is no single fixed LED count for this driver.
How does the HVGC-320-1400AB compare with the other 320W 1400mA models?
The HVGC-320-1400A, HVGC-320-1400AB, and HVGC-320-1400B all provide 320W, 1400mA output, and a 114-228V constant-current range. The A version is adjustable, the AB version is adjustable and dimmable, and the B version is dimmable; the A and AB models are IP65, while the B model is IP67.
