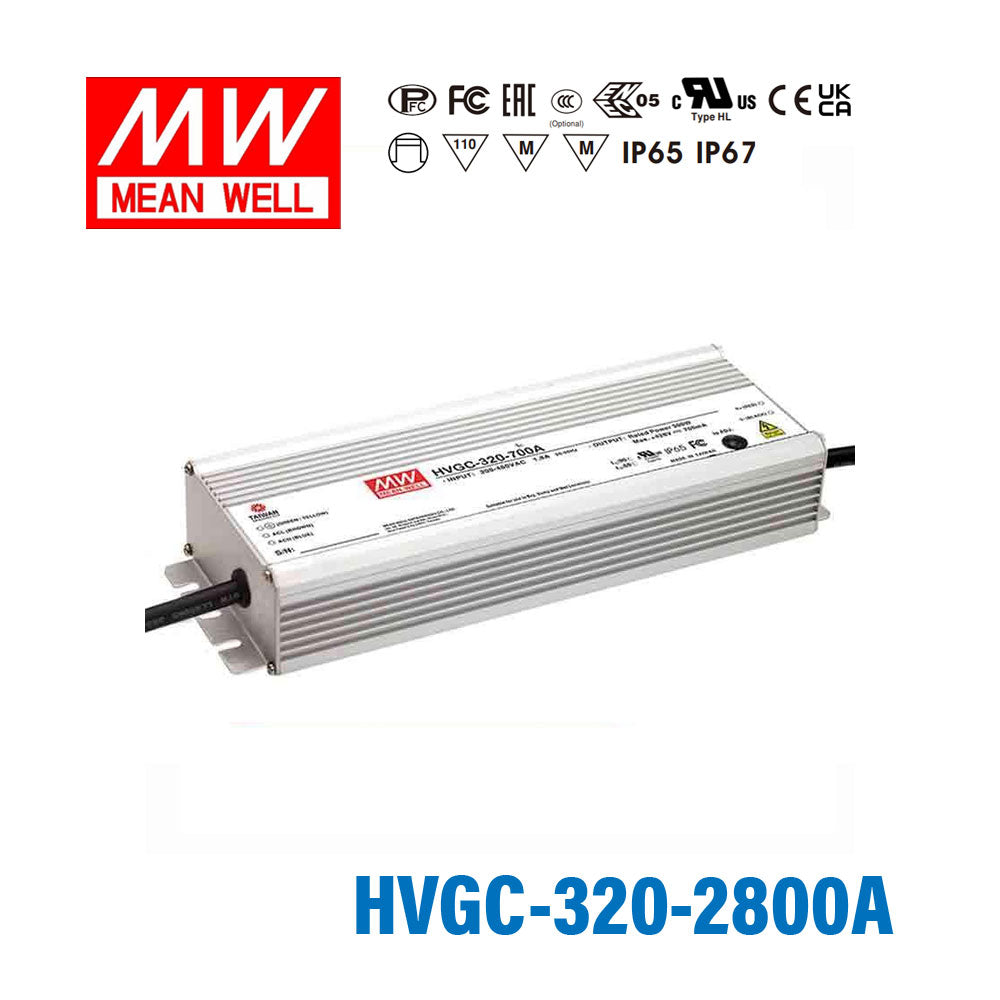

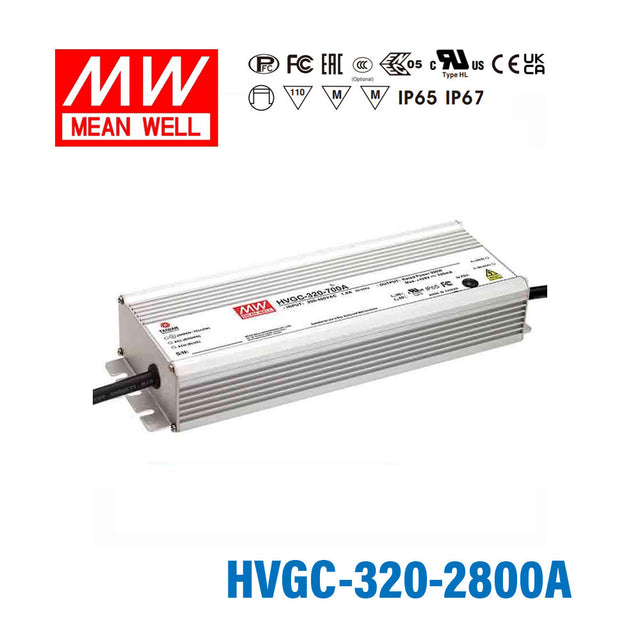

Mean Well HVGC-320-2800A Power Supply 320W 2800mA - Adjustable

Name: Mean Well HVGC-320-2800A Power Supply 320W 2800mA - Adjustable
Brand: Mean Well
SKU: HVGC-320-2800A
Price: 118.18 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-320-2800A

$118.18 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVGC-320-2800A is the model of this series: rated current 2800mA, rated power 320W, typical efficiency 93.5%.

HVGC-320 series is a 320W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-320 operates from 180~528VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-320 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HVGC-320-2800ASpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

RATED CURRENT: 2800mA
RATED POWER: 320W
CONSTANT CURRENT REGION^Note.2: 57 ~ 114.3V
OPEN CIRCUIT VOLTAGE (max.): 118V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1400~2800mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 500ms/230VAC, 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC, @ load≧60%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 1.1A / 347VAC 0.8A / 480VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=920μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 120 ~ 131V Shut down o/p voltage with re-power on to recovery
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.11: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(@load≧50%), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 1721.7K hrs min. Telcordia SR-332 (Bellcore) ; 146.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 262*90*43.8mm (L*W*H)
PACKING: 2Kg; 8pcs/17Kg/0.92CUFT

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. The models certified by CCC (GB/T19510.1, GB/T19510.213, GB/T 17743 and GB17625.1) are optional models. Please contact your MEAN WELL sales for more information.
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVGC-320-2800A Block Diagram — Block Diagram

HVGC-320-2800A DIMMING OPERATION — DIMMING OPERATION

HVGC-320-2800A H V G C - 3 2 0 series — H V G C - 3 2 0 series

HVGC-320-2800A OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

HVGC-320-2800A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVGC-320-2800A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVGC-320-2800A LIFETIME(Kh) — LIFETIME(Kh)

HVGC-320-2800A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates1

FCC Certificate(HVGC-320)(EN) PDF Download

Test reports1

Test Report(HVGC-320-2800)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVGC-320-2800A for COB LED downlights that need higher current?

Yes, this driver is designed for constant current LED loads at 2800mA with a 57-114.3V CC output range. It can suit COB or other high-current LED downlights when the full LED load matches that current and voltage window.

Is the HVGC-320-2800A suitable for constant current signage modules?

It can be suitable for signage modules only if the modules are built for 2800mA constant current operation and their total forward voltage stays between 57V and 114.3V. It is not a replacement for a constant voltage driver used with fixed-voltage signage systems.

Can this model run a low-voltage, high-current LED array?

Yes, this version is oriented toward higher-current arrays because it delivers 2800mA with a lower CC voltage range of 57-114.3V. That makes it a better fit for LED arrays needing more current at a lower total forward voltage than the 2100mA version.

How do I size an LED load for the HVGC-320-2800A?

Match the LED load to 2800mA constant current and keep the total forward voltage within 57-114.3V. The number of LEDs depends on the forward voltage of each LED, so LED count must be derived from the actual LED specifications rather than assumed.

Can the HVGC-320-2800A be used in demanding temperature conditions?

Yes, it is rated for a case temperature (Tcase) of -40°C to +90°C, which supports use in a wide temperature range, with output derating at higher temperatures shown on the sheet. The HVGC-320 series is IP65 or IP67 approved for locations where protection from dust and water exposure is required.

How does the HVGC-320-2800A compare with other 320W current ratings in the same series?

The 320W family spans several output-current and CC-range combinations, including 700mA at 214-428V, 1050mA at 152.4-304.8V, 1400mA at 114.3-228.6V, 1750mA at 91.4-182.8V, 2100mA at 76.2-152.4V, 2800mA at 57-114.3V, and 3500mA at 45.7-91.4V. The HVGC-320-2800A is one of the higher-current, lower-voltage members of that group.
