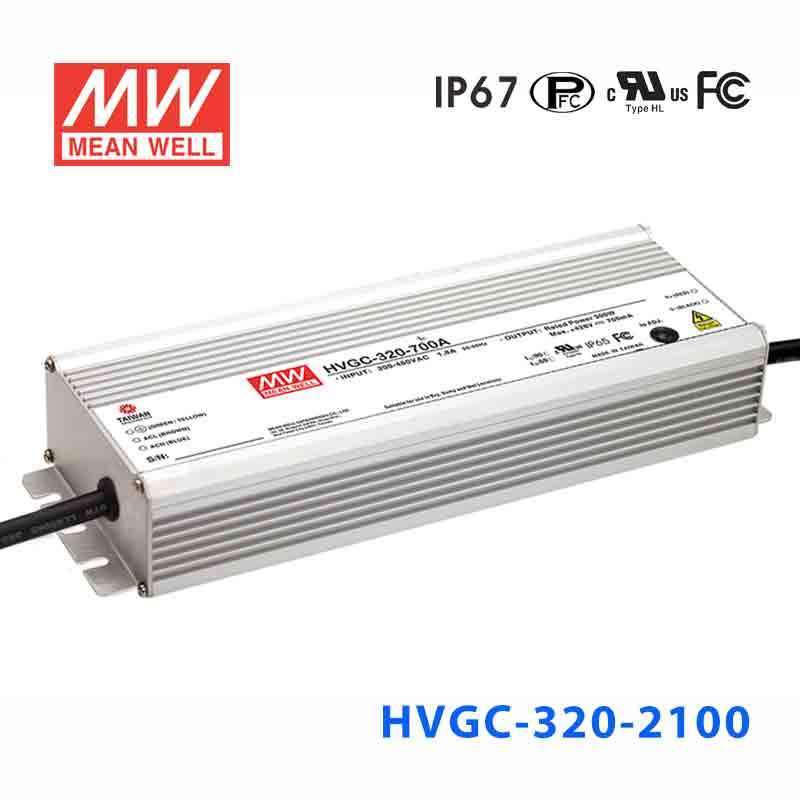

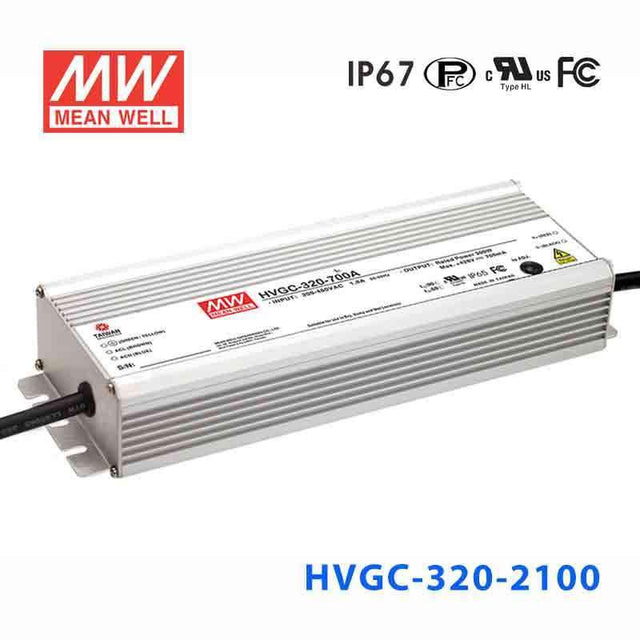

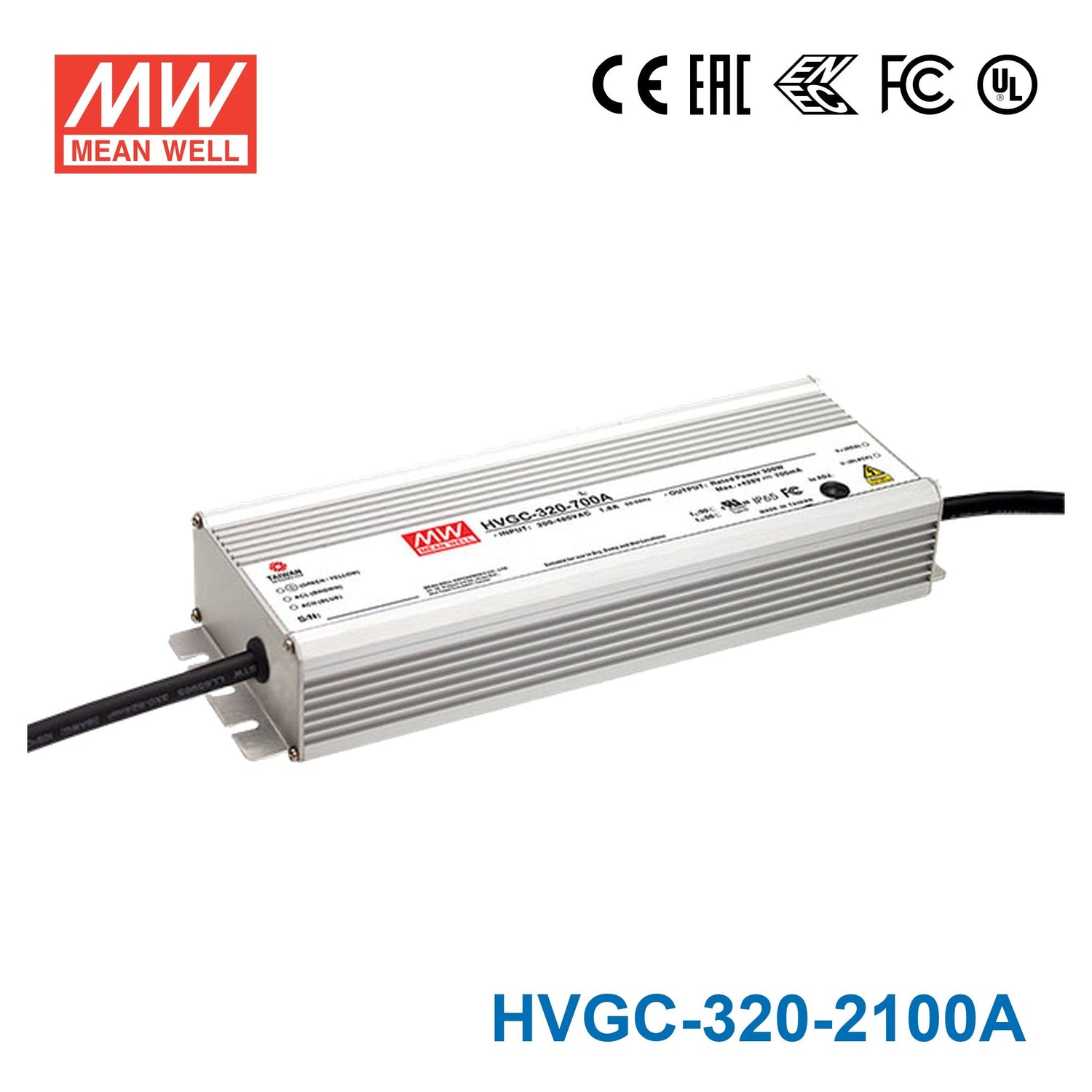

Mean Well HVGC-320-2100A Power Supply 320W 2100mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-320-2100A Power Supply 320W 2100mA - Adjustable
Description
Description
The HVGC-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage156 Volt
-
Rated Current2.1 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HVGC-320-2100A be used for a higher-current LED downlight array?
Yes, if the LED downlight array is designed for 2100mA constant current and its total forward voltage falls within 76-152V. This is a constant current driver, so it is meant for current-driven LED loads rather than constant voltage products.
Is this driver suitable for a compact LED array that needs more current than 1750mA models?
It can be suitable when the LED array requires 2100mA and the total forward voltage stays within the 76-152V CC range. Compared with the 1750mA versions, this model shifts to a higher current and a lower constant current voltage window while keeping the 320W rating.
Can I use the HVGC-320-2100A with constant current signage modules?
Yes, if the signage module assembly is specified for 2100mA constant current and the combined LED forward voltage is between 76V and 152V. It is not the right choice for signage modules that are designed for constant voltage input.
What compatibility checks matter most for the HVGC-320-2100A?
The key checks are output current and total forward voltage: the LED load must match 2100mA and stay within the 76-152V constant current range. The number of LEDs depends on each LED's forward voltage, so load sizing should always be based on total forward voltage rather than a stated LED count.
How does the HVGC-320-2100A differ from nearby HVGC-320 models?
Within the HVGC-320 family, 1750mA models run at 91-182V and 320W, 2100mA models run at 76-152V and 320W, and 2800mA models run at 57-114V and 320W. The HVGC-320-2100A sits between those ranges, offering more current than 1750mA models and a higher voltage window than 2800mA models.
Is the HVGC-320-2100A appropriate for demanding indoor conditions?
Yes, it is rated IP65 water-resistant and has an operating temperature range of -40°C to +90°C. The aluminium casing also supports use where durability and environmental protection are important.
