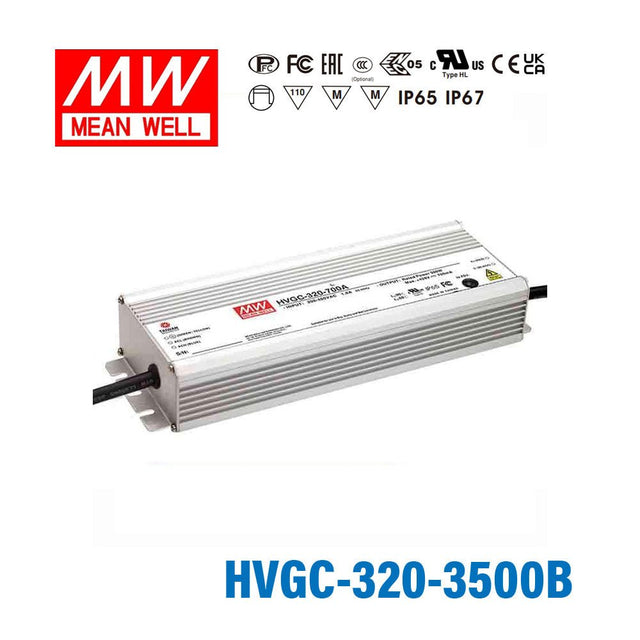

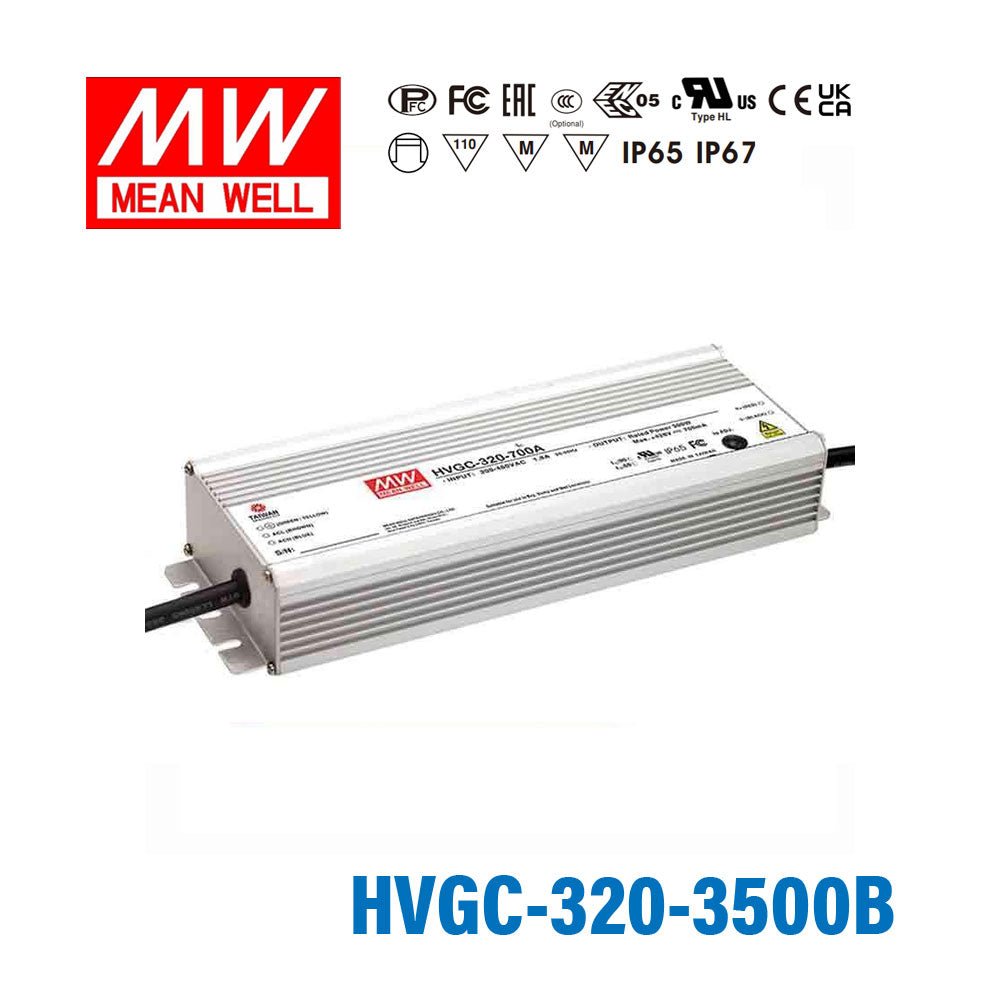

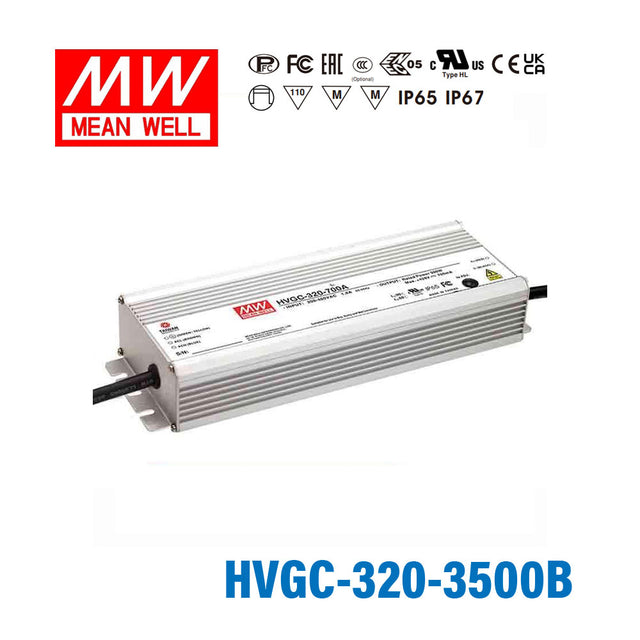

Mean Well HVGC-320-3500B Power Supply 320W 3500mA - Dimmable

Name: Mean Well HVGC-320-3500B Power Supply 320W 3500mA - Dimmable
Brand: Mean Well
SKU: HVGC-320-3500B
Price: 122.33 USD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVGC-320-3500B

$122.33 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

HVGC-320-3500B is the model of this series: rated current 3500mA, rated power 320W, typical efficiency 93%.

HVGC-320 series is a 320W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-320 operates from 180~528VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-320 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HVGC-320-3500BSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

RATED CURRENT: 3500mA
RATED POWER: 320W
CONSTANT CURRENT REGION^Note.2: 45.7 ~ 91.4V
OPEN CIRCUIT VOLTAGE (max.): 94V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 1750~3500mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 500ms/230VAC, 347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC, @ load≧60%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.1A / 347VAC 0.8A / 480VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=920μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 96 ~ 105V Shut down o/p voltage with re-power on to recovery
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.11: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(@load≧50%), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 1721.7K hrs min. Telcordia SR-332 (Bellcore) ; 146.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 262*90*43.8mm (L*W*H)
PACKING: 2Kg; 8pcs/17Kg/0.92CUFT

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. The models certified by CCC (GB/T19510.1, GB/T19510.213, GB/T 17743 and GB17625.1) are optional models. Please contact your MEAN WELL sales for more information.
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVGC-320-3500B Block Diagram — Block Diagram

HVGC-320-3500B DIMMING OPERATION — DIMMING OPERATION

HVGC-320-3500B H V G C - 3 2 0 series — H V G C - 3 2 0 series

HVGC-320-3500B OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

HVGC-320-3500B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVGC-320-3500B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVGC-320-3500B LIFETIME(Kh) — LIFETIME(Kh)

HVGC-320-3500B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates1

FCC Certificate(HVGC-320)(EN) PDF Download

Test reports1

Test Report(HVGC-320-3500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVGC-320-3500B for outdoor LED downlights?

Yes, if the downlight load is a constant current design at 3500mA and stays within the 45.7-91.4V CC range. The HVGC-320 series is IP65 or IP67 approved, which suits it to locations where ingress protection is required.

Is this driver appropriate for waterproof signage lighting systems?

It can be used where the signage load is built for 3500mA constant current and falls within the 45.7-91.4V constant current range. This model is not for constant voltage signage modules, and the series' IP65 or IP67 approval helps where water protection is important.

Will the HVGC-320-3500B work with a compact high-output LED array?

Yes, for a compact array that needs 3500mA constant current and has a total forward voltage within 45.7-91.4V. With a 320W output rating, it is intended for substantial LED loads rather than low-power arrays.

How do I size an LED load for this constant current driver?

The LED system must be rated for 3500mA constant current, and the total forward voltage must land inside the 45.7-91.4V CC output range. The number of LEDs depends on each LED's forward voltage, so the correct sizing method is voltage-range matching rather than choosing a fixed LED count.

What is the main difference between the HVGC-320-3500A, AB, and B versions?

All three versions are 320W, 3500mA constant current drivers with a 45.7-91.4V CC range, 94V max. open-circuit voltage, 180-528VAC input, 262 x 90 x 43.8 mm dimensions, 2.0 kg weight, and -40°C to +90°C case temperature rating. The key difference is function: the A version is adjustable via a built-in potentiometer, the AB version is adjustable and 3-in-1 dimmable, and the B version is 3-in-1 dimmable.
