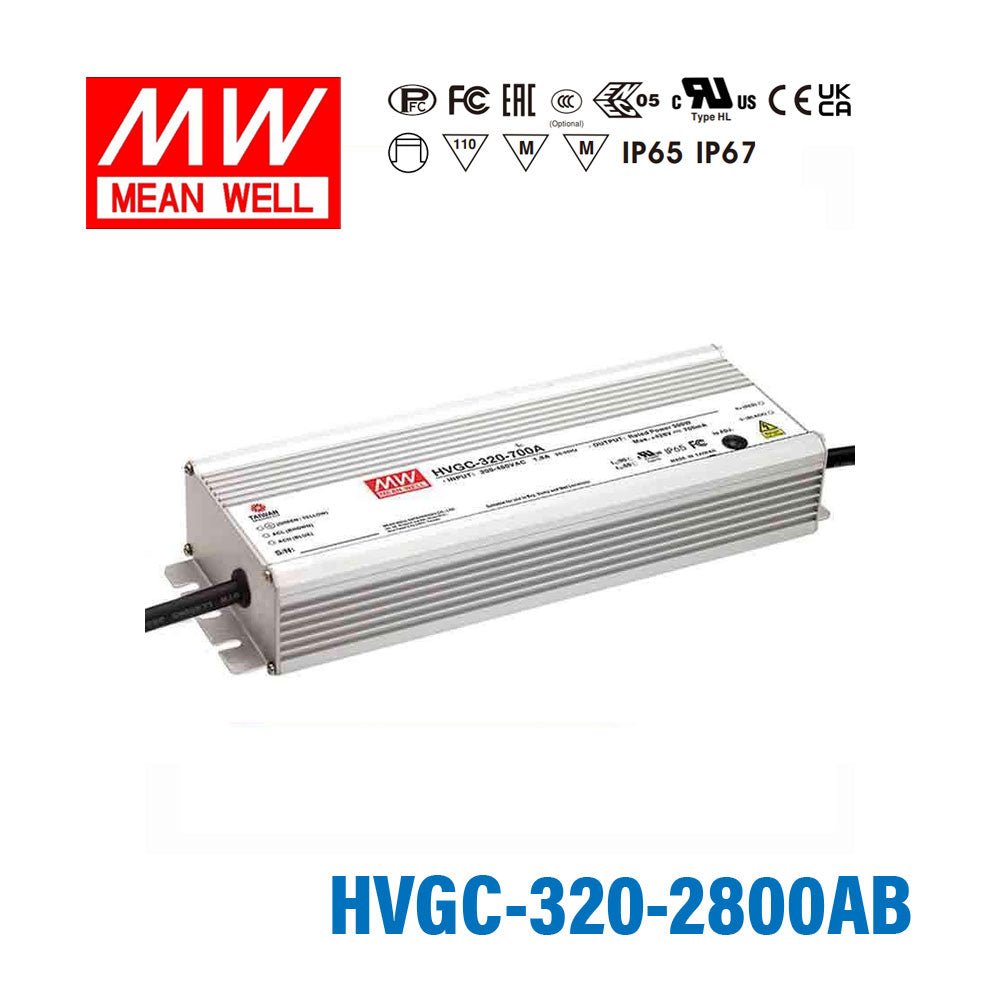

Mean Well HVGC-320-2800AB Power Supply 320W 2800mA - Adjustable and Dimmable

Name: Mean Well HVGC-320-2800AB Power Supply 320W 2800mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HVGC-320-2800AB
Price: 123.62 USD
Availability: InStock

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-2800AB

$123.62 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

320 Watt
Output Voltage

118 Volt
Rated Current

2.8 Ampere
Input Voltage

180V~528V
No of Output

1
Dimming Control

0-10V,10V PWM,Built-in Potentiometer,Resistance
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

10.32 in
Width

3.54 in
Height

1.72 in
Weight

4.41 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range

180~528VAC ; 254~747VDC

AC inrush current (max.)

Cold start 50A/480VAC

Over temperature protection

Shut down and latch off o/p voltage, re-power on to recover

Over voltage protection

Shut down o/p voltage with auto-recovery or re-power on to recovery

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

Working temperature

-40~+90ºC (refer to output derating curve)

Safety standards

UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved

EMC standards

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A

Dimension (LxWxH)(mm)

262 x 90 x 43.8 mm
