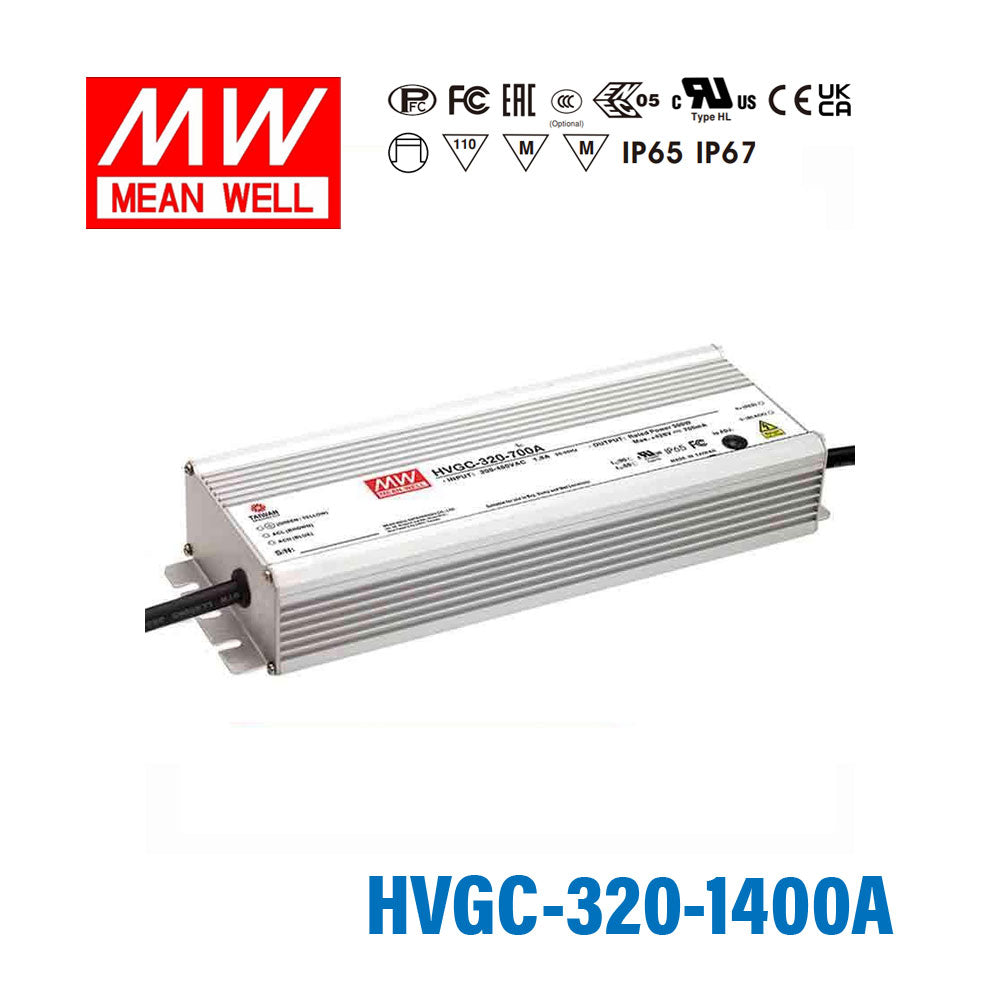

Mean Well HVGC-320-1400A Power Supply 320W 1400mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-320-1400A Power Supply 320W 1400mA - Adjustable
Description
Description
The HVGC-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage234 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVGC-320-1400A for LED downlights that need 1400mA drive current?
Yes, if the downlight array is designed for constant current at 1400mA and its total forward voltage falls within the 114-228V constant-current range. This driver is rated for 320W, so it is intended for higher-power constant-current LED systems rather than constant-voltage fixtures.
Is the HVGC-320-1400A suitable for signage modules with medium-voltage LED strings?
It can be, as long as the signage assembly is a 1400mA constant-current load and the total LED forward voltage stays between 114V and 228V. Compared with the 1050mA version, this model is aimed at loads that need more current and a lower CC voltage range.
Can this driver power a small high-output LED array?
Yes, when the array is specified for 1400mA constant current and its combined forward voltage is inside the 114-228V CC range. With 320W output and a maximum output voltage of 234V, it fits higher-output constant-current LED arrays within that voltage window.
How do I verify compatibility with the HVGC-320-1400A?
The LED load must require 1400mA constant current, and the total forward voltage must be within the 114-228V constant-current range. The number of LEDs depends on each LED's forward voltage, so this driver should not be selected by LED count alone or treated like a constant-voltage supply.
Can the HVGC-320-1400A be used in demanding temperature conditions?
Yes. It is rated for operation from -40°C to +90°C and uses an aluminium casing with an IP65 water-resistant enclosure, which makes it suitable for applications where temperature range and enclosure durability matter.
