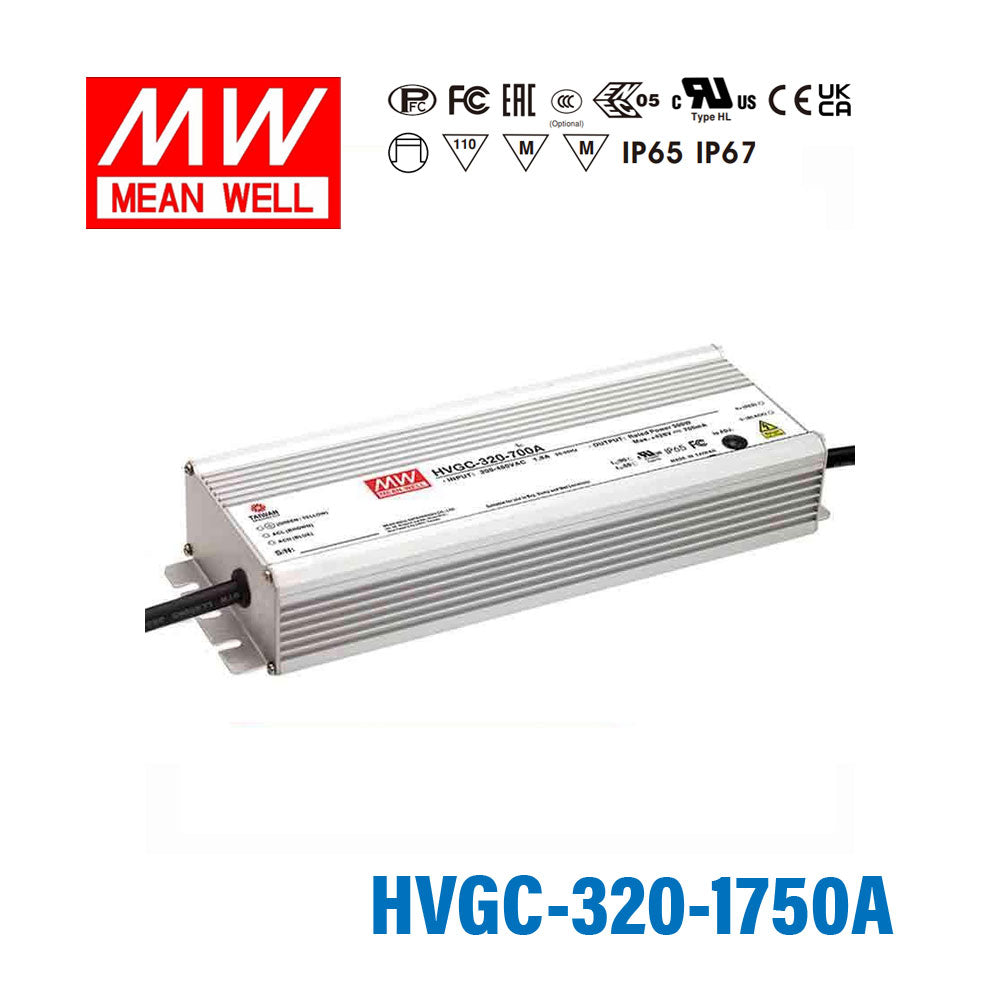

Mean Well HVGC-320-1750A Power Supply 320W 1750mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HVGC-320-1750A Power Supply 320W 1750mA - Adjustable
Description
Description
The HVGC-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage187 Volt
-
Rated Current1.75 Ampere
-
Input Voltage180V~528V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length10.32 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.41 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVGC-320-1750A for a constant current LED downlight system?
Yes, if the downlight system requires 1750mA constant current and the total forward voltage stays within 91-182V. This is a constant current driver, so it should be matched to LED loads designed for current regulation rather than constant voltage input.
Will this driver work for a compact LED array with a mid-voltage constant current load?
It can work well for a compact LED array when the array is specified for 1750mA and its combined forward voltage fits inside the 91-182V CC range. The 320W rating makes it suitable for higher-power LED arrays that need more output than lower-wattage drivers.
Is the HVGC-320-1750A a fit for signage modules that use constant current?
It is a fit only if the signage module assembly is a constant current load at 1750mA and the full LED load voltage is between 91V and 182V. It is not intended for constant voltage signage modules.
How should I size an LED load for the HVGC-320-1750A?
The LED load needs to match 1750mA output current and fall within the 91-182V constant current range. The number of LEDs depends on the forward voltage of each LED, so the correct way to size the load is by total forward voltage, not by a fixed LED count.
Is this model suitable for dusty or damp locations?
This version is rated IP65, so it is water-resistant rather than fully waterproof. It also carries a -40°C to +90°C operating temperature range and uses an aluminium casing, which helps in demanding environments where a sealed constant current driver is needed.
