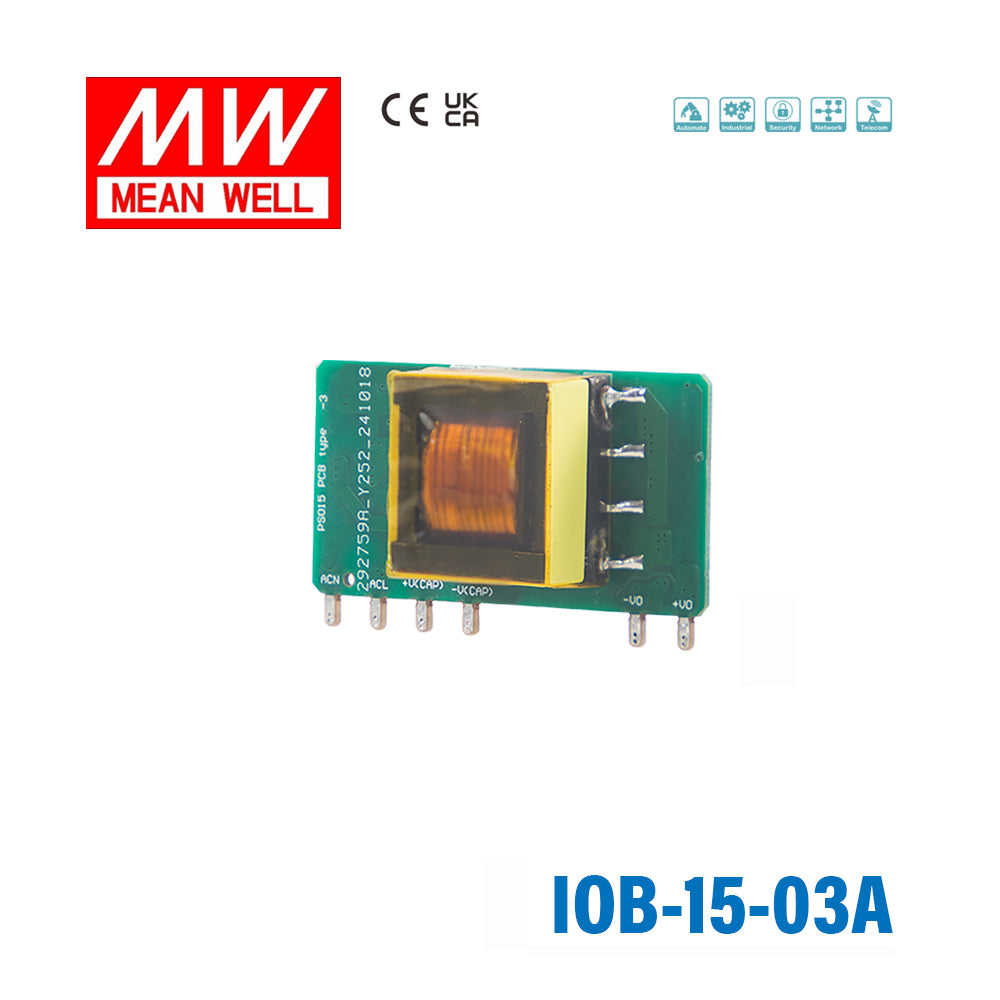

Mean Well IOB-15-03A AC-DC On Board Type Power Module 9.9W 3.3V, Gold Finger PCB
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-03A AC-DC On Board Type Power Module 9.9W 3.3V, Go...
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating9.9 Watt
-
Output Voltage3.3 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of power supply is the Mean Well IOB-15-03A?
The IOB-15-03A is an AC-DC on-board power module designed for PCB-mounted power conversion inside equipment. It provides a regulated 3.3V DC output with up to 3A rated current and 9.9W output power.
What input range does the IOB-15-03A support?
This model accepts a wide 85 to 305Vac input range and also supports 100 to 430Vdc input. That broad range makes it suitable for equipment that may be used across different mains environments.
What kinds of applications is the IOB-15-03A best suited for?
The IOB-15-03A is intended for embedded industrial or commercial equipment that needs compact on-board AC-DC conversion. Its small form factor and PCB-oriented design make it a fit for space-conscious systems requiring a 3.3V rail.
Can the IOB-15-03A operate in demanding temperature conditions?
Yes, this model is rated for operation from -40°C to +85°C, subject to the manufacturer's derating guidance. That wide temperature range makes it a practical option for equipment deployed in harsher operating environments.
What protection features are included in the IOB-15-03A?
The module includes short circuit, overload, and over voltage protection. Short circuit and overload protection use automatic recovery behavior, helping protect the power module during abnormal fault conditions.
How compact is the Mean Well IOB-15-03A?
The specified dimensions are 44.5 x 24 x 15 mm, making it a compact on-board power module for designs with limited internal space. Its listed weight is 0.0112 kg, which also supports use in compact assemblies.
