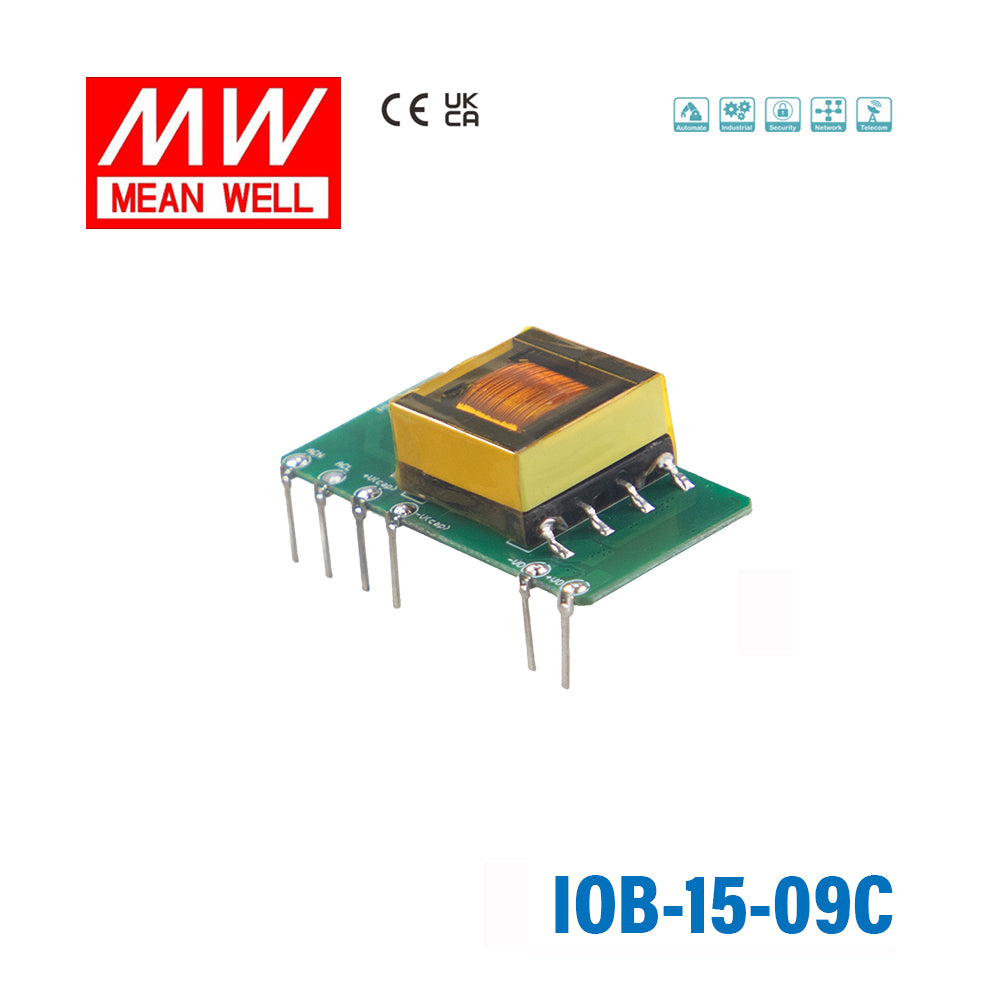

Mean Well IOB-15-09C AC-DC On Board Type Power Module 15W 9V, Vertical
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-09C AC-DC On Board Type Power Module 15W 9V, Vertical
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1.67 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-09C designed for?
The IOB-15-09C is an AC-DC on-board power module intended to be assembled onto a system’s main PCB. It is built for compact embedded equipment that needs a regulated low-power supply from a wide AC input range.
What output does this specific IOB-15 model provide?
This model is the 9V version of Mean Well’s 15W IOB series and is rated for up to 15W output power. It is also listed with a rated current of 1.67A, making it suitable for designs that need a compact 9V onboard supply.
What input range does the IOB-15-09C support?
The module supports a wide 85-305Vac input range and also accepts 100-430Vdc. That broad input capability makes it useful for equipment intended for varied mains environments.
Can the IOB-15-09C be used in demanding temperature conditions?
Yes. The specified operating temperature range is -40°C to +85°C, which is broader than many general-purpose power modules in this wattage class. It is also cooled by free air convection, so it is intended for designs that do not rely on active cooling at the module level.
What protection features are included in the IOB-15-09C?
This model includes short circuit, overload, and over voltage protection. The short circuit and overload protections use automatic recovery behavior, with hiccup mode noted in the specification.
How compact is the Mean Well IOB-15-09C?
The module measures 44.5 x 24 x 15 mm, which corresponds to a compact on-board footprint for embedded power designs. The product name also identifies it as the vertical version, which can matter when comparing board-space and height constraints across similar modules.
