Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

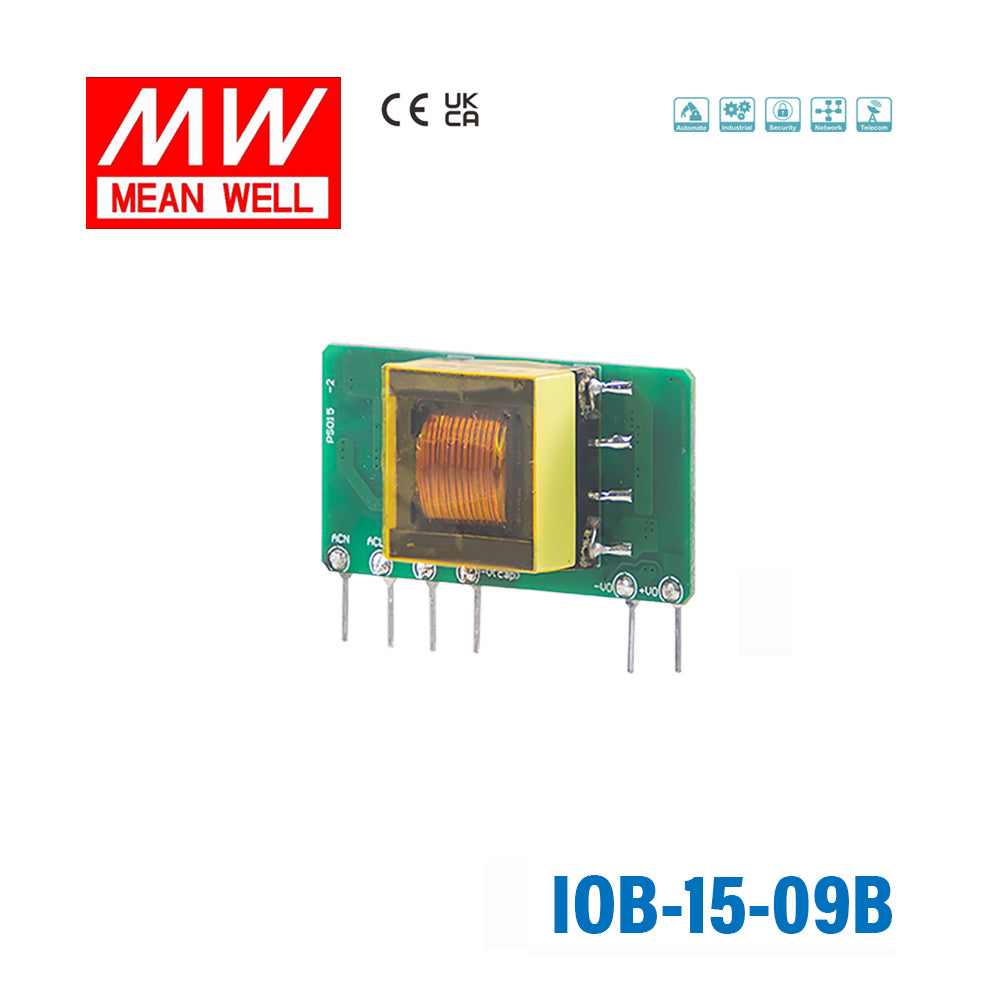

Mean Well IOB-15-09B AC-DC On Board Type Power Module 15W 9V, Horizontal
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-09B AC-DC On Board Type Power Module 15W 9V, Horiz...
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current1.67 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of power supply is the Mean Well IOB-15-09B?
The IOB-15-09B is an AC-DC on-board power module designed to be used as a compact embedded power supply inside larger equipment. It is a 15W model in Mean Well's IOB series and is described as the horizontal version of this module.
What input voltage range does the IOB-15-09B support?
This model accepts a wide 85-305Vac input range and also supports 100-430Vdc input. That wide-range input makes it suitable for equipment intended for varied mains environments without needing a narrowly matched input source.
What applications is the IOB-15-09B best suited for?
This module is aimed at embedded industrial and commercial electronics that need a compact on-board AC-DC power source. Its small footprint, low no-load power consumption, and wide input range make it a fit for space-constrained control, monitoring, and internal system power applications.
Can the IOB-15-09B operate in demanding temperature conditions?
Yes. The specified operating temperature range is -40 to +85 degrees C, which is broad for an on-board power module. That makes it appropriate for equipment exposed to cold starts or elevated internal enclosure temperatures, provided the overall design stays within the product's derating guidance.
What protection features are included in the IOB-15-09B?
The IOB-15-09B includes short circuit, overload, and over-voltage protection. The short circuit and overload responses are described as hiccup-mode protection with automatic recovery after the fault condition is removed.
How compact is the Mean Well IOB-15-09B?
This module is specified at 44.5 x 24 x 15 mm, making it a compact option for designs where board space is limited. The product description also highlights its small on-board form factor as a key feature.
What safety and efficiency-related points stand out on this model?
The IOB-15-09B is listed as Safety Class II and approved to IEC62368-1. It also has no-load power consumption below 0.25W and uses free-air convection cooling, which supports efficient operation in embedded equipment without requiring active cooling hardware.
