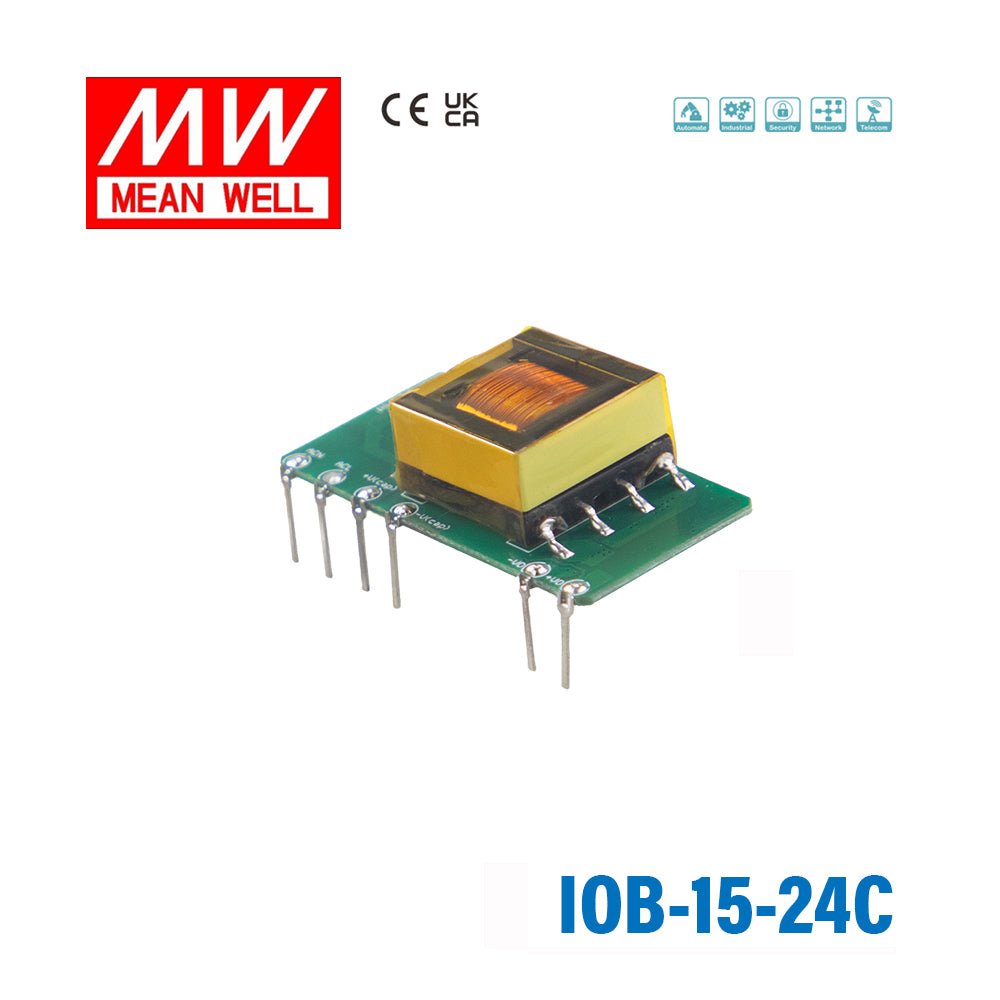

Mean Well IOB-15-24C AC-DC On Board Type Power Module 15W 24V, Vertical
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-24C AC-DC On Board Type Power Module 15W 24V, Vert...
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage9 Volt
-
Rated Current0.62 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-24C designed for?
The IOB-15-24C is an AC-DC on-board power module intended for equipment that uses a compact PCB-mounted power supply. It provides a 24V DC output at 15W, which suits embedded industrial and electronic system designs where space is limited. Its vertical form factor helps fit power conversion into dense layouts.
What are the main electrical specifications of the IOB-15-24C?
This model is rated for 15W output and provides 24V DC at 0.625A. It accepts a wide 85 to 305Vac input range and also supports 100 to 430Vdc input. Ripple and noise are specified at 150mV.
Is the IOB-15-24C suitable for demanding temperature conditions?
Yes. The module is rated for operation from -40°C to +85°C when used within the product's derating guidance. That makes it a practical option for industrial equipment exposed to cold starts or elevated internal cabinet temperatures.
What protection features are built into the IOB-15-24C?
The IOB-15-24C includes short circuit, overload, and over voltage protection. Short circuit and overload protection use automatic recovery behavior in hiccup mode after the fault is removed. These protections help support equipment reliability in normal industrial use.
What makes the IOB-15-24C a good fit for compact OEM equipment?
This model combines a compact on-board package with a wide AC input range and low no-load power consumption below 0.25W. It is also convection cooled, which helps simplify use in enclosed equipment without adding fan requirements. For OEM designs needing a small 24V power module, those traits are a meaningful advantage.
Does the IOB-15-24C meet recognized safety standards?
Yes. The IOB-15-24C is approved to IEC62368-1 and is listed as Safety Class II. It also has a 3KVac input-to-output withstand voltage specification and is backed by a 3-year warranty.
