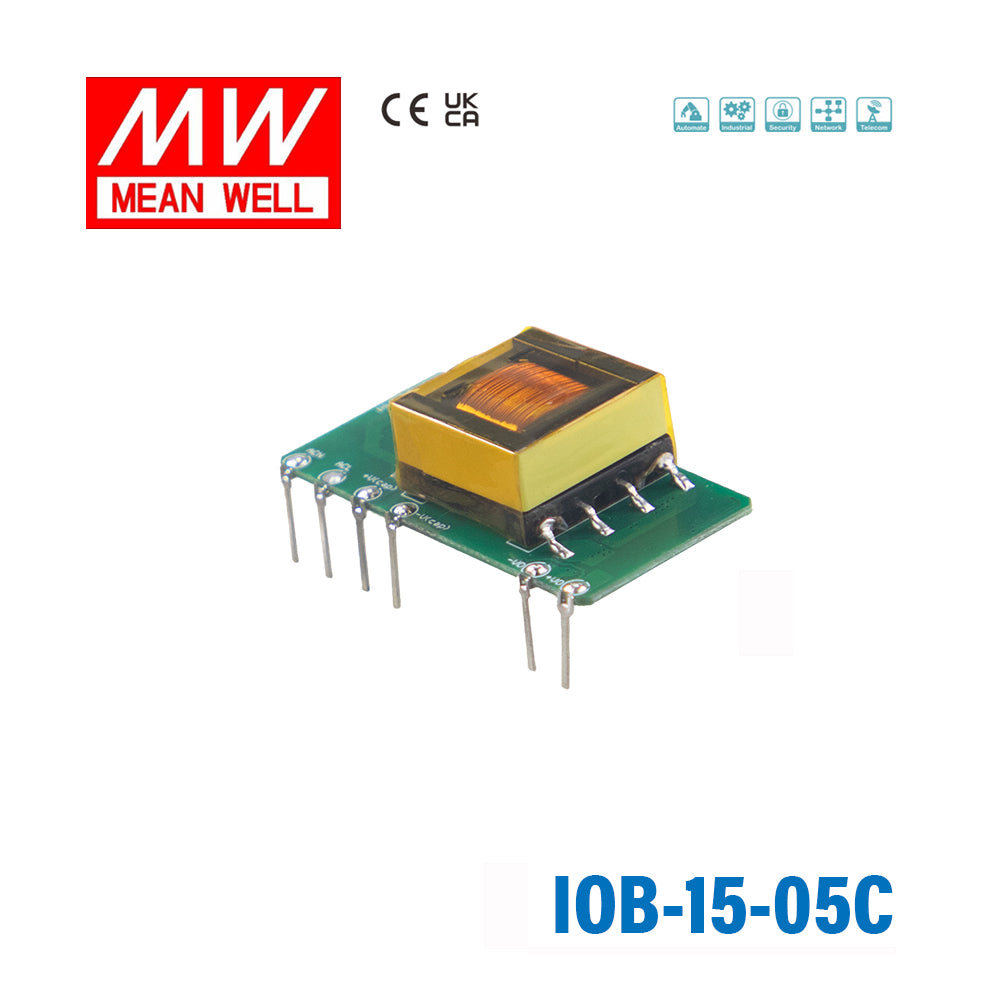

Mean Well IOB-15-05C AC-DC On Board Type Power Module 14W 5V, Vertical
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-05C AC-DC On Board Type Power Module 14W 5V, Vertical
Description
Description
Features:
- Assemble on the main PCB of the system
- 1.75"x0.86" compact size
- 85~305Vac input (277Vac available)
- No load power consumption <0.25W
- -40~85℃ wide operating temperature
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Safety Class Ⅱ
- 3 years warranty
General Specification:
Input Voltage
85 - 305Vac 100 - 430Vdc
Ripple and Noise
150mV
Short Circuit Protection
Protection type : Continuous, automatic recovery, Hiccup mode
Inrush Current
18A/115Vac 35A/230Vac
Over Load Protection
>110% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection
9Vdc | 9Vdc | 12Vdc | 16Vdc | 20Vdc | 30Vdc
Protection type: Output voltage clamp
Withstand Voltage
I/P-O/P:3KVac leakage current <5mA
Working Temperature
-40 - +85℃ (Refer to "Derating Curve")
Safety Standard
LVD IEC62368-1 approved
Dimension (LxWxH)
44.5 x 24 x 15mm (1.039 x 0.579 x 0.433 inch)
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating14 Watt
-
Output Voltage12 Volt
-
Rated Current2.8 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-05C designed for?
The IOB-15-05C is an AC-DC on-board power module intended to be assembled on a system’s main PCB. It is suited to compact embedded equipment where a small vertical power module is preferred over a larger enclosed supply.
What are the key electrical specs of the IOB-15-05C?
Based on the provided product data, this model is rated at 14W with a listed output of 12V and 2.8A. It accepts a wide 85-305Vac input range and also supports 100-430Vdc input, which helps it fit equipment used across varied power environments.
How compact is this power module?
This is a compact vertical on-board module with dimensions of 44.5 x 24 x 15 mm. Its small footprint makes it a practical choice for space-constrained industrial and OEM designs.
Can the IOB-15-05C be used in demanding temperature conditions?
Yes. The specified operating temperature range is -40°C to +85°C, so it is appropriate for equipment that needs to run in both cold and hot environments. Cooling is by free air convection, with no fan requirement stated in the product data.
What protection and safety features does the IOB-15-05C include?
This module includes short circuit, overload, and over voltage protection. It is listed as Safety Class II and approved to IEC62368-1, which supports use in regulated commercial and industrial equipment designs.
Is the IOB-15-05C a good fit for globally deployed equipment?
It can be a strong fit for globally deployed products because of its broad 85-305Vac input range. That wide input range helps the same module support equipment intended for regions with different mains voltages, including applications where 277Vac availability matters.
