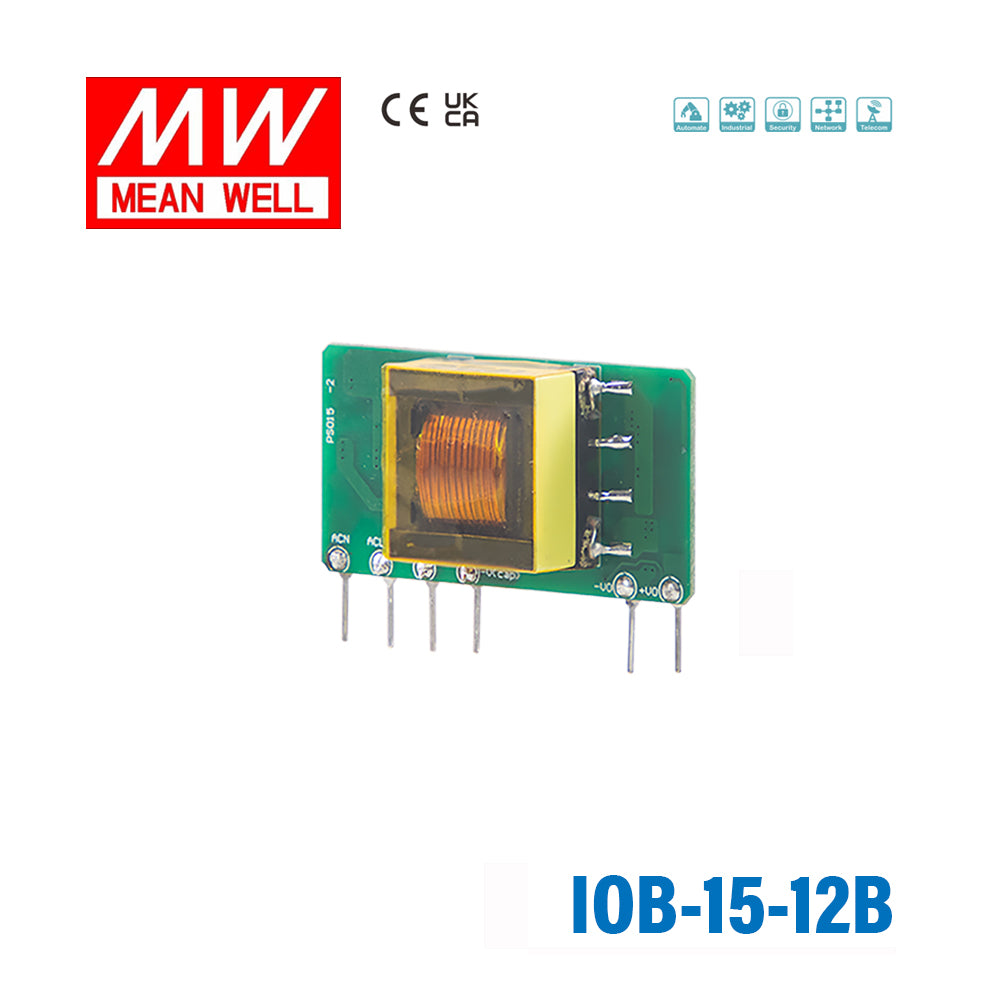

Mean Well IOB-15-12B AC-DC On Board Type Power Module 15W 12V, Horizontal
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-12B AC-DC On Board Type Power Module 15W 12V, Hori...
Description
Description
Features:
- Assemble on the main PCB of the system
- 1.75"x0.86" compact size
- 85~305Vac input (277Vac available)
- No load power consumption <0.25W
- -40~85℃ wide operating temperature
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Safety Class Ⅱ
- 3 years warranty
General Specification:
Input Voltage
85 - 305Vac 100 - 430Vdc
Ripple and Noise
150mV
Short Circuit Protection
Protection type : Continuous, automatic recovery, Hiccup mode
Inrush Current
18A/115Vac 35A/230Vac
Over Load Protection
>110% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection
9Vdc | 9Vdc | 12Vdc | 16Vdc | 20Vdc | 30Vdc
Protection type: Output voltage clamp
Withstand Voltage
I/P-O/P:3KVac leakage current <5mA
Working Temperature
-40 - +85℃ (Refer to "Derating Curve")
Safety Standard
LVD IEC62368-1 approved
Dimension (LxWxH)
44.5 x 24 x 15mm (1.039 x 0.579 x 0.433 inch)
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage9 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-12B designed for?
The IOB-15-12B is an AC-DC on-board power module intended for systems that need a compact embedded power supply. It is built to be assembled on the main PCB and is suited to space-constrained commercial or industrial equipment where a low-profile internal power module is needed.
What are the key electrical specifications of the IOB-15-12B?
This model is rated for 15W output power and accepts a wide 85 to 305Vac input range, with 100 to 430Vdc input also listed. It features low no-load power consumption below 0.25W and ripple and noise specified at 150mV.
Is the IOB-15-12B suitable for demanding temperature conditions?
Yes. The specified operating temperature range is -40 to +85 degrees C, which makes it suitable for equipment exposed to both cold and elevated ambient conditions. Cooling is by free air convection, so it is intended for designs that rely on passive thermal management.
What protection features are included in the IOB-15-12B?
The module includes short circuit, overload, and over voltage protection. Short circuit protection is continuous with automatic recovery in hiccup mode, and overload protection recovers automatically after the fault condition is removed.
How compact is the Mean Well IOB-15-12B?
The listed dimensions are 44.5 x 24 x 15 mm, making it a compact choice for on-board power conversion. Its small footprint is one of the main differentiators for designs where PCB space is limited.
What compliance and insulation characteristics does this module offer?
The IOB-15-12B is listed as Safety Class II and approved to LVD IEC62368-1. It also specifies 3KVac withstand voltage from input to output, with leakage current below 5mA.
