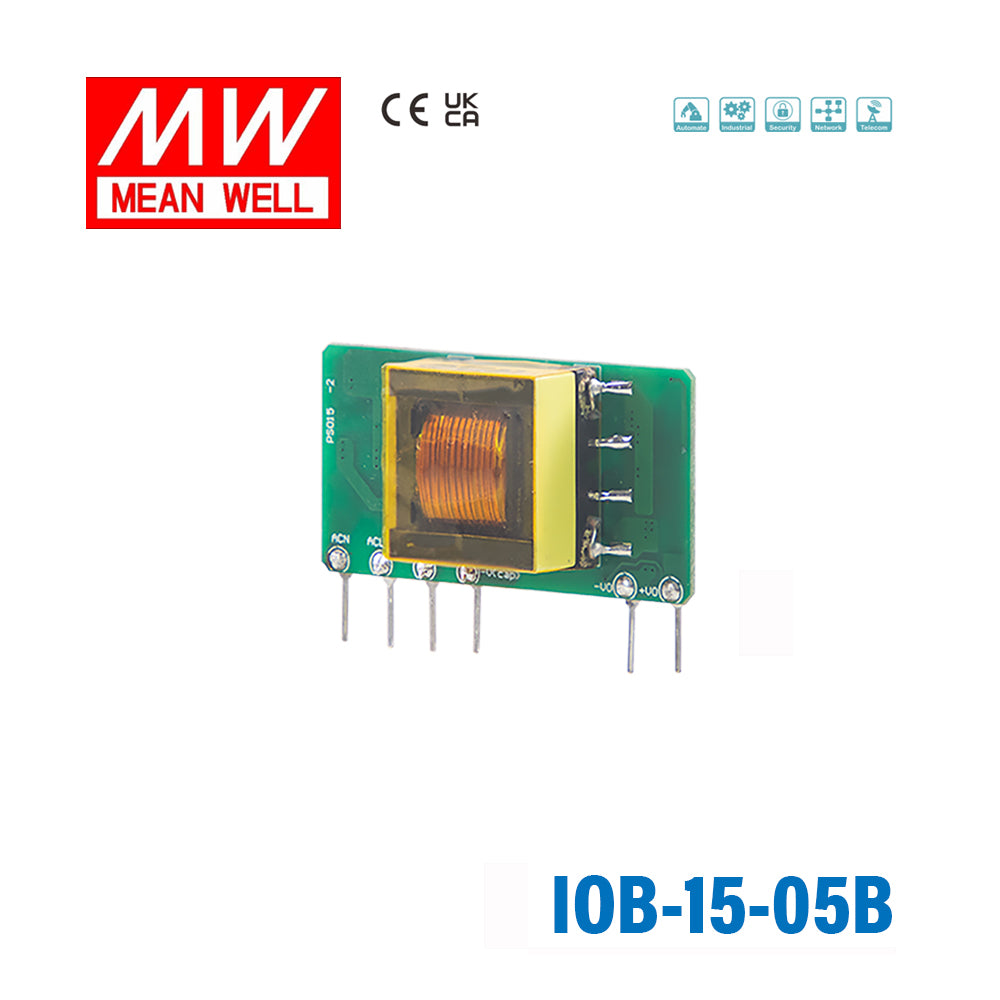

Mean Well IOB-15-05B AC-DC On Board Type Power Module 14W 5V, Horizontal
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-05B AC-DC On Board Type Power Module 14W 5V, Horiz...
Description
Description
Features:
- Assemble on the main PCB of the system
- 1.75"x0.86" compact size
- 85~305Vac input (277Vac available)
- No load power consumption <0.25W
- -40~85℃ wide operating temperature
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Safety Class Ⅱ
- 3 years warranty
General Specification:
Input Voltage
85 - 305Vac 100 - 430Vdc
Ripple and Noise
150mV
Short Circuit Protection
Protection type : Continuous, automatic recovery, Hiccup mode
Inrush Current
18A/115Vac 35A/230Vac
Over Load Protection
>110% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection
9Vdc | 9Vdc | 12Vdc | 16Vdc | 20Vdc | 30Vdc
Protection type: Output voltage clamp
Withstand Voltage
I/P-O/P:3KVac leakage current <5mA
Working Temperature
-40 - +85℃ (Refer to "Derating Curve")
Safety Standard
LVD IEC62368-1 approved
Dimension (LxWxH)
44.5 x 24 x 15mm (1.039 x 0.579 x 0.433 inch)
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating14 Watt
-
Output Voltage3.3 Volt
-
Rated Current2.8 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of applications is the Mean Well IOB-15-05B best suited for?
The IOB-15-05B is designed for embedded power use inside OEM and industrial equipment where a compact on-board AC-DC module is preferred. It is a practical fit for space-constrained control boards, monitoring devices, and other PCB-based systems that need a low-power isolated supply.
What input range does the IOB-15-05B support?
This model supports a wide 85 to 305Vac input range and also accepts 100 to 430Vdc. That broad range makes it suitable for equipment intended for global input conditions rather than a single local mains standard.
Is the IOB-15-05B a good choice for compact product designs?
Yes. Mean Well specifies this module as an on-board type power supply with a compact 44.5 x 24 x 15 mm body, making it suitable where PCB area and enclosure space are limited. Its horizontal form factor also helps when height and layout matter in dense assemblies.
Can the IOB-15-05B operate in harsh temperature conditions?
This model is rated for a wide operating temperature range of -40 to +85 C, subject to the manufacturer's derating guidance. That makes it better suited than many general-purpose modules for equipment exposed to cold starts or elevated internal temperatures.
What protection features are included on the IOB-15-05B?
The IOB-15-05B includes short circuit, overload, and overvoltage protection. Mean Well specifies automatic recovery behavior, with hiccup-mode protection for short circuit and overload conditions and output-voltage clamp protection for overvoltage.
How efficient is the IOB-15-05B when the equipment is idle or lightly loaded?
A key advantage of this module is its low no-load power consumption of less than 0.25W. That helps reduce standby energy use in equipment that spends long periods powered but not actively drawing much load.
What certifications or safety characteristics does the IOB-15-05B offer?
Mean Well lists this model as Safety Class II and states compliance with IEC62368-1 under LVD approval. It also has 3KVac input-to-output withstand voltage and is backed by a 3-year warranty.
