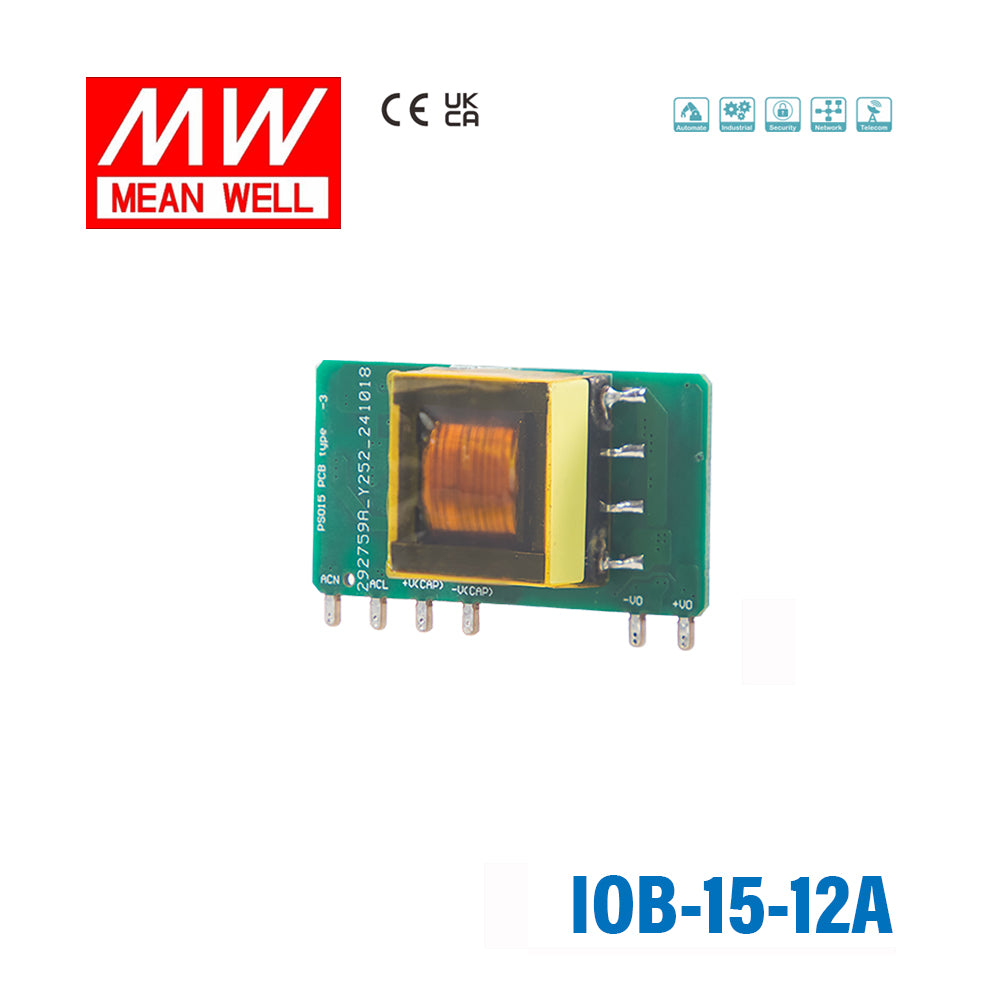

Mean Well IOB-15-12A AC-DC On Board Type Power Module 15W 12V, Gold Finger PCB
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-12A AC-DC On Board Type Power Module 15W 12V, Gold...
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-12A designed for?
The IOB-15-12A is an AC-DC on-board power module for OEM and embedded equipment that needs a regulated 12V output. It is intended to mount on a system PCB and provide up to 15W of power in a compact module format. This makes it suitable for space-constrained industrial and electronic designs.
What are the main electrical ratings of the IOB-15-12A?
This model is rated for 15W output power and provides a 12V DC output at up to 1.25A. It accepts a wide 85 to 305Vac input range, and it can also operate from 100 to 430Vdc input. Ripple and noise are specified at 150mV.
Is the IOB-15-12A suitable for harsh temperature environments?
The IOB-15-12A is specified for operation from -40°C to +85°C, which is a wide temperature range for industrial applications. It is cooled by free air convection, so it is intended for designs that do not rely on forced-air cooling. Buyers should still check their enclosure and derating conditions against the application.
What protections are built into the IOB-15-12A?
This model includes short circuit, overload, and over voltage protection. Short circuit and overload protection use hiccup mode with automatic recovery after the fault is removed. Over voltage protection is implemented as an output voltage clamp.
How is the IOB-15-12A different from a larger enclosed power supply?
The IOB-15-12A is built as an on-board module with a gold finger PCB format rather than a larger enclosed chassis-style supply. Its compact 44.5 x 24 x 15mm size is intended for integration inside the end system where board space matters. It is a better fit for embedded designs that need internal power conversion without adding a bulkier standalone supply.
What should buyers check for compatibility before selecting the IOB-15-12A?
The main compatibility points are whether the equipment needs a regulated 12V output and whether 15W total output power is sufficient. Buyers should also confirm that the available input source falls within the 85 to 305Vac or 100 to 430Vdc range. For compliance-sensitive projects, this model is approved to IEC62368-1 and is Safety Class II.
