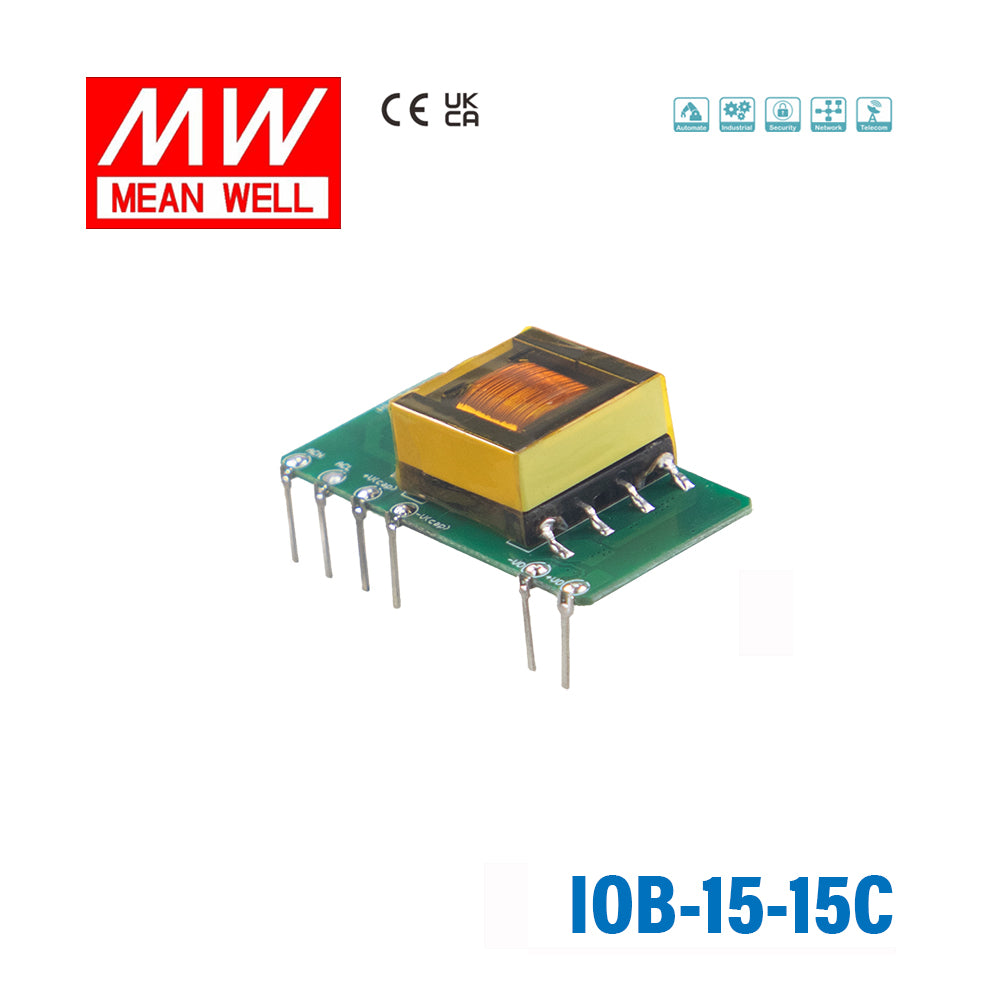

Mean Well IOB-15-15C AC-DC On Board Type Power Module 15W 15V, Vertical
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-15C AC-DC On Board Type Power Module 15W 15V, Vert...
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kind of applications is the Mean Well IOB-15-15C designed for?
The IOB-15-15C is an on-board AC-DC power module intended to be assembled directly on the main PCB of a system. It is suited to compact embedded equipment where a small footprint, internal power conversion, and low no-load power consumption are important.
What are the key electrical characteristics of this power module?
This model is rated for 15W output power and accepts a wide 85 to 305Vac input range, with 100 to 430Vdc input also listed. It also features low no-load power consumption of less than 0.25W and ripple and noise specified at 150mV.
Is the IOB-15-15C suitable for harsh temperature environments?
Yes. The specified operating temperature range is -40°C to +85°C, which makes it suitable for equipment that may face cold starts or elevated internal temperatures. Thermal performance should still be evaluated against the product's derating curve in the final application.
What protections are built into the IOB-15-15C?
The module includes short circuit, overload, and over voltage protection. Short circuit and overload protection use hiccup mode with automatic recovery after the fault condition is removed, and over voltage protection is listed as output voltage clamp.
How compact is this module compared with larger enclosed power supplies?
The IOB-15-15C is much smaller than a typical enclosed AC-DC power supply because it is built as a PCB-mount module. Its dimensions are 44.5 x 24 x 15mm, making it a fit for space-constrained designs that need integrated power conversion.
What compliance and reliability details are listed for this model?
This module is listed as Safety Class II and approved to IEC62368-1 for LVD safety. It also carries a 3-year warranty, which supports use in commercial and industrial electronic equipment where long-term reliability matters.
