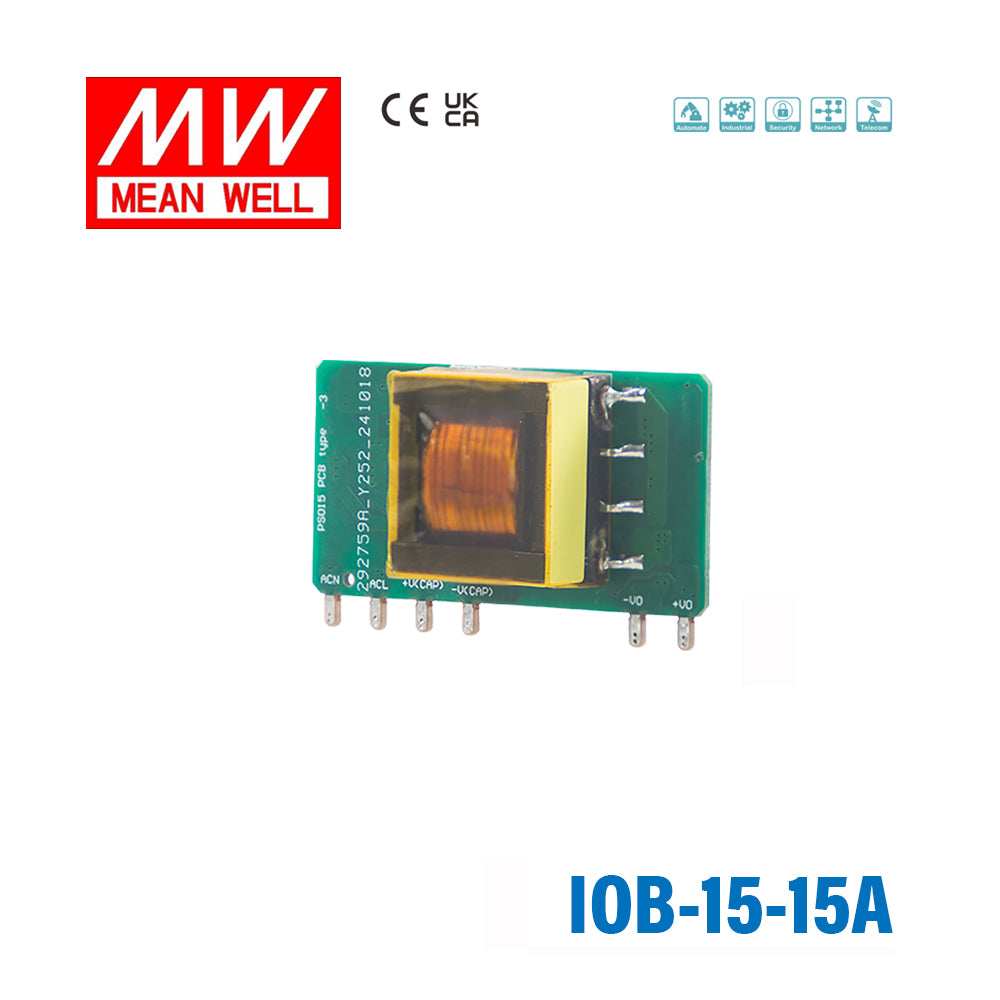

Mean Well IOB-15-15A AC-DC On Board Type Power Module 15W 15V, Gold Finger PCB
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-15A AC-DC On Board Type Power Module 15W 15V, Gold...
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-15A designed for?
The IOB-15-15A is a 15W AC-DC on-board power module intended for use inside OEM and industrial equipment. It is built to be assembled onto a system's main PCB and provides a regulated 15V DC output for embedded power applications.
What are the main electrical ratings of the IOB-15-15A?
This model is rated for 15W total output power and provides a 15V DC output at 1A rated current. Its input range is 85 to 305Vac, and it also supports 100 to 430Vdc input.
Is the IOB-15-15A suitable for wide input voltage applications?
Yes. The IOB-15-15A supports a wide 85 to 305Vac input range, which makes it suitable for equipment used across varied mains environments. The product data also notes 277Vac availability within that broad operating range.
Can the IOB-15-15A operate in harsh temperature conditions?
This module is specified for operation from -40°C to +85°C, making it suitable for demanding industrial and enclosed equipment environments. Performance at temperature extremes should be evaluated with the published derating guidance for the series.
What protection features are included in the IOB-15-15A?
The IOB-15-15A includes short circuit, overload, and over voltage protection. Short circuit and overload protection use automatic recovery behavior, with hiccup-mode protection described in the specifications.
How compact is the Mean Well IOB-15-15A?
This is a compact on-board module with dimensions of 44.5 x 24 x 15 mm. The description also highlights its small footprint for space-conscious system designs.
What compliance and efficiency-related features does the IOB-15-15A offer?
The module is approved to IEC62368-1 and is listed as Safety Class II. It also features low no-load power consumption of less than 0.25W and uses free air convection cooling, which supports efficient operation in embedded designs.
