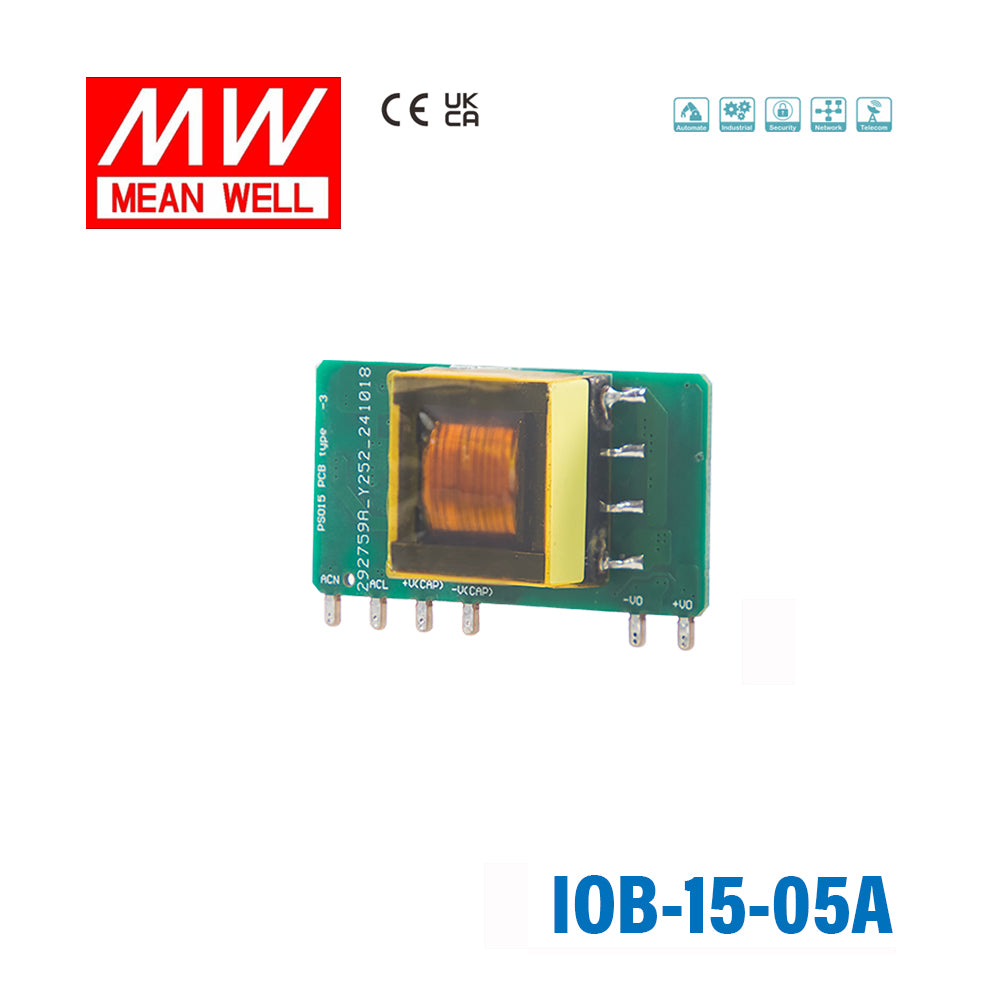

Mean Well IOB-15-05A AC-DC On Board Type Power Module 14W 5V, Gold Finger PCB
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well IOB-15-05A AC-DC On Board Type Power Module 14W 5V, Gold ...
Description
Description
Key Features
- ✓Assemble on the main PCB of the system
- ✓1.75"x0.86" compact size
- ✓85~305Vac input (277Vac available)
- ✓No load power consumption <0.25W
- ✓-40~85℃ wide operating temperature
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Safety Class Ⅱ
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well IOB Series
-
Power Rating14 Watt
-
Output Voltage5 Volt
-
Rated Current2.8 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.75 in
-
Width0.98 in
-
Height0.59 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IOB-15-05A used for?
The IOB-15-05A is an on-board AC-DC power module designed to provide a regulated 5V DC output in compact embedded equipment. It is intended for systems that need a small PCB-mounted power supply with 14W output capacity and low no-load power consumption.
What are the key electrical ratings of the IOB-15-05A?
This model is rated for 14W total output power and provides a single 5V DC output. Its rated output current is 2.8A, and it accepts a wide 85 to 305Vac input range or 100 to 430Vdc.
Is the IOB-15-05A suitable for wide input voltage applications?
Yes. The IOB-15-05A supports a wide universal input range of 85 to 305Vac, which makes it suitable for equipment used across different AC supply conditions. The product description also notes 277Vac availability.
Can the IOB-15-05A operate in demanding temperature environments?
This model is specified for operation from -40°C to +85°C, making it suitable for a broad range of industrial and enclosed equipment environments. Performance at higher temperatures should be considered with reference to the product's derating curve.
What protection features are included in the IOB-15-05A?
The IOB-15-05A includes short circuit, overload, and over voltage protection. Short circuit and overload protection use hiccup mode with automatic recovery after the fault condition is removed, while over voltage protection uses output voltage clamp protection.
How compact is the Mean Well IOB-15-05A?
The module measures 44.5 x 24 x 15 mm, making it a compact choice for space-constrained designs. Its product description also highlights the small footprint as approximately 1.75 by 0.86 inches.
Does the IOB-15-05A support energy-efficient standby operation?
Yes. The no-load power consumption is specified as less than 0.25W, which helps reduce standby power draw in equipment that remains powered for long periods. This can be useful in designs where efficiency and idle consumption matter.
What safety and compliance information is available for the IOB-15-05A?
The IOB-15-05A is described as Safety Class II and is approved to LVD IEC62368-1. It also specifies 3KVac input-to-output withstand voltage with leakage current below 5mA.
