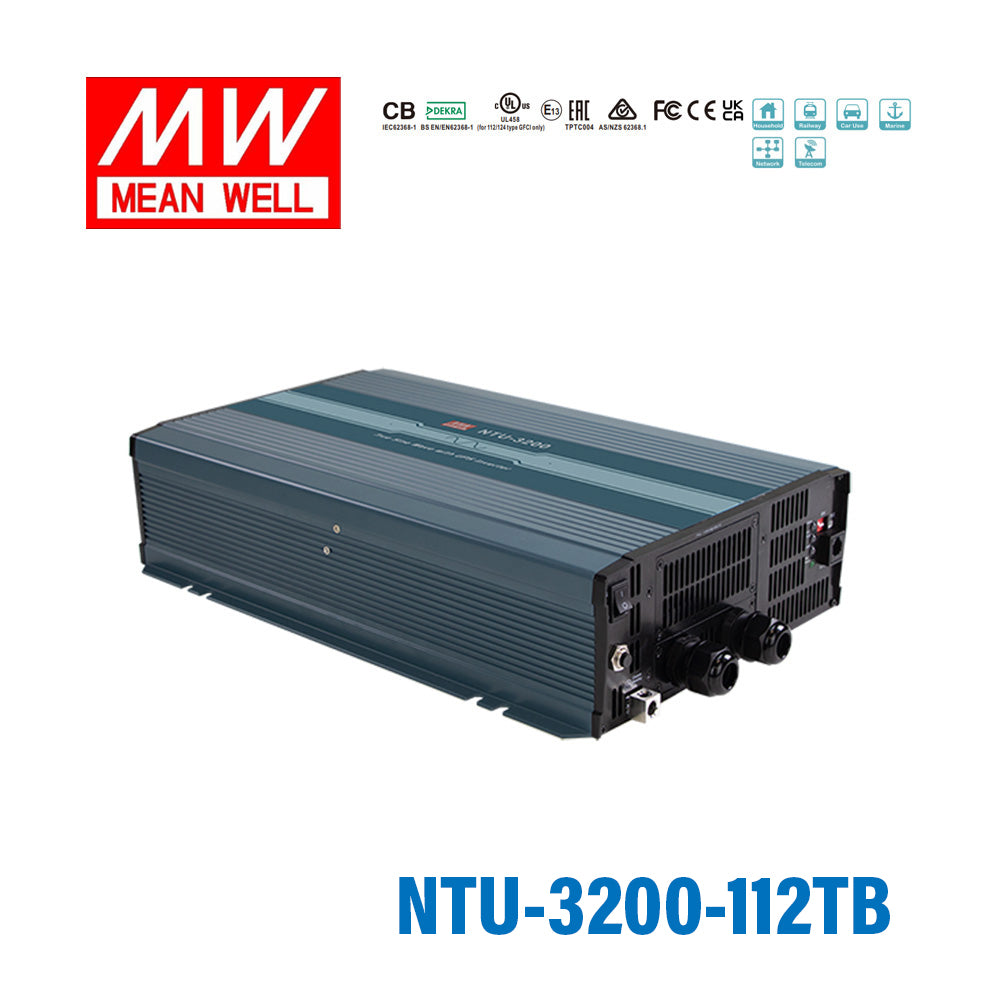

Mean Well NTU-3200-112TB True Sine Wave DC-AC Inverter 3200W 110V out 12V in with TB Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-112TB True Sine Wave DC-AC Inverter 3200W 110V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage110 Volt
-
Input Voltage10V~16.5V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
Frequently Asked Questions
What is the Mean Well NTU-3200-112TB used for?
The NTU-3200-112TB is a 3200W true sine wave DC-AC inverter designed for applications that need 110V AC output from a 12V DC source. It is suited to commercial, industrial, vehicle, backup power, and mobile power system use where clean AC power and higher surge capability matter.
What are the main electrical specifications of the NTU-3200-112TB?
This model is rated for 3200W continuous output and provides 110V AC output from a 12V DC input. It uses a true sine wave output with THD below 3%, and it can deliver surge power up to 6400W for demanding startup loads.
Does the NTU-3200-112TB support AC by-pass or UPS-style operation?
Yes. The NTU-3200-112TB includes a built-in UPS function with AC by-pass capability. That makes it a stronger fit for systems where continuity of AC power is important compared with a basic inverter without by-pass support.
What types of batteries is the NTU-3200-112TB compatible with?
Mean Well specifies that this inverter is suitable for lead-acid or lithium-ion batteries. It also includes battery over-discharge protection through a low-voltage disconnect function to help protect the DC power source.
Can the AC output settings be adjusted on this inverter?
Yes. The AC output voltage and frequency are selectable by DIP switch, and the general specification lists selectable AC voltage ranges including 100/110/115/120VAC and 200/220/230/240VAC. For this specific model, the named version is the 110V output variant.
Is the NTU-3200-112TB suitable for demanding environments?
It is built for wide-temperature operation, with a listed working range up to +70°C and low-temperature operation down to the negative range shown in the specifications. The unit also includes conformal coating and a temperature-controlled cooling fan, which support use in harsher operating conditions.
What protection and certification features does the NTU-3200-112TB include?
This inverter includes protection for short circuit, overload, over voltage, and battery over-discharge. It is also listed with multiple safety and compliance approvals, including IEC62368-1, EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1.
Are remote control or communication accessories available for the NTU-3200-112TB?
Yes. Mean Well lists optional remote controllers including IRC1, IRC2, and IRC3, and the unit also supports RS-232 communication using a separately sold cable. A carry handle accessory is available as well for applications where portability matters.
