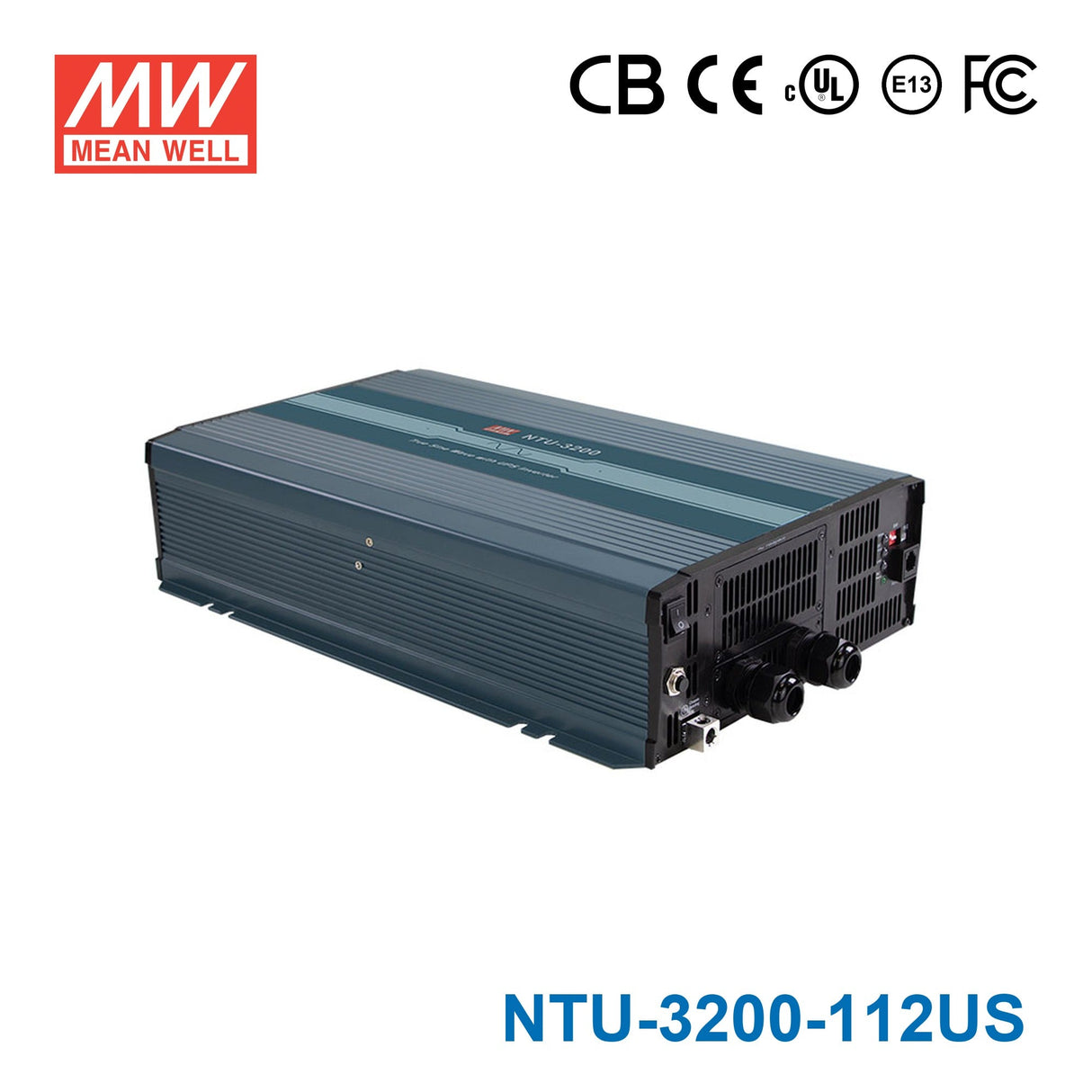

Mean Well NTU-3200-112US True Sine Wave DC-AC Inverter 3200W 110V out 12V in with US Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-112US True Sine Wave DC-AC Inverter 3200W 110V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage110 Volt
-
Input Voltage10V~16.5V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
Frequently Asked Questions
What is the main use case for the Mean Well NTU-3200-112US inverter?
The NTU-3200-112US is a 3200W true sine wave DC-AC inverter designed for applications that need 110V AC output from a 12V DC source. It is suited to commercial, industrial, mobile, and backup power scenarios where sensitive AC equipment benefits from a low-distortion sine wave output.
Does this model provide pure sine wave output for sensitive equipment?
Yes. The NTU-3200-112US provides true sine wave output with total harmonic distortion below 3%, which makes it a better fit for electronics and equipment that expect utility-like AC power. This distinguishes it from modified sine wave inverters used in less demanding applications.
What are the input and output ratings of the NTU-3200-112US?
This model is rated for 3200W continuous power, with 12V DC input and 110V AC output in this US version. It also supports high surge power up to 6400W for short-duration demand. AC output voltage and frequency are selectable by DIP switch within the listed supported ranges.
Does the NTU-3200-112US include an AC by-pass or UPS-style function?
Yes. This inverter includes a built-in UPS function with AC by-pass capability, which is one of the key differentiators of the NTU series. For buyers comparing models, that means it is intended for applications where continuity of AC power is important.
What battery types is the NTU-3200-112US compatible with?
According to the product data, this model is suitable for use with lead-acid or lithium-ion batteries. It also includes battery over-discharge protection through low-voltage disconnect, which helps protect the connected battery system.
Can this inverter be used in demanding temperature conditions?
Yes. The NTU-3200-112US is specified for wide-temperature operation up to 70°C, and the product description lists a broad operating range intended for harsher environments. It also uses a temperature-controlled cooling fan and conformal coating to support durability in challenging conditions.
What protection and status features are included on this model?
The NTU-3200-112US includes protection for short circuit, overload, and over voltage, along with battery over-discharge protection. It also has front-panel operation status indicators and supports remote on/off control, which can be useful in managed power systems.
What certifications and warranty does the NTU-3200-112US have?
This model is listed with approvals including IEC62368-1, EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1, with EMC compliance including EN55032 Class A. Mean Well specifies a 3-year warranty for this inverter.
