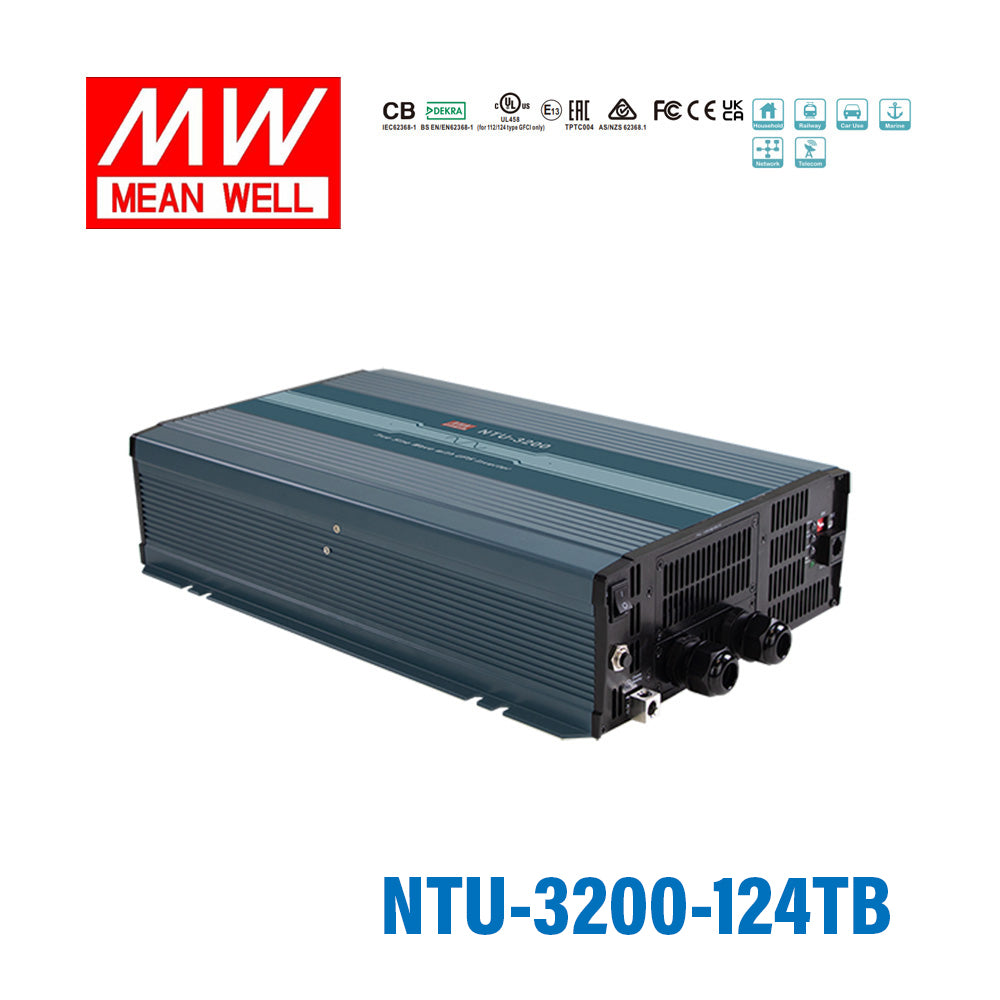

Mean Well NTU-3200-124TB True Sine Wave DC-AC Inverter 3200W 110V out 24V in with TB Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-124TB True Sine Wave DC-AC Inverter 3200W 110V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage110 Volt
-
Input Voltage20V~33V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
Frequently Asked Questions
What is the main use case for the Mean Well NTU-3200-124TB inverter?
The NTU-3200-124TB is designed for converting 24V DC power into 110V AC power for demanding equipment and systems. Its 3200W continuous output and true sine wave waveform make it suitable for commercial, industrial, and mobile power applications where stable AC output is important.
Does this inverter produce true sine wave output?
Yes. The NTU-3200-124TB provides true sine wave AC output with total harmonic distortion below 3%, which helps support equipment that is sensitive to waveform quality. This makes it a better fit than modified sine wave units for many professional and electronic loads.
What input and output voltage does this model support?
This model is built for 24V DC input and 110V AC nominal output. According to the specification, the AC output voltage can be selected by DIP switch within a wider range that includes 100/110/115/120VAC, along with 200/220/230/240VAC options listed in the general specification.
Does the NTU-3200-124TB include an AC bypass or UPS function?
Yes. This model includes a built-in UPS function with AC by-pass capability, which is one of its key differentiators in the NTU series. That makes it suitable for applications where continuity between available AC source and inverter operation is important.
Can this inverter handle startup surges above its rated power?
Yes. The NTU-3200-124TB is rated for 3200W continuous output and supports surge power up to 6400W. This added headroom can be important for loads that draw a higher surge briefly during startup.
Is this inverter compatible with both lead-acid and lithium-ion battery systems?
Yes. Mean Well specifies this model as suitable for both lead-acid and li-ion batteries. It also includes battery over-discharge protection with low voltage disconnect to help protect the connected battery system.
What operating environment is this inverter designed for?
The unit is designed for wide-temperature operation, with a stated working range up to -25°C to +70°C in the product description and derating guidance referenced in the specification. It also includes a temperature-controlled cooling fan and conformal coating, which support use in tougher operating environments.
What certifications and warranty does this model include?
The NTU-3200-124TB is listed with multiple safety approvals including IEC62368-1, EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1, along with EMC compliance such as EN55032 Class A. Mean Well also specifies a 3-year warranty for this model.
