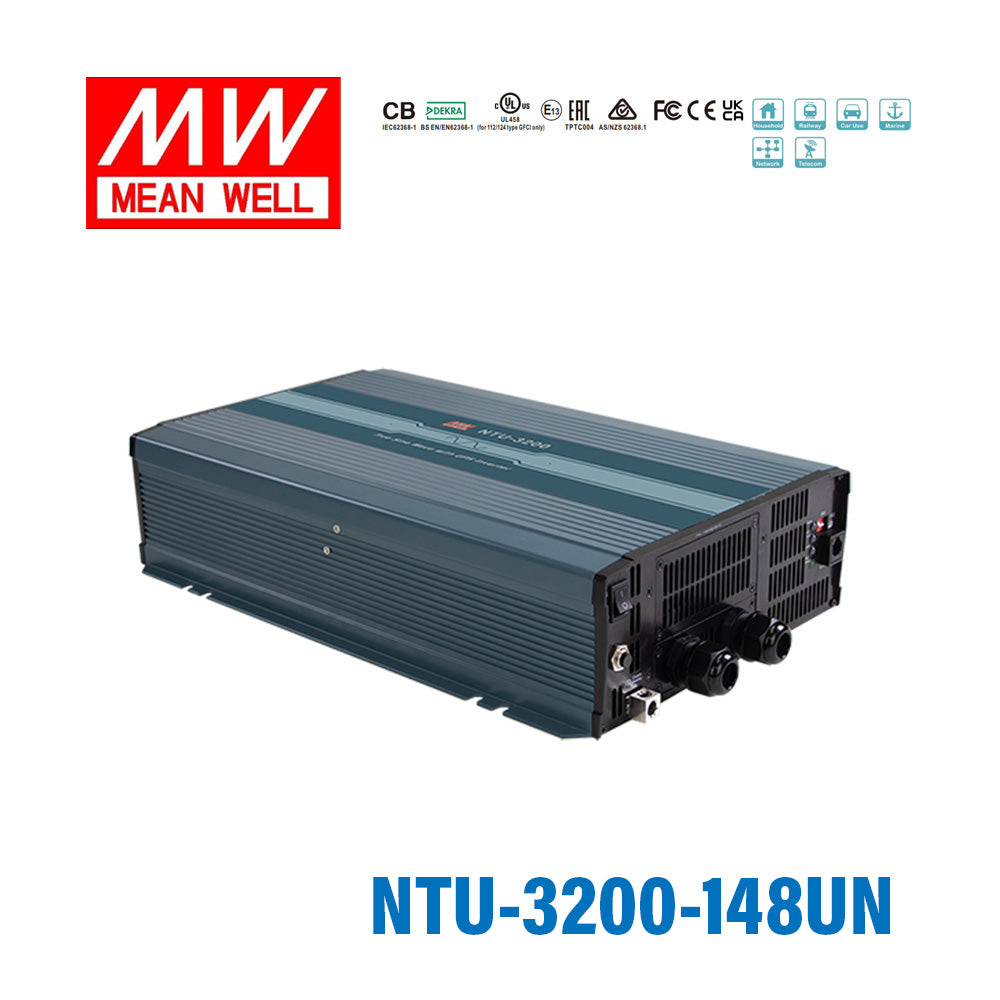

Mean Well NTU-3200-148UN True Sine Wave DC-AC Inverter 3200W 110V out 48V in with UN Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-148UN True Sine Wave DC-AC Inverter 3200W 110V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage110 Volt
-
Input Voltage40V~66V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
Frequently Asked Questions
What is the Mean Well NTU-3200-148UN designed for?
The NTU-3200-148UN is a 3200W true sine wave DC-AC inverter built for converting 48V DC input to 110V AC output. It is suited to demanding power conversion applications where clean AC output and high continuous power are important. This model also includes an AC by-pass function for UPS-style operation.
Does this inverter produce true sine wave output?
Yes. The NTU-3200-148UN provides true sine wave AC output with total harmonic distortion below 3%. That makes it a better fit for sensitive electronics and equipment that perform best with cleaner power.
What input and output voltage does this model use?
This model is a 48V DC input inverter with 110V AC output. The general specification also lists selectable AC output voltage ranges by DIP switch, including 100/110/115/120VAC and 200/220/230/240VAC options. The product title specifically identifies this version as 110V out.
How much surge capacity does the NTU-3200-148UN support?
The NTU-3200-148UN is rated for 3200W continuous output and supports surge power up to 6400W. That higher short-duration surge capability helps it handle startup demands from equipment that briefly draws more than its normal running load.
Is this inverter compatible with different battery chemistries?
Yes. Mean Well specifies that the NTU-3200-148UN is suitable for lead-acid or lithium-ion batteries. Buyers evaluating battery compatibility should still confirm the broader system voltage and protection requirements match their application.
Can this inverter be used in demanding environmental conditions?
This model is built for wide-temperature operation, with a listed working range up to +70°C and product data highlighting operation down to sub-zero temperatures. It also includes conformal coating and a temperature-controlled cooling fan, which support use in harsher industrial or mobile environments.
What protection and monitoring features are included?
The NTU-3200-148UN includes protection for short circuit, overload, and over voltage, along with battery over-discharge protection through low voltage disconnect. It also has front panel status indicators and supports remote on/off control. Optional accessories are available for remote control and RS-232 communication.
