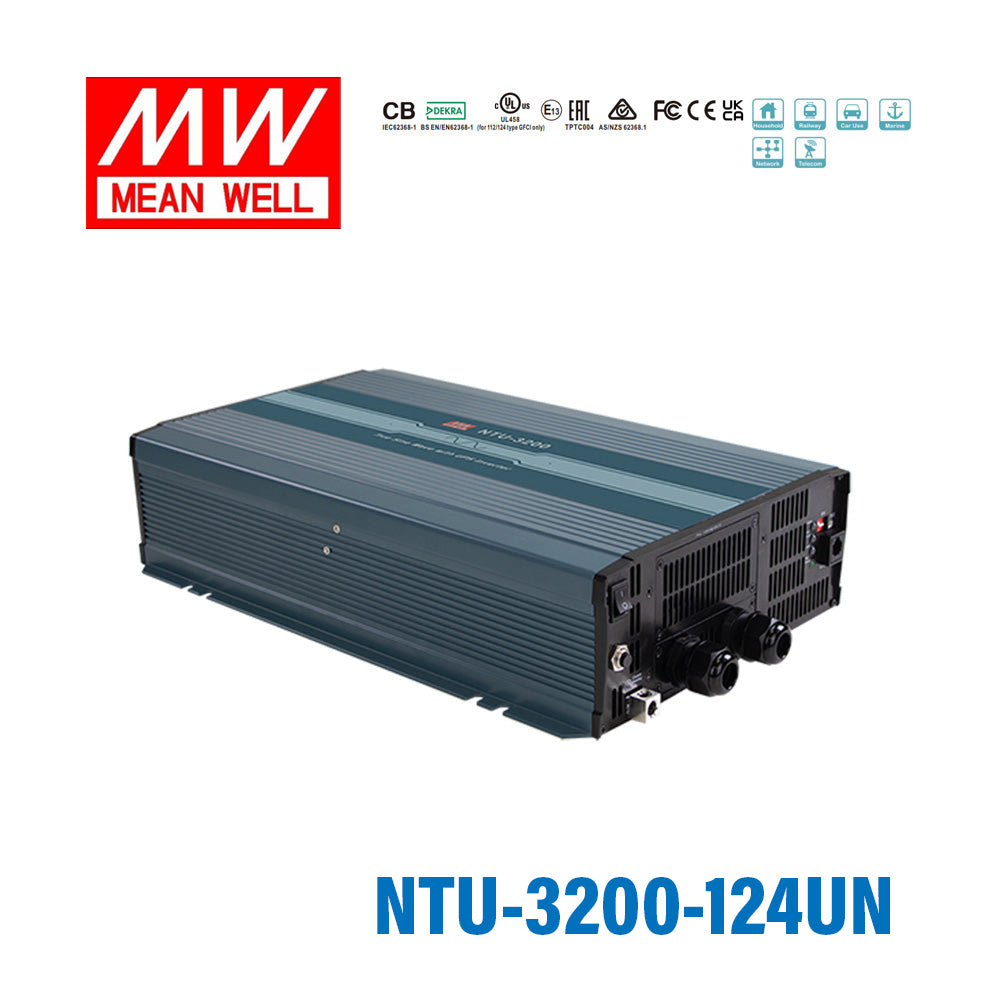

Mean Well NTU-3200-124UN True Sine Wave DC-AC Inverter 3200W 110V out 24V in with UNSocket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-124UN True Sine Wave DC-AC Inverter 3200W 110V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage110 Volt
-
Input Voltage20V~33V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
Frequently Asked Questions
What is the main use case for the Mean Well NTU-3200-124UN?
The NTU-3200-124UN is a 3200W true sine wave DC-AC inverter designed for converting 24V DC battery power to 110V AC output. It is suited to higher-power mobile, backup power, industrial, and off-grid applications where clean AC output and UPS-style AC by-pass are important.
Does this inverter support UPS or AC by-pass operation?
Yes. This model includes a built-in UPS function with AC by-pass, which is one of its key differentiators in the NTU series. That makes it a stronger fit for applications that need continuity between battery-backed inverter power and incoming AC power.
Is the NTU-3200-124UN suitable for sensitive electronics?
Yes, this model provides a true sine wave output with total harmonic distortion below 3%. That cleaner waveform is generally preferred for sensitive electronic equipment compared with rougher modified sine wave alternatives.
What battery types is the NTU-3200-124UN compatible with?
According to the product specifications, this inverter is suitable for both lead-acid and lithium-ion battery systems. It also includes battery over-discharge protection with low-voltage disconnect to help protect the connected battery bank.
How much surge capacity does this inverter provide?
The NTU-3200-124UN is rated for 3200W continuous power and supports surge power up to 6400W. The overload specification also notes 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.
Can this inverter be used in demanding environmental conditions?
This model is designed for wide-temperature operation, with the product information stating operation up to 70°C and low-temperature capability below freezing. It also includes conformal coating and a temperature-controlled cooling fan, which support use in tougher operating environments.
What certifications and protections does the NTU-3200-124UN include?
The listed protections include short circuit, overload, over-voltage, and battery over-discharge protection. The product information also cites approvals including IEC62368-1, EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1, along with EMC compliance to EN55032 Class A and related EN61000 standards.
