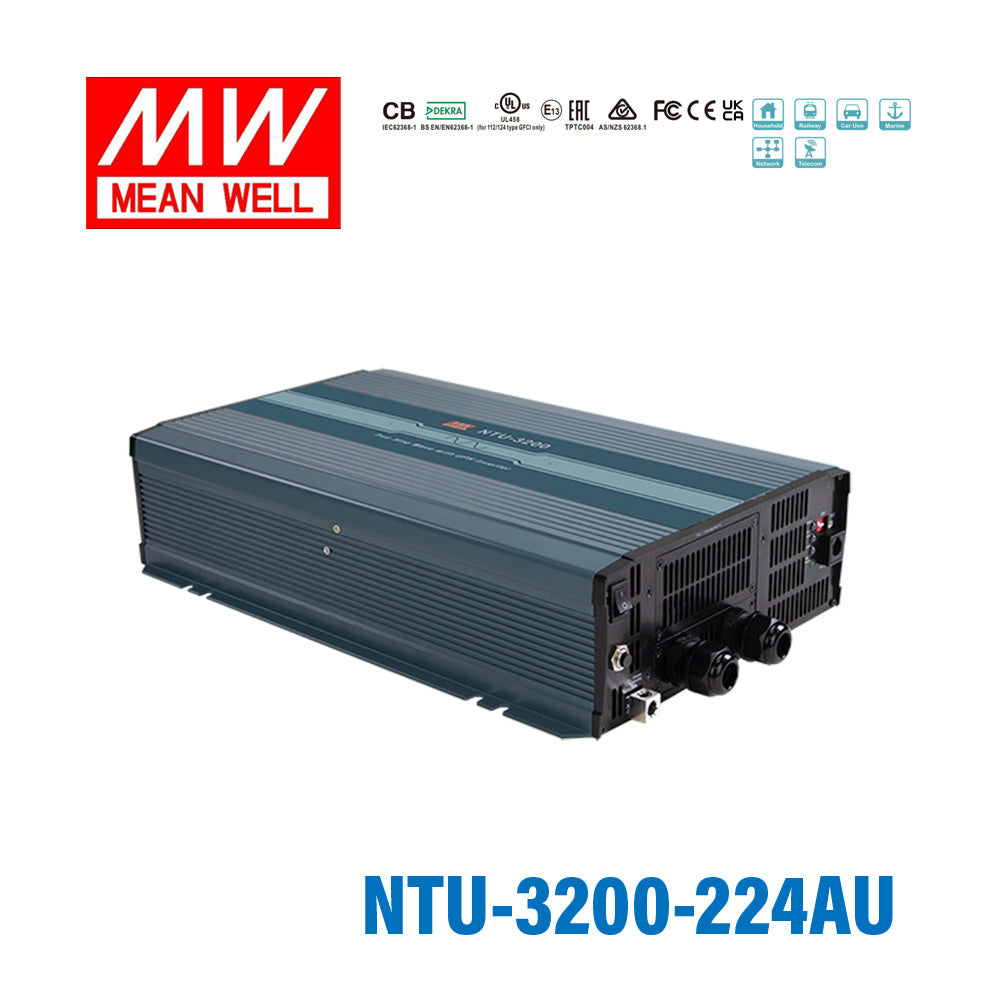

Mean Well NTU-3200-224AU True Sine Wave DC-AC Inverter 3200W 220V out 24V in with AU Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-224AU True Sine Wave DC-AC Inverter 3200W 220V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage220 Volt
-
Input Voltage20V~33V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
::specification::
Frequently Asked Questions
What is the Mean Well NTU-3200-224AU designed for?
The NTU-3200-224AU is a 3200W true sine wave DC-AC inverter for applications that need 220V-class AC output from a 24V DC source. It is suited to commercial, industrial, vehicle, and off-grid systems where clean AC power and higher surge capacity are important.
Does this inverter produce true sine wave output?
Yes. The NTU-3200-224AU provides a true sine wave AC output with total harmonic distortion below 3%, which makes it appropriate for equipment that is sensitive to output waveform quality. This is a key advantage over modified sine wave inverters when powering more demanding loads.
What are the input and output ratings of the NTU-3200-224AU?
This model is rated for 24V DC input and 3200W continuous output power. Its nominal output is 220V AC, and the AC output voltage can be selected by DIP switch across 100/110/115/120VAC or 200/220/230/240VAC ranges.
Does the NTU-3200-224AU support high startup or surge loads?
Yes. In addition to its 3200W continuous rating, it supports surge power up to 6400W. That makes it better suited for loads with higher startup demand than an inverter sized only for steady-state power.
What does the AC by-pass function do on this model?
The NTU-3200-224AU includes a built-in UPS function with AC by-pass. This feature is intended for systems that need transfer capability between inverter operation and AC source availability, making it more flexible than basic inverter-only models.
Is this inverter compatible with different battery chemistries?
Yes. Mean Well specifies this model as suitable for lead-acid or lithium-ion batteries. It also includes battery over-discharge protection through low-voltage disconnect to help protect the connected battery system.
Can this inverter be used in demanding environmental conditions?
It is designed for a wide operating temperature range, with the product information listing operation up to 70°C and low-temperature capability down to at least -20°C, with the general specification showing -25°C to +70°C. It also includes conformal coating and a temperature-controlled cooling fan for more demanding environments.
