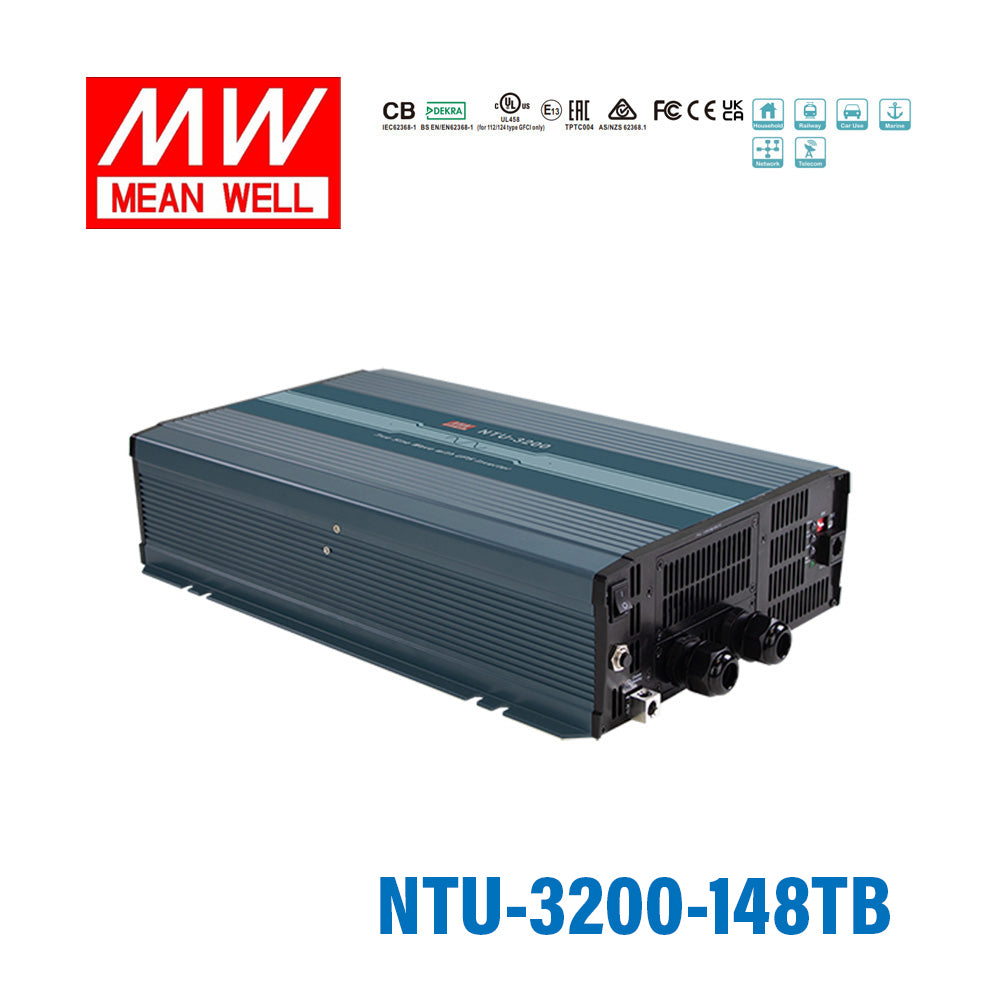

Mean Well NTU-3200-148TB True Sine Wave DC-AC Inverter 3200W 110V out 48V in with TB Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-148TB True Sine Wave DC-AC Inverter 3200W 110V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage110 Volt
-
Input Voltage40V~66V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
Frequently Asked Questions
What is the Mean Well NTU-3200-148TB designed for?
The NTU-3200-148TB is a 3200W true sine wave DC-AC inverter for applications that need 110V AC output from a 48V DC source. It is suited to professional and industrial use cases where clean AC power, high surge capacity, and UPS-style AC by-pass capability are important.
What kind of AC output does this inverter provide?
This model provides true sine wave AC output with total harmonic distortion below 3%. That makes it a better fit for equipment that benefits from cleaner power than modified sine wave alternatives.
Does the NTU-3200-148TB support surge loads?
Yes. In addition to its 3200W continuous power rating, it supports surge power up to 6400W. That helps accommodate equipment with higher startup demand for short periods.
Does this model include an AC by-pass or UPS function?
Yes, the NTU-3200-148TB has a built-in UPS function with AC by-pass. This is a key differentiator for buyers who need continuity of AC output in systems that use both DC battery power and AC source availability.
What battery types is the NTU-3200-148TB compatible with?
According to the product specifications, it is suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection through a low-voltage disconnect function.
Can the output voltage and frequency be selected on this inverter?
Yes. The AC output voltage and frequency are selectable by DIP switch, and the listed voltage range includes 100/110/115/120VAC and 200/220/230/240VAC options. For this specific model, the stated output is 110V AC.
Is the NTU-3200-148TB suitable for demanding environments?
It is built for wide-temperature operation, with a listed working range up to +70°C and product features that include conformal coating and a temperature-controlled cooling fan. These characteristics make it appropriate for harsher operating environments than many general-purpose inverters.
What protections and certifications does this inverter include?
The NTU-3200-148TB includes protection for short circuit, overload, over voltage, and battery over-discharge. It is also listed with multiple safety and compliance approvals, including IEC62368-1, EN62368-1, UL458, EAC TP TC 004, and AS/NZS 62368.1.
