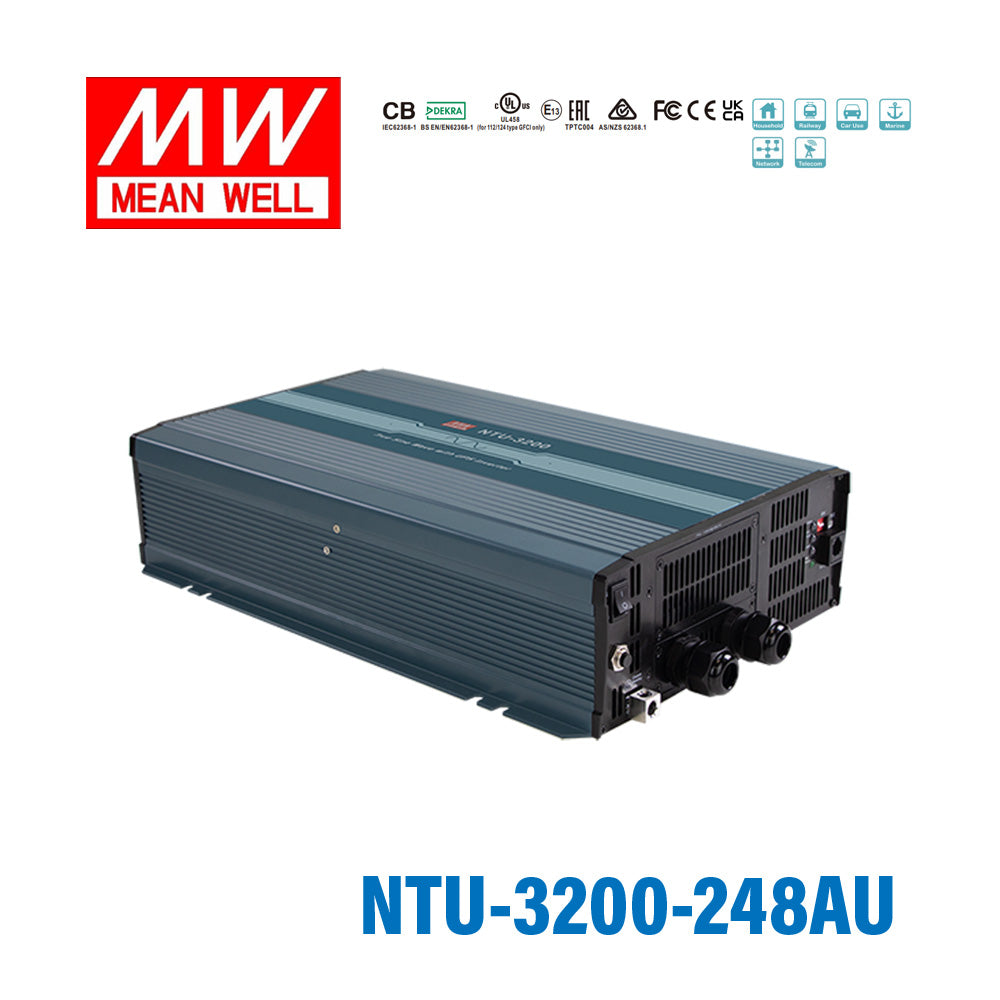

Mean Well NTU-3200-248AU True Sine Wave DC-AC Inverter 3200W 220V out 48V in with AU Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-248AU True Sine Wave DC-AC Inverter 3200W 220V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage240 Volt
-
Input Voltage40V~66V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
::specification::
Frequently Asked Questions
What is the Mean Well NTU-3200-248AU designed for?
The NTU-3200-248AU is a 3200W true sine wave DC-AC inverter for converting 48V DC input power to AC output. It is suited to professional and commercial applications that need stable AC power quality, and this version includes an AU socket plus AC by-pass functionality.
Does this inverter produce true sine wave output?
Yes. The NTU-3200-248AU provides true sine wave output with total harmonic distortion below 3%. That makes it a better fit for sensitive equipment than modified sine wave alternatives.
What output power can this model deliver?
This model is rated for 3200W continuous output power. It also supports high surge power up to 6400W, which helps with loads that have higher startup demand.
What AC output voltage does the NTU-3200-248AU support?
The inverter supports selectable AC output voltages of 100/110/115/120VAC and 200/220/230/240VAC. For this model, the product configuration is positioned around 220V output and includes an AU socket format.
Does this inverter include an AC by-pass or UPS-style function?
Yes. The NTU-3200-248AU includes a built-in UPS function with AC by-pass. This is useful in systems where continuity of AC output is an important purchasing requirement.
What battery types is the NTU-3200-248AU compatible with?
Mean Well specifies this inverter as suitable for both lead-acid and lithium-ion battery systems. It also includes battery over-discharge protection with low voltage disconnect.
Can this inverter operate in demanding environments?
It is designed for wide-temperature operation, with a stated operating range up to +70°C and low-temperature capability listed in the product data. It also uses a temperature-controlled cooling fan and conformal coating to support use in harsher operating conditions.
What protection and compliance features does this model include?
The NTU-3200-248AU includes protection for short circuit, overload, over voltage, and battery over-discharge. It is also listed with multiple safety and EMC approvals, including IEC62368-1, UL458, and AS/NZS 62368.1 related certifications noted in the specification.
