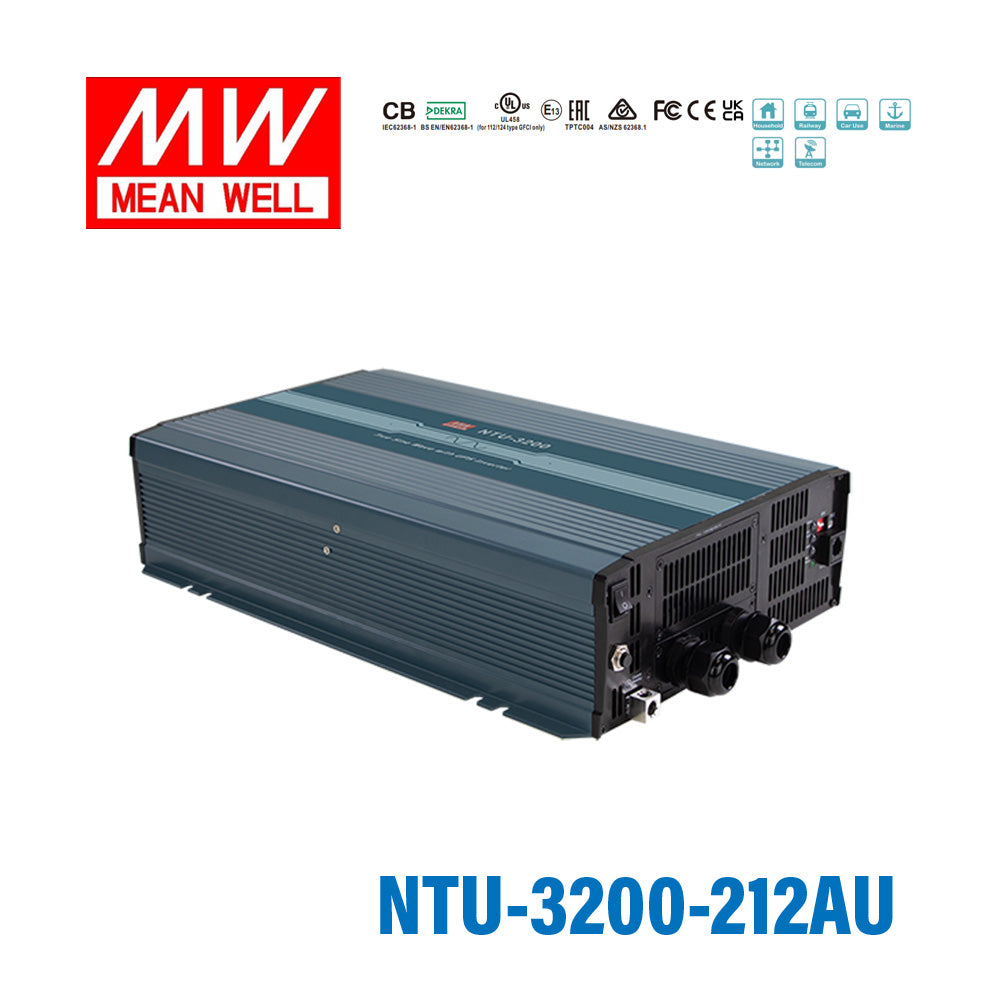

Mean Well NTU-3200-212AU True Sine Wave DC-AC Inverter 3200W 220V out 12V in with AU Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-212AU True Sine Wave DC-AC Inverter 3200W 220V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage200 Volt
-
Input Voltage10V~16.5V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
::specification::
Frequently Asked Questions
What is the Mean Well NTU-3200-212AU designed for?
The NTU-3200-212AU is a 3200W true sine wave DC-AC inverter for applications that need clean AC output from a 12V DC source. It is suited to professional and commercial use where stable waveform quality, high surge capacity, and built-in AC by-pass support are important.
Does this inverter produce true sine wave output?
Yes. This model provides true sine wave AC output with total harmonic distortion below 3%, which makes it a better fit for sensitive electronics than modified sine wave alternatives. It is built for applications where output quality matters as much as power capacity.
What output voltage options does the NTU-3200-212AU support?
This inverter supports selectable AC output voltages of 100/110/115/120VAC and 200/220/230/240VAC via DIP switch selection. The product name identifies this version as a 12V input model with 220V-class output and an AU socket configuration.
Can this model handle startup surges above its continuous rating?
Yes. The NTU-3200-212AU has a continuous power rating of 3200W and supports surge power up to 6400W. It also includes overload protection behavior specified at 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.
Does the NTU-3200-212AU include AC by-pass or UPS-style functionality?
Yes. This model includes a built-in UPS function with AC by-pass, which is one of its key differentiators in the NTU series. That makes it suitable for applications where maintaining AC availability is an important requirement.
What battery types is this inverter compatible with?
The NTU-3200-212AU is suitable for both lead-acid and lithium-ion battery systems. It also includes battery over-discharge protection with low-voltage disconnect to help protect the connected battery source.
Is this inverter suitable for demanding environments?
Yes. It supports a wide operating temperature range up to +70°C, uses a temperature-controlled cooling fan, and includes conformal coating for added durability. The published working temperature range is -25°C to +70°C, with output derating referenced at higher temperatures.
What certifications and warranty does this model include?
The NTU-3200-212AU is listed with approvals including IEC62368-1, BS EN/EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1, with EMC compliance to EN55032 Class A and related EN61000 standards. Mean Well specifies a 3-year warranty for this model.
