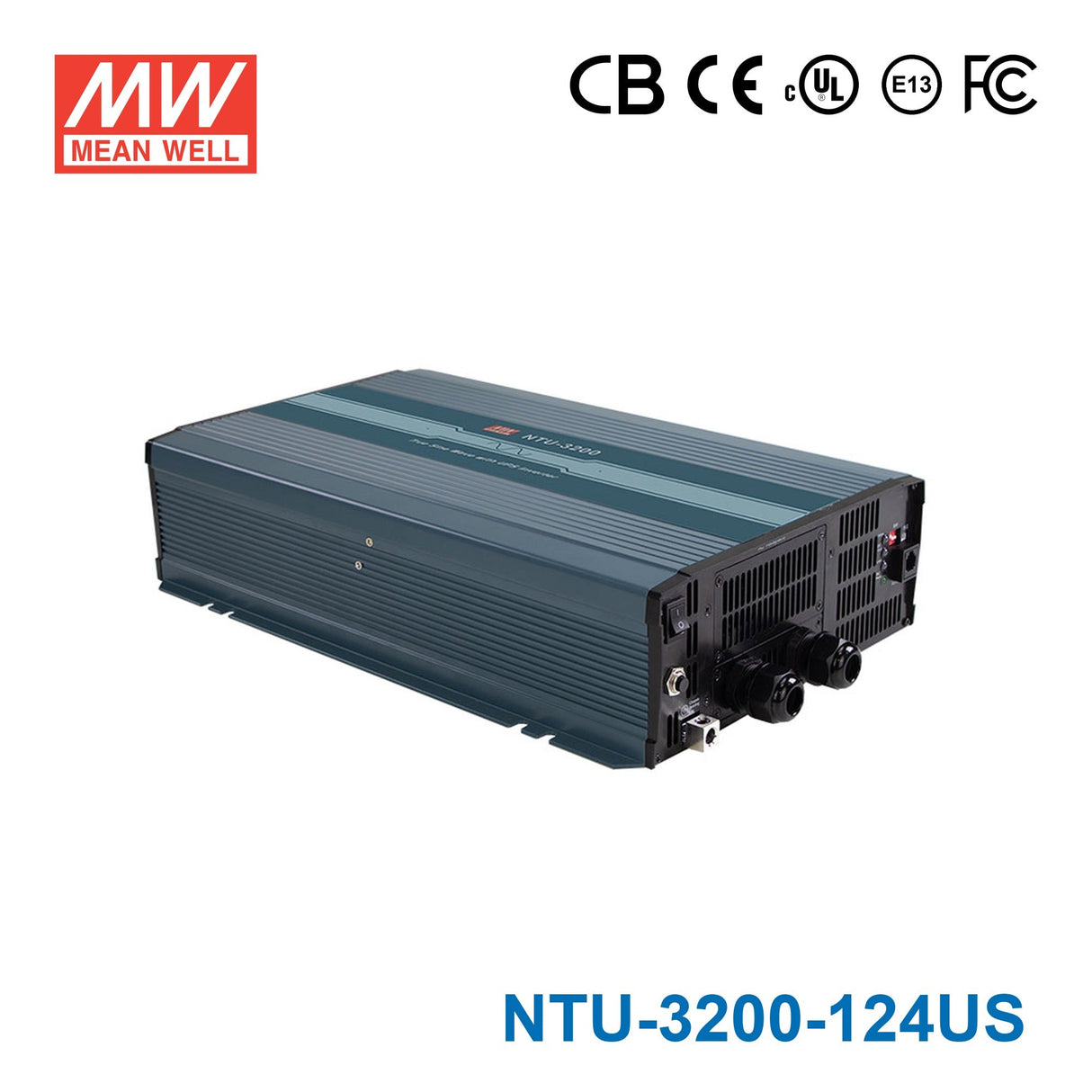

Mean Well NTU-3200-124US True Sine Wave DC-AC Inverter 3200W 110V out 24V in with US Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-124US True Sine Wave DC-AC Inverter 3200W 110V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage110 Volt
-
Input Voltage20V~33V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
Frequently Asked Questions
What is the Mean Well NTU-3200-124US designed for?
The NTU-3200-124US is a 3200W true sine wave DC-AC inverter for applications that need 110V AC output from a 24V DC source. It is suited to mobile, backup power, industrial, and other B2B power-conversion uses where clean AC output and higher surge capacity matter.
What input and output does this inverter support?
This model is a 24V DC input inverter with 110V AC output in the US version. The general specification also lists selectable AC output ranges via DIP switch, including 100/110/115/120VAC and 200/220/230/240VAC options.
Does the NTU-3200-124US provide true sine wave output?
Yes. This model provides true sine wave output with total harmonic distortion listed at under 3%, which is important for loads that require cleaner AC power. That makes it a better fit than modified sine wave units for more sensitive equipment.
Does this inverter include an AC bypass or UPS-style function?
Yes. The NTU-3200-124US includes a built-in UPS function with AC by-pass capability, as listed in the product features. That makes it relevant for applications that need continuity between incoming AC power and inverter-backed output.
How much surge and overload capacity does this model have?
The rated output power is 3200W, and the product lists surge power up to 6400W. The overload specification also states 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.
Is the NTU-3200-124US compatible with different battery chemistries?
Yes. The product data states that it is suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection with low-voltage disconnect.
Is this inverter suitable for demanding operating environments?
This model is built for tougher environments with a wide operating temperature range up to 70C, temperature-controlled cooling fan operation, and conformal coating. It also includes front-panel status indicators and protection for short circuit, overload, and over voltage conditions.
What certifications and warranty come with this inverter?
The NTU-3200-124US is listed with approvals including IEC62368-1, EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1, along with EMC compliance such as EN55032 Class A. The listed warranty period for this model is 3 years.
