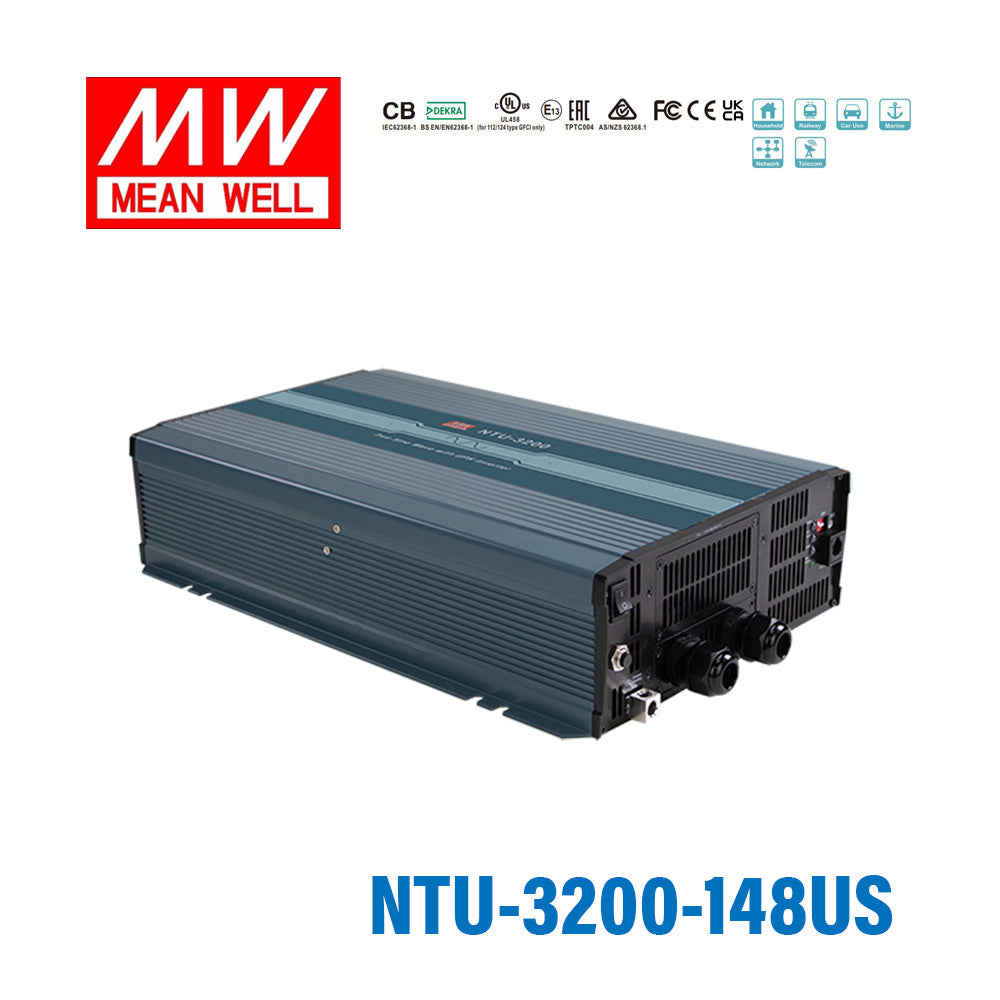

Mean Well NTU-3200-148US True Sine Wave DC-AC Inverter 3200W 110V out 48V in with US Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-3200-148US True Sine Wave DC-AC Inverter 3200W 110V o...
The NTU-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating3200 Watt
-
Output Voltage110 Volt
-
Input Voltage40V~66V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length17.32 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
Frequently Asked Questions
What is the main use case for the Mean Well NTU-3200-148US?
This model is a 3200W true sine wave DC-AC inverter designed for applications that need 110V AC output from a 48V DC input source. It is suited to business and industrial environments where clean AC power and higher surge capacity are important.
Does the NTU-3200-148US provide true sine wave output?
Yes. The NTU-3200-148US provides true sine wave output with total harmonic distortion below 3%, which helps support sensitive AC loads that benefit from cleaner power. This is a key differentiator versus modified sine wave inverters.
Does this inverter include an AC by-pass or UPS-type function?
Yes. The NTU-3200-148US includes a built-in UPS function with AC by-pass capability. That makes it suitable for applications where continuity of AC output is an important purchasing consideration.
What input and output voltages does this model support?
This specific model is a 48V DC input inverter with 110V AC output. Its AC output voltage range is selectable by DIP switch, with options including 100/110/115/120VAC and 200/220/230/240VAC according to the product specification.
What kind of surge and overload capability does the NTU-3200-148US have?
The inverter is rated for 3200W continuous power and supports surge power up to 6400W. The specification also states overload performance of 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.
Is the NTU-3200-148US compatible with lead-acid and lithium-ion battery systems?
Yes. Mean Well lists this model as suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection through a low-voltage disconnect function.
Can this inverter be used in demanding environmental conditions?
It is designed for wide-temperature operation, with the general specification listing a working range of -25°C to +70°C. The unit also uses temperature-controlled cooling and conformal coating, which supports use in more demanding operating environments.
What protection and monitoring features are included?
The NTU-3200-148US includes short circuit, overload, and over-voltage protections, along with battery over-discharge protection. It also has front panel status indicators and supports optional remote control and optional RS-232 communication accessories.
