Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

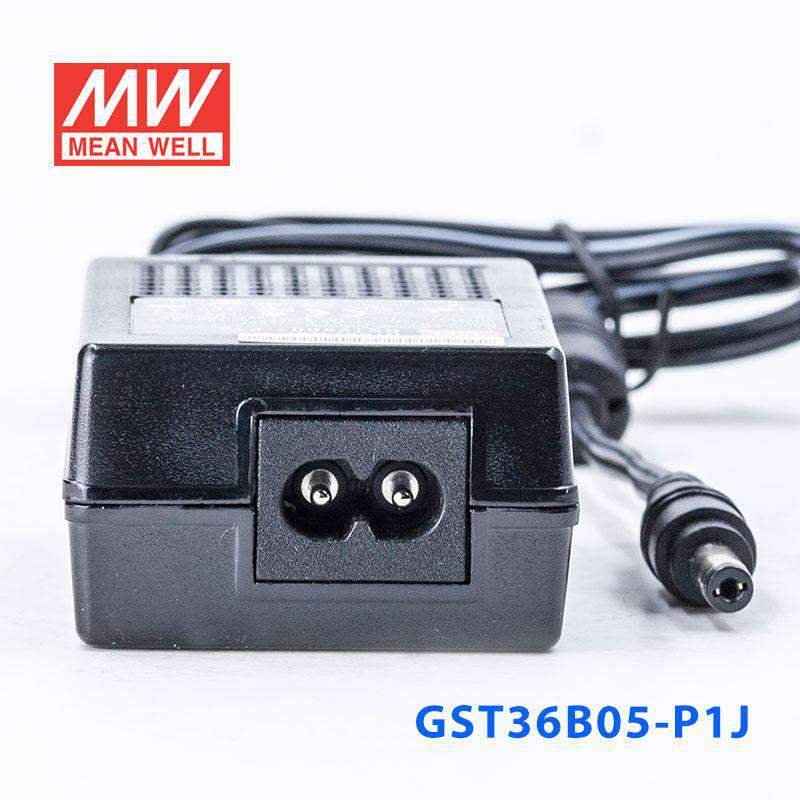

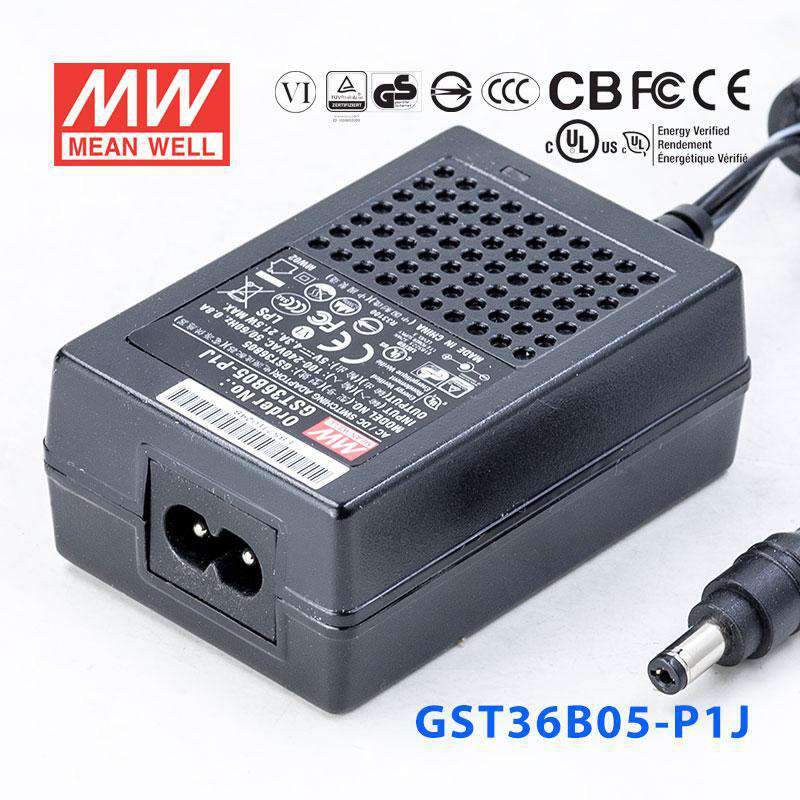

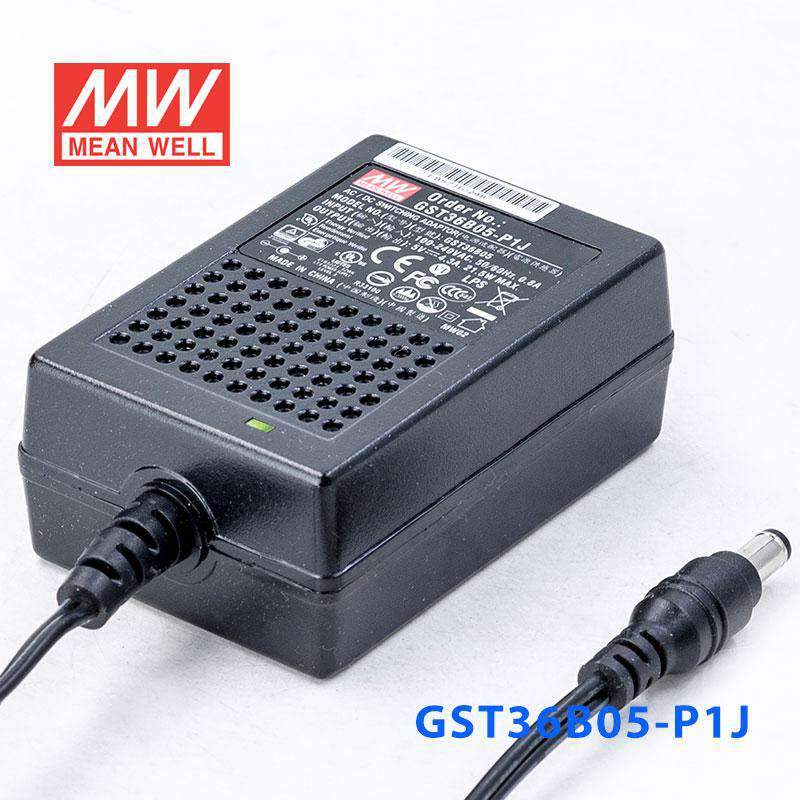

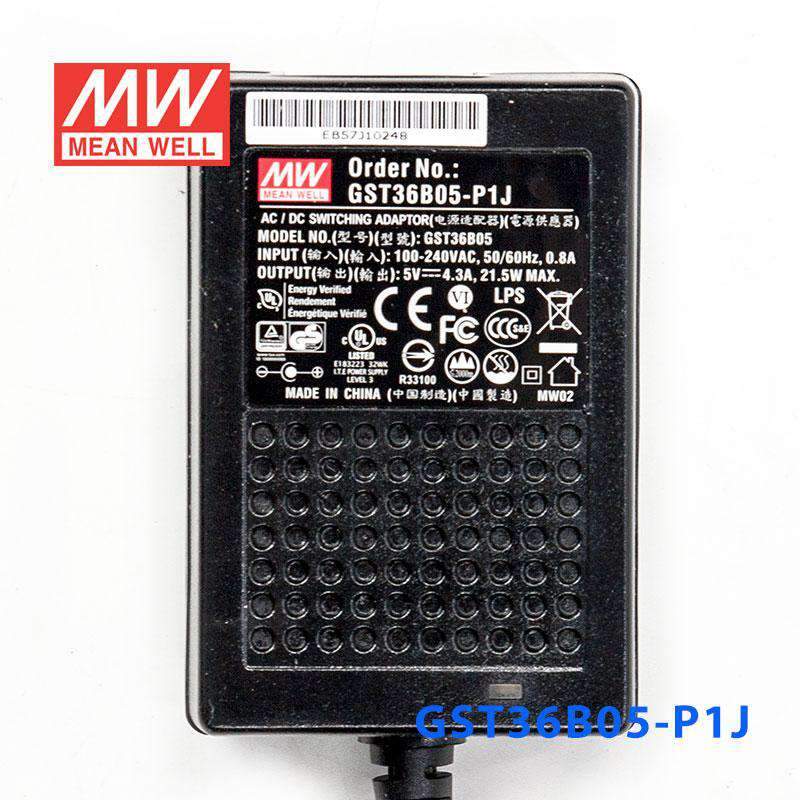

Mean Well GST36B05-P1J Power Supply 21.5W 5V 4.3A
The GST36B05 is a 36W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: AS/NZS 60950.1 ,PSE J60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating21.5 Watt
-
Output Voltage5 Volt
-
Rated Current4.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
Can I use the GST36B05-P1J for a 5V single-board computer or embedded controller?
Yes, this model can suit 5V embedded boards and controllers that need regulated constant-voltage output. It is rated for 21.5W at 5V with up to 4.3A available, which is useful for higher-current 5V devices.
Is the GST36B05-P1J suitable for 5V industrial USB hubs or interface modules?
It can be suitable for 5V interface hardware that expects a stable 5V DC input. The output rating of 4.3A gives more headroom than many lower-power 5V adapters, as long as the total load stays within 21.5W.
Can this power supply be used for 5V test benches or development fixtures?
Yes, it is a practical option for 5V development fixtures, validation rigs, and bench electronics that need constant-voltage output. Its compact 79.0 x 54.0 x 33.0 mm size also helps where space is limited.
Would the GST36B05-P1J work for small 5V automation electronics?
It can work for smaller 5V automation electronics such as controllers, sensors, or interface boards that run from regulated 5V DC. The key limit is the available 4.3A output current and 21.5W total output power.
Is the GST36B05-P1J meant for outdoor use?
The operating temperature range is -30C to +70C, which supports use across a wide temperature span. However, no IP rating is listed in the provided specs, so outdoor or exposed-environment use should not be assumed from this data alone.
