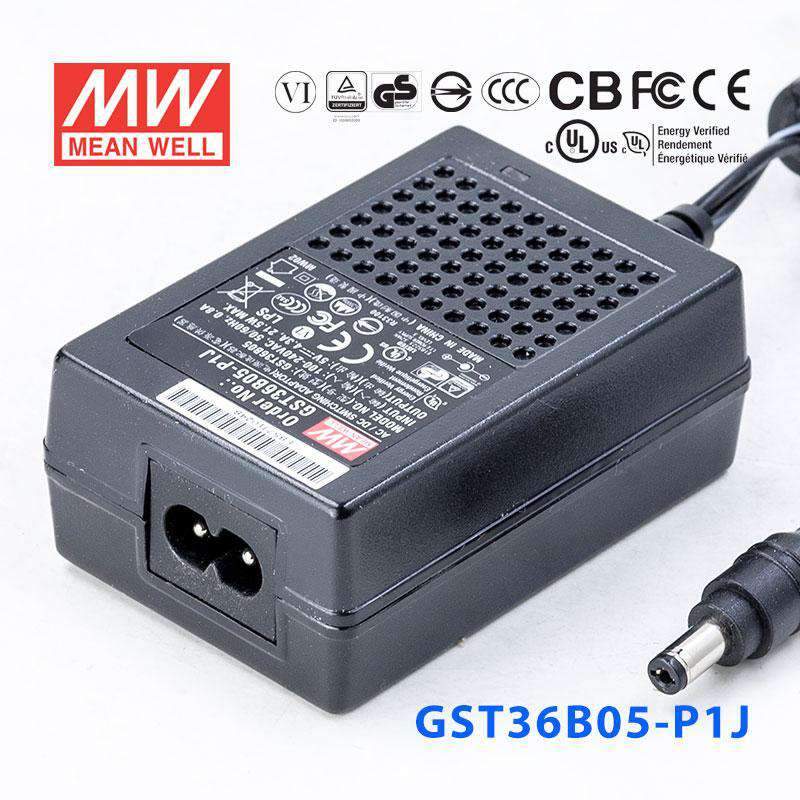

Mean Well GST36B05-P1J Power Supply 21.5W 5V 4.3A
Overview
GST36B05-P1J is the 5V output model of this series: rated current 4.3A, typical efficiency 82%.
GST36B is a highly reliable, 36W desktop style single-output green adaptor series. This product is a classⅡ power unit (no FG), equipped with a standard IEC320-C8 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 90% and the extremely low no-load power consumption below 0.075W,GST36B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP,and Code of Conduct(CoC) Version 5. The suprem feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST36B is certified for the international safety regulations.
Features
- Global certificates
- Universal AC input / Full range
- 2 pole AC inlet IEC320-C8,Class Ⅱ power unit
- No load power consumption< 0.075W
- Energy efficiency Level Ⅵ
- Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Pass LPS
- -30~+70℃ wide range working temperature
- LED indicator for power on
- Various DC plug quick adaptor accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GST36B05
- DC VOLTAGENote.2
- 5V
- RATED CURRENT
- 4.3A
- CURRENT RANGE
- 0 ~ 4.3A
- RATED POWER (max.)
- 21.5W
- RIPPLE & NOISE (max.)Note.3
- 90mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATIONNote.6
- ±5.0%
- SETUP, RISE, HOLD UP TIME
- 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 13ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 85 ~ 264VAC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 82%
- AC CURRENT
- 0.8A / 115VAC 0.45A / 230VAC
- INRUSH CURRENT (max.)
- Cold start 35A / 115VAC 70A / 230VAC
- LEAKAGE CURRENT(max.)
- 0.25mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 110 ~ 140% rated output voltage Protection type : Clamp by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote. 8
- UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1,AS/NZS 62368.1,PSE J62368-1, BIS IS13252, KC K60950-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:4242VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B Harmonic current BS EN/EN61000-3-2,GB9254 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT bursts BS EN/EN61000-4-4 Level 2, 1KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods
OTHERS
- MTBF
- 3838.3K hrs min. Telcordia SR-332 (Bellcore) ; 557.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 79*54*33mm (L*W*H)
- PACKING
- 203g; 60pcs/13.2Kg/1.15CUFT
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
Test conditions and notes8
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.Load regulation is measured from 10% to 100% rated load.
- 7.Derating may be needed under low input voltage. Please check the derating curve for more details.
- 8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Downloads
Datasheet1
Certificates9
Test reports1
FAQ
Can I use the GST36B05-P1J for a 5V single-board computer or embedded controller?
Yes, this model can suit 5V embedded boards and controllers that need regulated constant-voltage output. It is rated for 21.5W at 5V with up to 4.3A available, which is useful for higher-current 5V devices.
Is the GST36B05-P1J suitable for 5V industrial USB hubs or interface modules?
It can be suitable for 5V interface hardware that expects a stable 5V DC input. The output rating of 4.3A gives more headroom than many lower-power 5V adapters, as long as the total load stays within 21.5W.
Can this power supply be used for 5V test benches or development fixtures?
Yes, it is a practical option for 5V development fixtures, validation rigs, and bench electronics that need constant-voltage output. Its compact 79.0 x 54.0 x 33.0 mm size also helps where space is limited.
Would the GST36B05-P1J work for small 5V automation electronics?
It can work for smaller 5V automation electronics such as controllers, sensors, or interface boards that run from regulated 5V DC. The key limit is the available 4.3A output current and 21.5W total output power.
Is the GST36B05-P1J meant for outdoor use?
The operating temperature range is -30C to +70C, which supports use across a wide temperature span. However, no IP rating is listed in the provided specs, so outdoor or exposed-environment use should not be assumed from this data alone.
