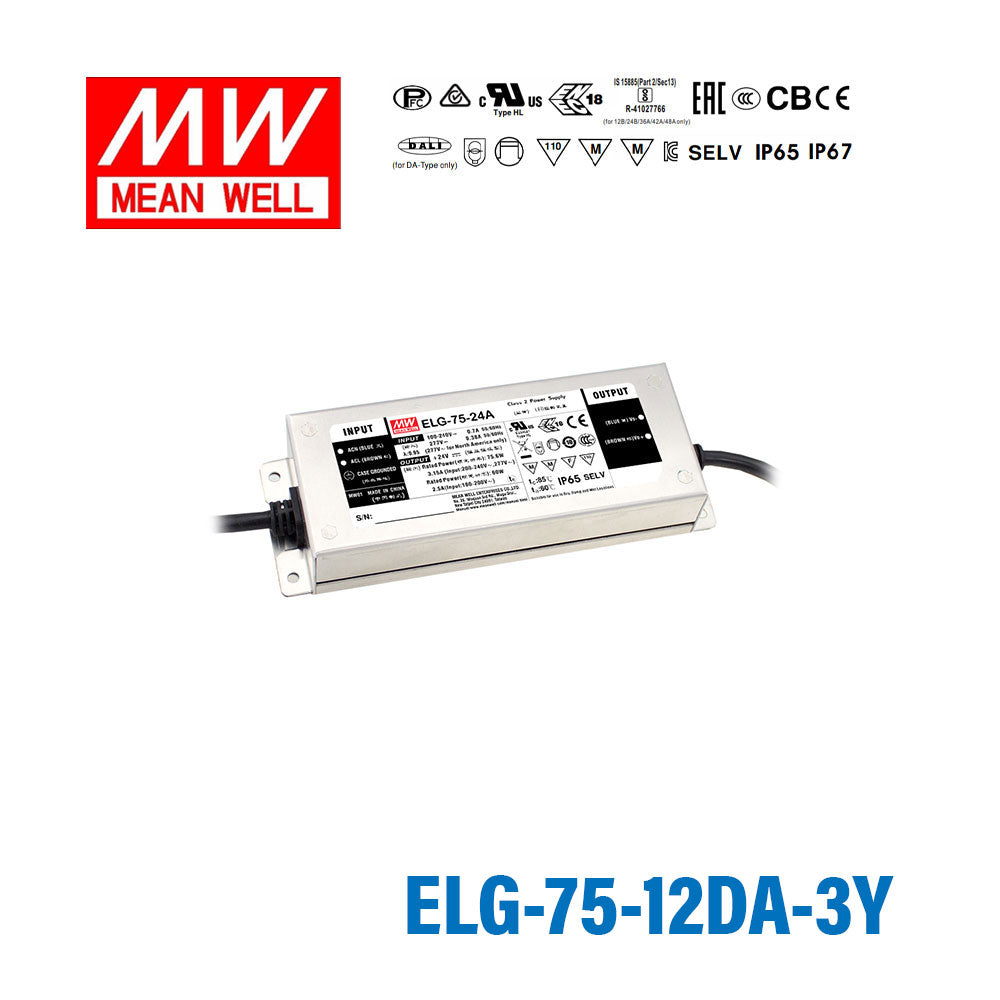

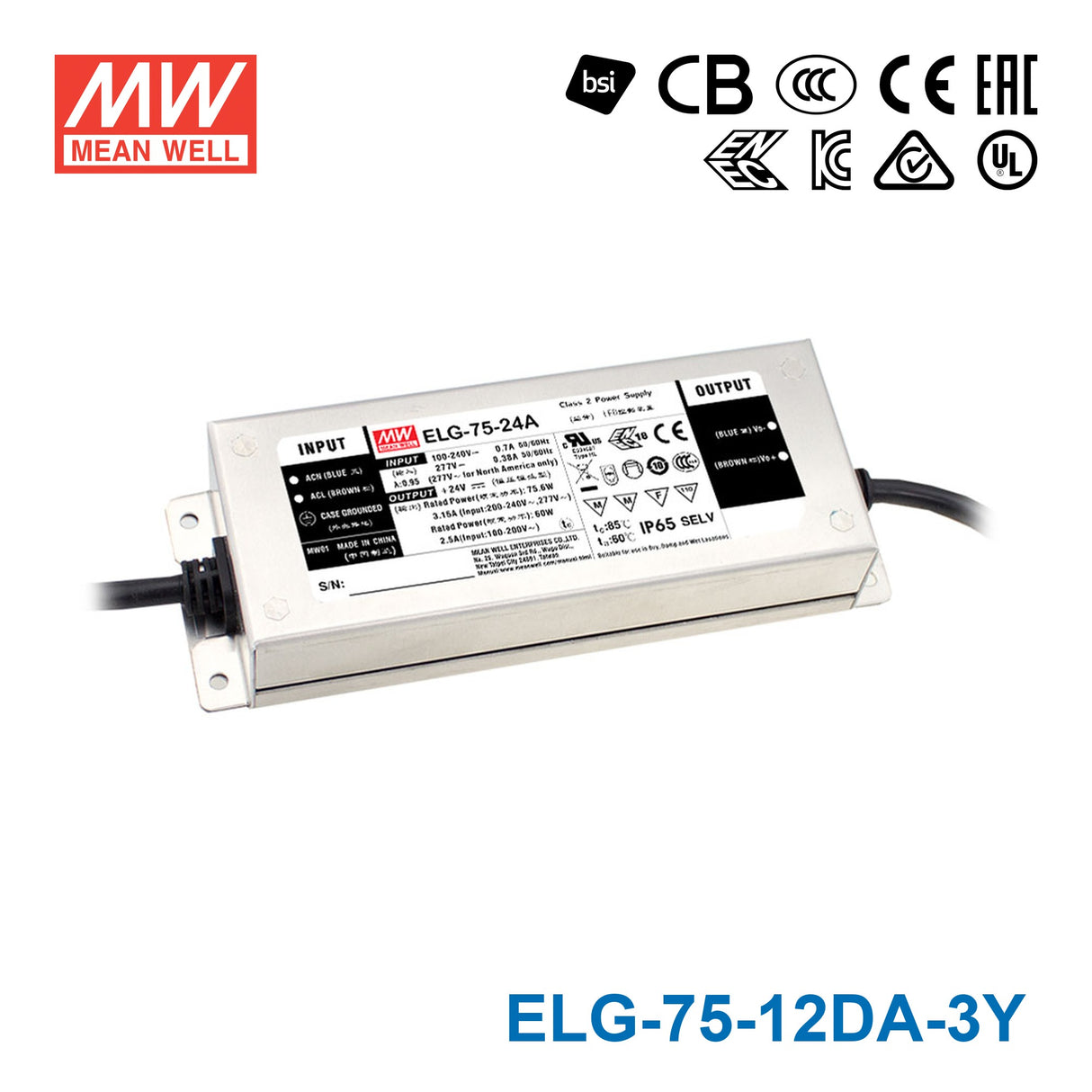

Mean Well ELG-75-12DA Power Supply 60W 12V 3-wire Input - DALI
Description
Description
The ELG-75-12DA is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the 3-wire input configuration on the ELG-75-12DA-3Y mean for installation?
The -3Y suffix indicates this variant accepts a 3-wire (line, neutral, ground) input, which matches standard North American and international wiring conventions and simplifies compliance with commercial electrical codes that require a ground conductor.
Can the ELG-75-12DA-3Y be used outdoors in wet conditions?
Yes. The ELG-75-12DA-3Y carries an IP67 waterproof rating, making it suitable for outdoor enclosures, sign cabinets, or landscape fixtures exposed to rain, humidity, and occasional flooding. Its -40°C to +85°C operating range covers harsh outdoor environments.
Is the ELG-75-12DA-3Y compatible with DALI-based building control systems?
Yes. Like the ELG-75-12DA, the DA suffix indicates DALI dimming capability. This makes it suitable for integration into building automation systems, DALI wall controllers, or BMS platforms that manage commercial LED lighting zones.
Can the ELG-75-12DA-3Y power 12V LED strip in a hotel corridor or hospitality lighting application?
Yes. Its 60W output at 12V supports strip runs in hotel corridors, lobbies, or feature walls. The DALI interface enables front-desk or scene-based dimming control, and the IP67 metal enclosure is reliable in spaces with periodic cleaning and humidity fluctuations.
How many meters of 12V LED strip can the ELG-75-12DA-3Y drive?
The ELG-75-12DA-3Y outputs 60W at 12V. A 10 W/m strip allows up to 6 meters; a 6 W/m strip up to 10 meters. Check your strip's rated power per meter and derate by 20% to maintain safe operating margins.
Is this driver suitable for 12V LED lighting in a healthcare or laboratory environment?
Yes. The wide input voltage range (100–305VAC) accommodates different facility power systems, and DALI dimming supports precise, flicker-free illumination important in clinical and lab settings. The IP67 enclosure resists cleaning chemicals and disinfectant sprays.
