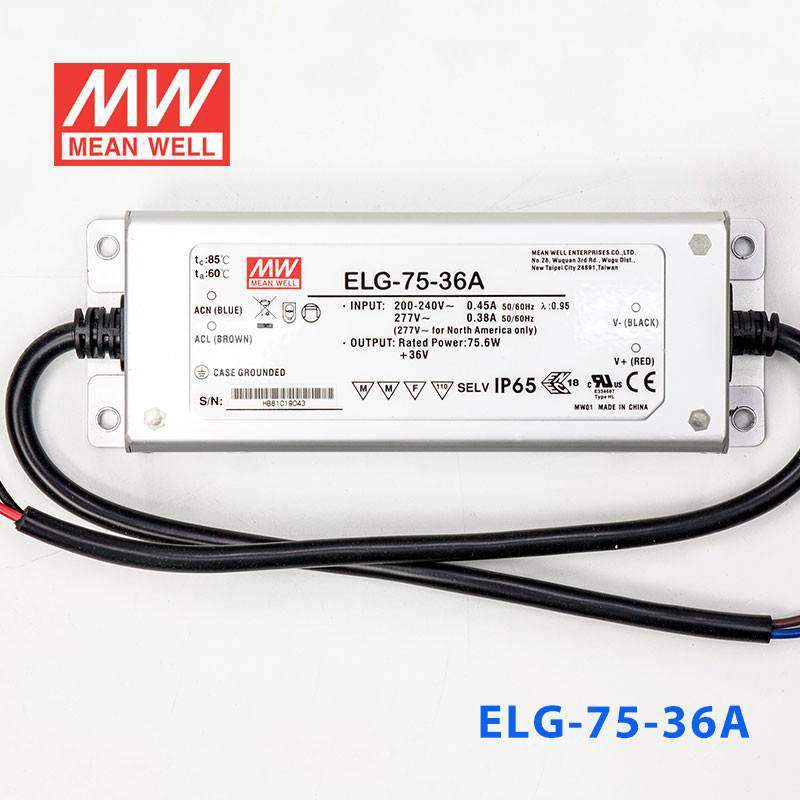

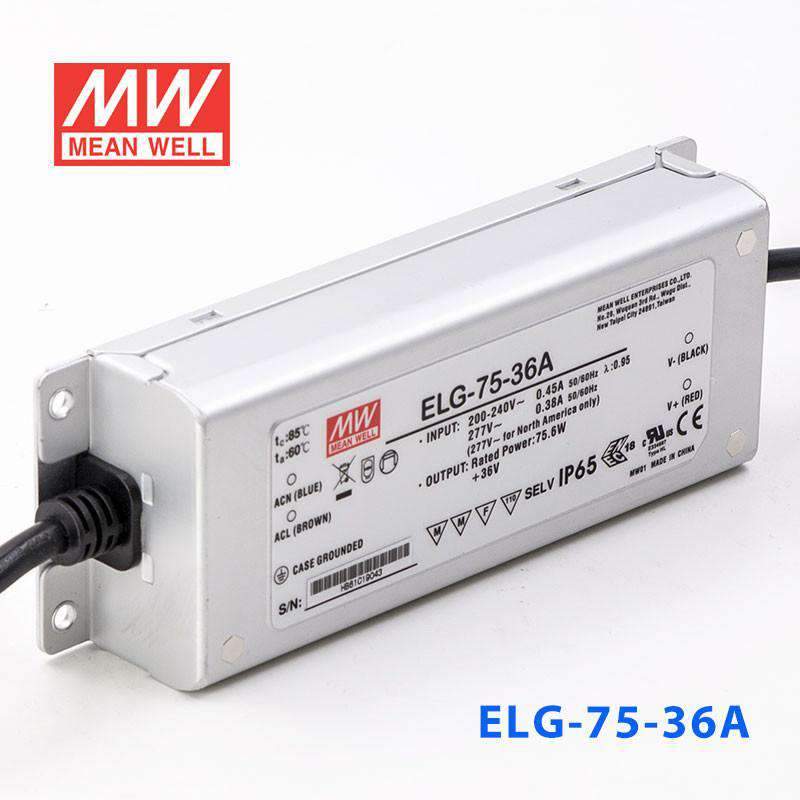

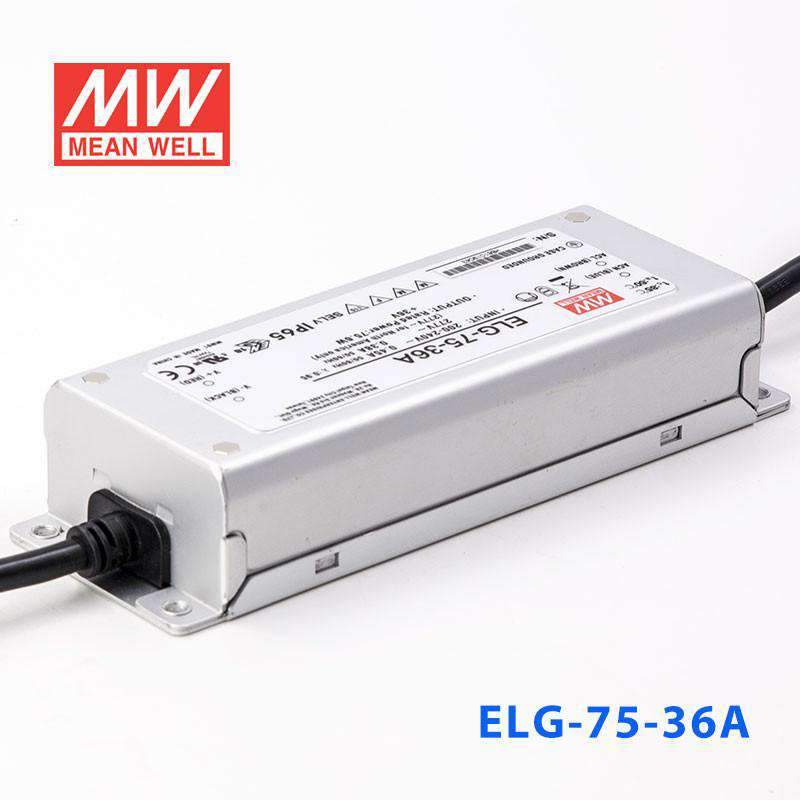

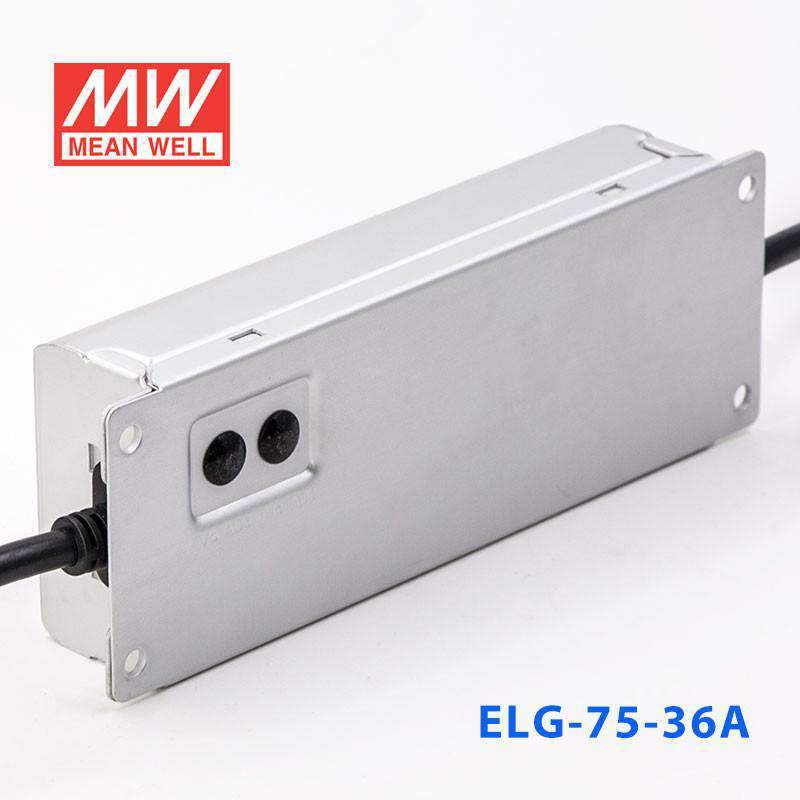

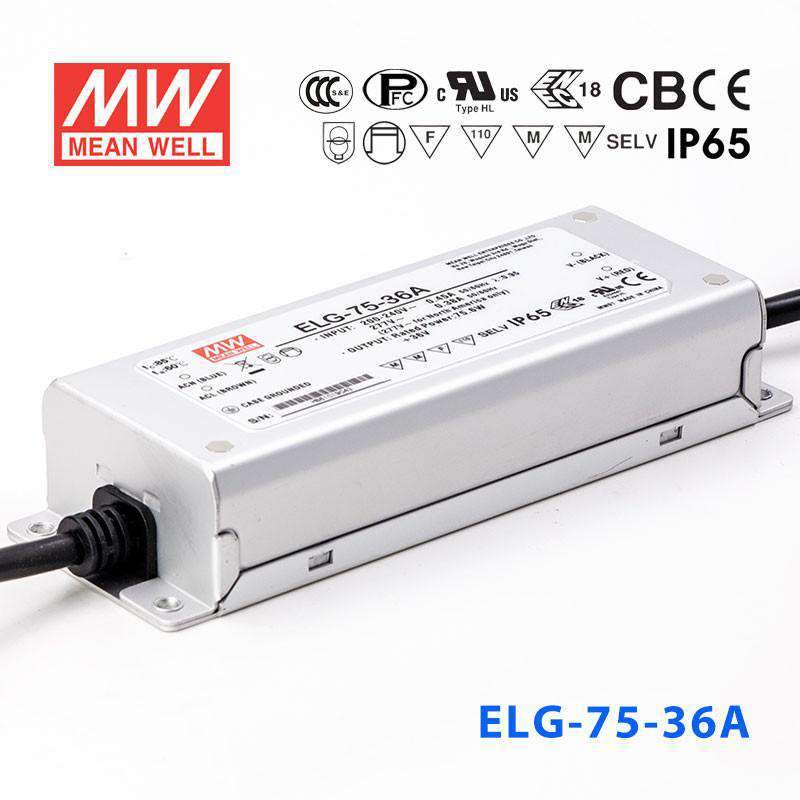

Mean Well ELG-75-36A Power Supply 75W 36V - Adjustable
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the 'A' suffix mean on the ELG-75-36A?
The 'A' suffix indicates that the driver includes an external potentiometer for adjusting both output voltage and current within a defined range, without requiring changes to the input wiring. This trim function lets installers fine-tune brightness to a fixed level during commissioning.
Can the ELG-75-36A be used for outdoor LED architectural lighting?
The ELG-75-36A carries an IP65 water-resistance rating, which protects against low-pressure water jets from any direction. It is suitable for covered outdoor locations and weather-protected enclosures, but not for direct submersion or high-pressure washdown environments.
How many meters of 36V LED strip can the ELG-75-36A drive?
At its rated 75.6W output and 36V, the ELG-75-36A supports roughly 7.5 meters of 10W/m strip or approximately 5.2 meters of 14.4W/m strip. Check your strip's rated power per meter before sizing the run to keep the load within 75.6W.
Is the ELG-75-36A appropriate for powering 36V LED modules in a light box or display cabinet?
Yes. Light box and display cabinet applications using 36V LED modules are well within the ELG-75-36A's 75.6W capacity. The output trim function also allows the installer to set a precise output level for consistent luminance across a display installation.
Can the ELG-75-36A be used to drive 36V COB LED strips in pendant commercial fixtures?
Yes. COB LED strip and panel applications requiring 36V are a common use case. The adjustable output allows minor brightness calibration, and the 2.1A current limit provides protection for sensitive COB modules.
Does the ELG-75-36A accept international mains voltages?
Yes. The 100–305VAC universal input range covers 100V (Japan), 120V (North America), 230V (Europe), and 277V (US commercial) circuits without modification.
