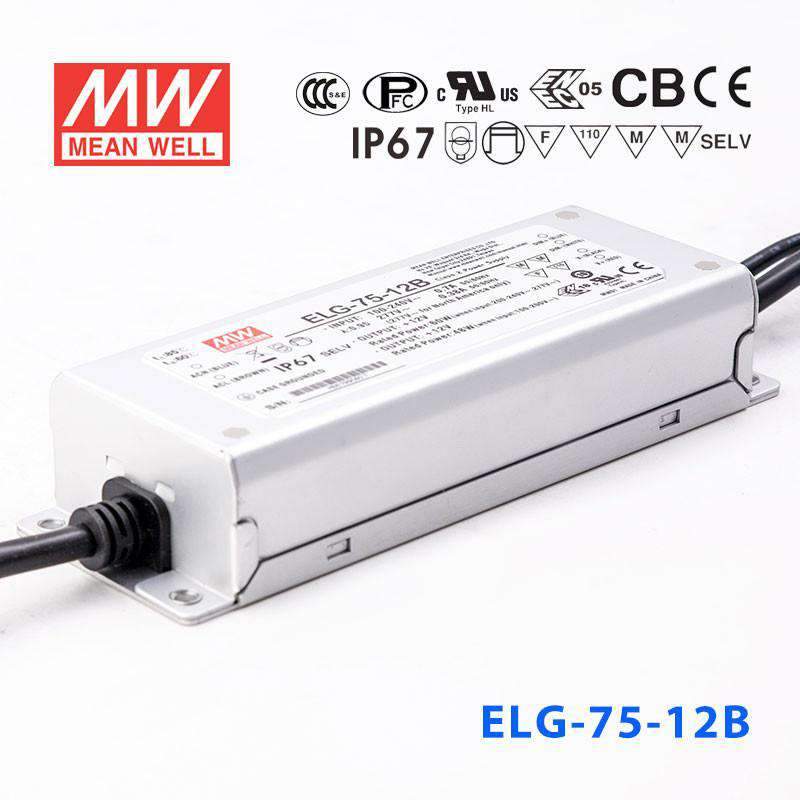

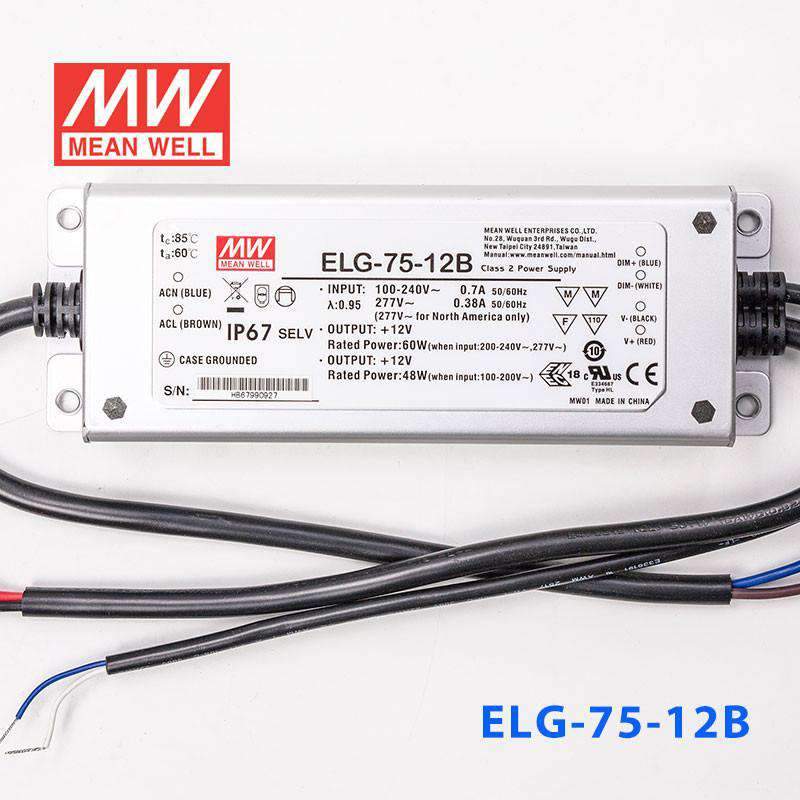

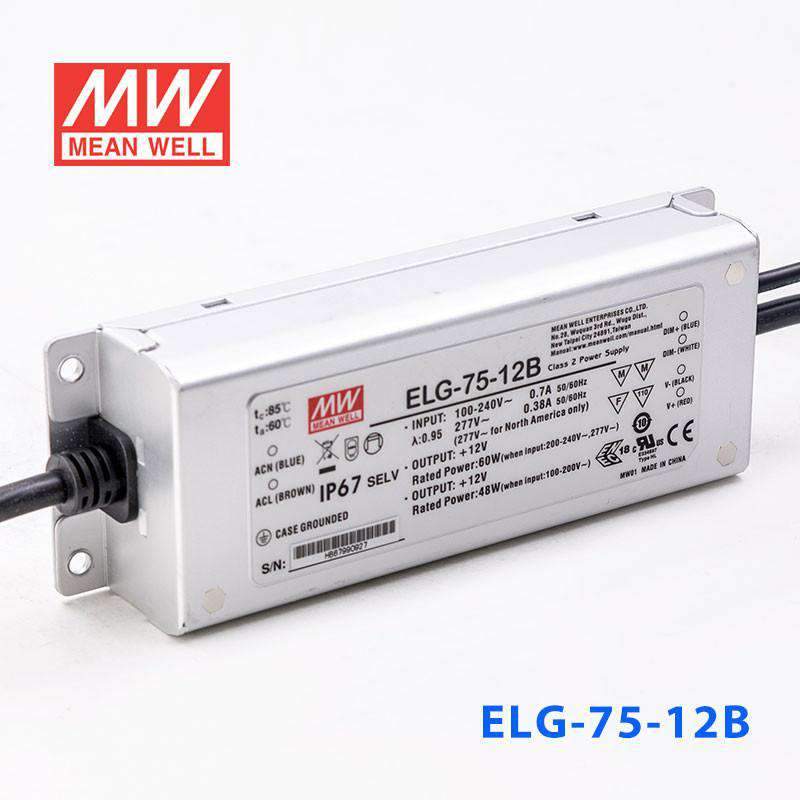

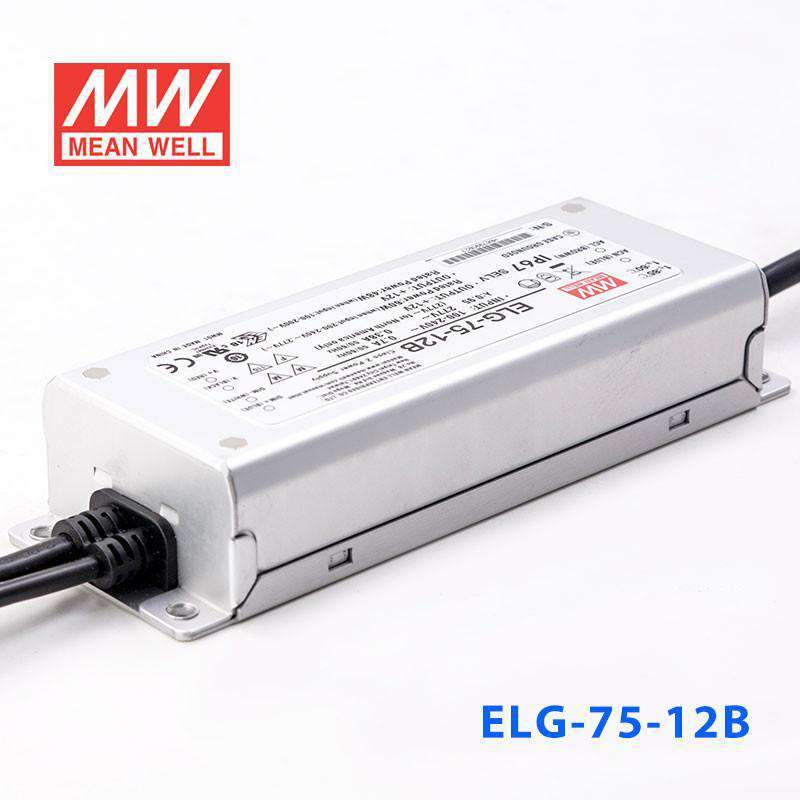

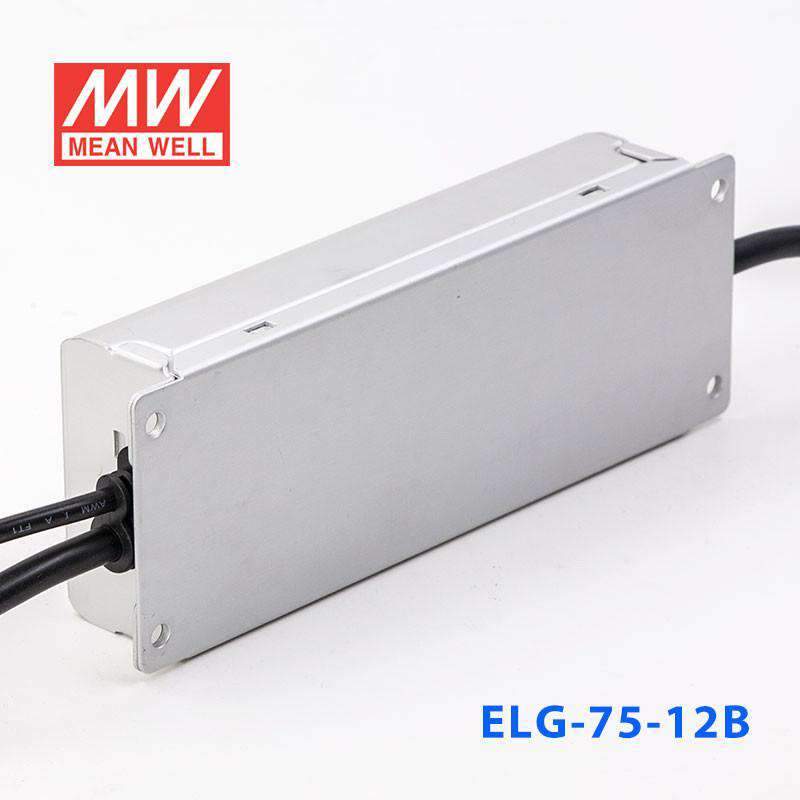

Mean Well ELG-75-12B Power Supply 60W 12V - Dimmable
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the ELG-75-12B be used to power 12V LED strip lighting inside an outdoor sign cabinet?
Yes. The ELG-75-12B carries an IP67 waterproof rating, meaning it is fully sealed against dust and temporary water immersion. It can be mounted directly inside outdoor sign cabinets or raceway enclosures exposed to rain and condensation without additional weatherproofing.
Is the ELG-75-12B suitable for LED lighting in a cold-storage or refrigerated display case?
Yes. With an operating temperature range of -40°C to +85°C, this driver handles the low temperatures and condensation found in refrigerated environments. The IP67 metal enclosure also tolerates moisture buildup without corrosion.
Can I use the ELG-75-12B to dim 12V LED strip lighting with a 0–10V dimmer?
Yes. The B suffix on this model indicates it supports 3-in-1 dimming (PWM, 0–10V, and resistance dimming), making it compatible with standard 0–10V wall dimmers and building control systems commonly used in commercial LED installations.
How many meters of 12V LED strip can the ELG-75-12B power?
The ELG-75-12B delivers 60W at 12V. For a 10 W/m strip that allows up to 6 meters; for a 6 W/m strip, up to 10 meters. Divide the 60W rating by your strip's rated power per meter, and always apply a 20% derating margin for reliable long-term operation.
Is this driver a good fit for 12V LED strip used in under-cabinet kitchen lighting?
Yes. The ELG-75-12B's 60W output at 12V suits under-cabinet LED strip runs of moderate length. Its compact metal enclosure (180 × 63 × 35.5 mm, 0.8 kg) fits inside standard cabinetry or junction boxes, and the IP67 rating provides extra protection against steam and splashes near sinks.
Can the ELG-75-12B power outdoor low-voltage landscape or pathway LED lighting?
Yes. The IP67 rating and -40°C to +85°C operating range make this driver well suited to ground-level landscape installations where rain, irrigation spray, and temperature extremes are common. The 12V output is compatible with many outdoor-rated LED pathway and accent fixtures.
What is the difference between the ELG-75-12B and other ELG-75-12 variants such as the ELG-75-12A or ELG-75-12D2?
All ELG-75-12 variants share 12V output and 5A current, but differ in dimming interface: the ELG-75-12 (no suffix) has no dimming; the ELG-75-12A adds a potentiometer for output adjustment; the ELG-75-12B (this unit, 60W) supports 3-in-1 dimming (PWM/0–10V/resistance); the ELG-75-12D2 (75W) adds DALI dimming; and the ELG-75-12DA (60W) uses a DALI interface. The -3Y variants include a 3-wire input configuration.
