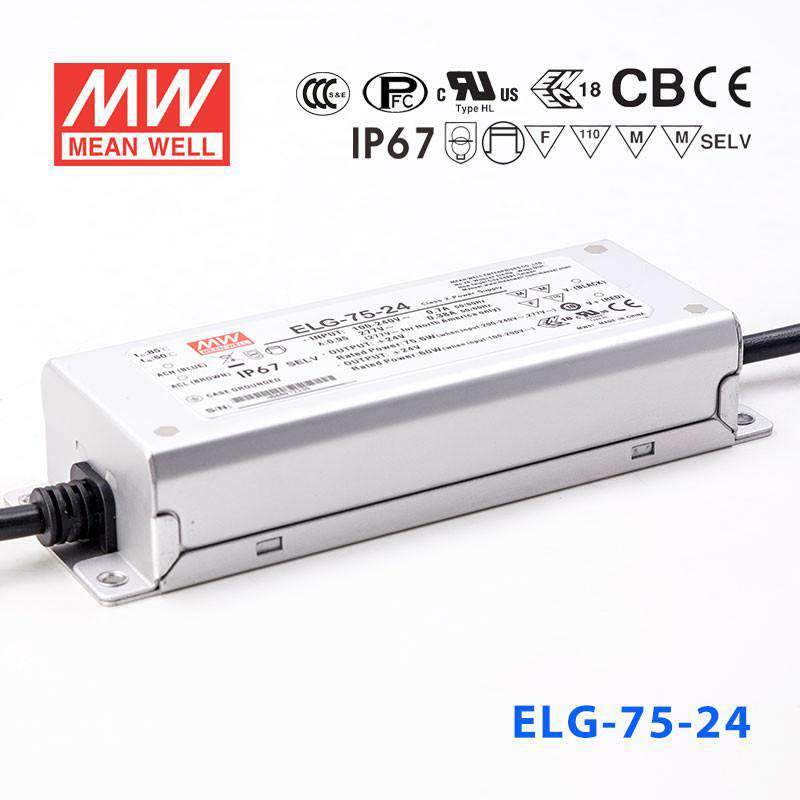

Mean Well ELG-75-24AB Power Supply 75W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-75-24AB Power Supply 75W 24V - Adjustable and Dimmable
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75.6 Watt
-
Output Voltage24 Volt
-
Rated Current3.15 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming methods does the ELG-75-24AB support?
The AB suffix indicates this driver combines the A variant's output-voltage potentiometer with the B variant's 3-in-1 dimming interface (PWM signal, 0–10V analog, and resistance dimming). This makes it compatible with a wide range of dimmers, including 0–10V wall dimmers and PWM controllers commonly used with 24V LED strip.
Can the ELG-75-24AB be installed in a covered outdoor enclosure for 24V LED strip signage?
The ELG-75-24AB is rated IP65, providing complete dust protection and resistance to low-pressure water jets. It is suitable for sign enclosures and covered outdoor locations but should not be exposed to direct sustained rain or immersion without additional protection.
How many meters of 24V LED strip can the ELG-75-24AB power?
The ELG-75-24AB delivers 75.6W at 24V. For a 10 W/m strip that allows up to 7.5 meters; for a 14.4 W/m strip, approximately 5.25 meters. Check your strip's rated power per meter and apply a 20% safety margin for continuous operation.
Is the ELG-75-24AB a good choice for a dimmable 24V LED strip installation in a retail or hospitality setting?
Yes. The 3-in-1 dimming interface and output voltage adjustment make the ELG-75-24AB flexible for retail and hospitality installations where lighting scenes and brightness levels must be tuned. It works with 0–10V wall dimmers, PWM controllers, and resistance dimmers already in place in many commercial spaces.
Can the ELG-75-24AB drive 24V LED strip used in office cove or indirect ceiling lighting with smart dimming control?
Yes. The 0–10V dimming input on the ELG-75-24AB is compatible with many smart lighting and BMS systems used in office environments for energy management. At 75.6W and 24V, it supports moderate-length cove or indirect ceiling strip installations in open-plan offices or meeting rooms.
What is the operating temperature range for the ELG-75-24AB, and does it suit warm ceiling plenums?
The ELG-75-24AB operates from -40°C to +85°C. In warm ceiling plenums where ambient temperatures may be elevated due to HVAC equipment or solar gain, ensure sufficient airflow around the driver enclosure to keep the case temperature within this rated limit.
