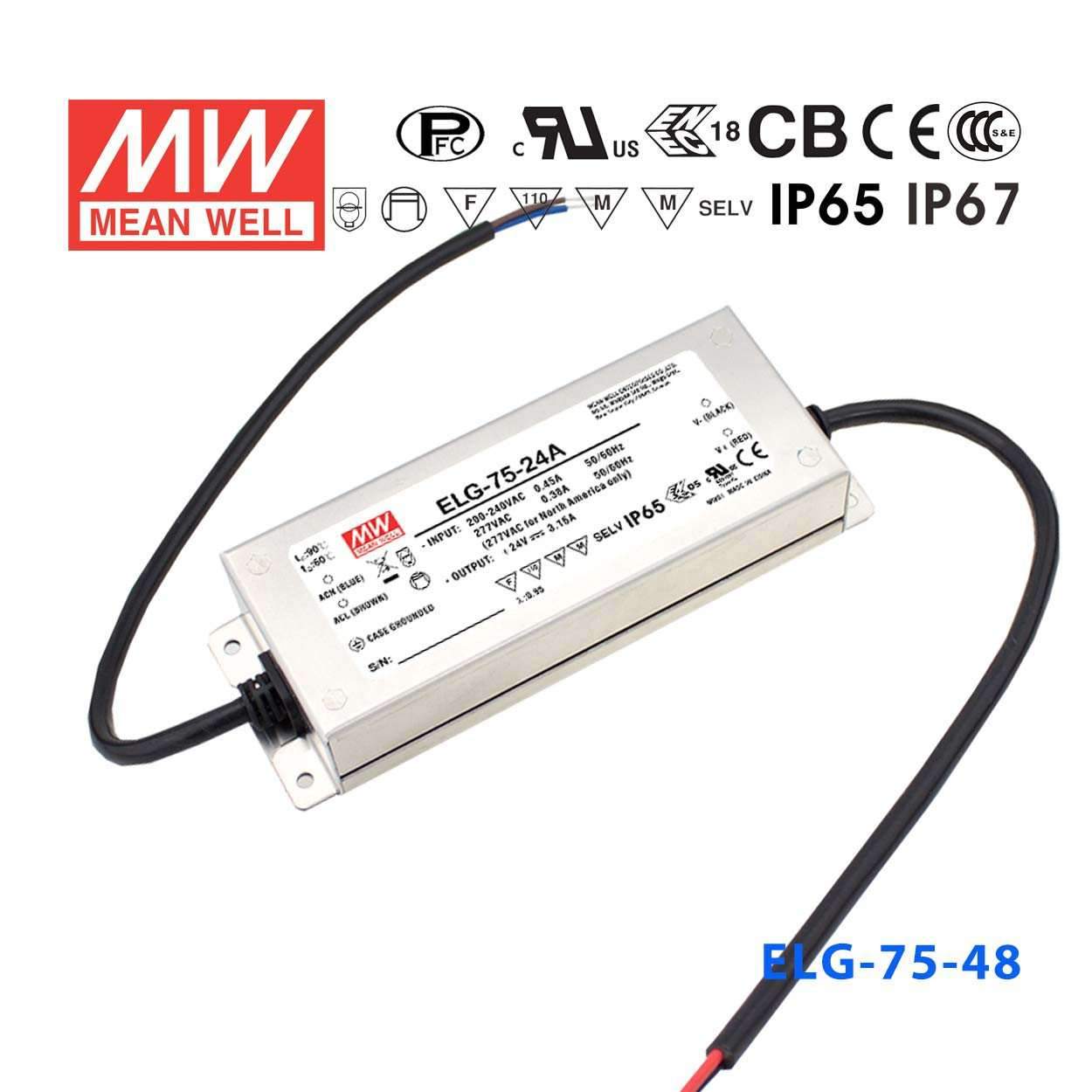

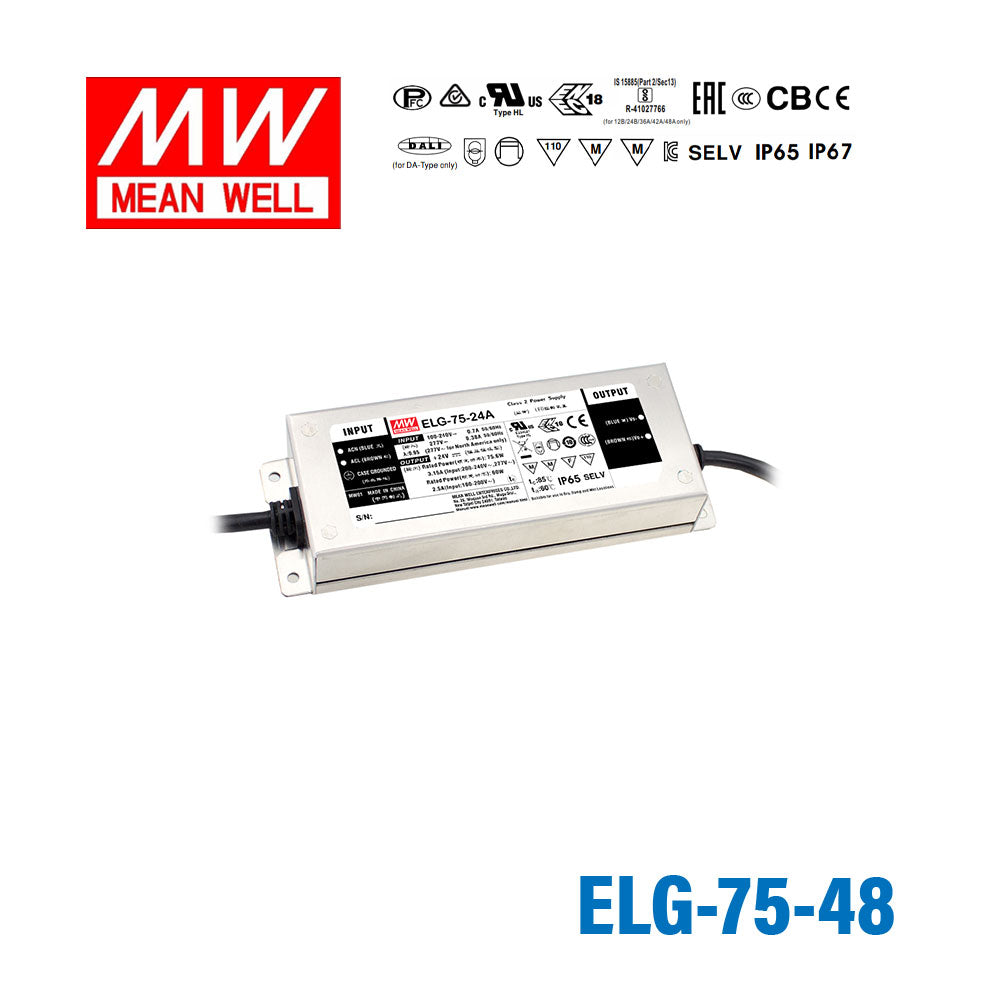

Mean Well ELG-75-48 Power Supply 75W 48V
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 91% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 50 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 180x63x35.5 |
| Packing | 16pcs / 13.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating76.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.6 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ELG-75-48 to power 48V LED strips for architectural lighting?
Yes, the ELG-75-48 operates in constant current mode at 48V with a maximum output of 76.8W, making it a solid match for 48V LED strip runs used in architectural or cove lighting. At 1.6A output, it suits strips where precise current control matters. Check your strip's rated power per meter to ensure total load stays within 76.8W.
Is the ELG-75-48 suitable for outdoor LED signage installations?
Yes. The ELG-75-48 carries an IP67 rating, meaning it is fully protected against dust and can withstand temporary immersion in water, so it is suitable for outdoor or exposed signage enclosures. Its operating temperature range of -40°C to +85°C accommodates most outdoor climate conditions.
How many meters of 48V LED strip can the ELG-75-48 power?
The ELG-75-48 delivers up to 76.8W at 48V. For example, a 48V strip rated at 14.4W/m supports up to approximately 5.3 meters (76.8W ÷ 14.4W/m ≈ 5.3m). Always check your specific strip's rated power per meter and derate slightly to avoid running at full capacity continuously.
Can the ELG-75-48 be used in wet or damp locations like outdoor landscape lighting?
The IP67 rating on the ELG-75-48 means it is sealed against dust ingress and can handle temporary submersion up to 1 meter, so it is well-suited for damp and wet outdoor environments including landscape or pathway lighting. Its wide input range of 100–305VAC also accommodates international installations.
Is this driver appropriate for powering 48V LED modules in retail display cases?
Yes, the ELG-75-48 works well for 48V LED modules used in display or accent lighting. At 76.8W and 1.6A constant current output with a CC voltage range of 24–48V, it can handle a variety of 48V module configurations within that power budget.
What certifications does the ELG-75-48 hold for use in commercial projects?
The ELG-75-48 holds UL, CB, CCC, CE, EAC, ENEC, KC, c-BSI, and c-RCM certifications, covering North America, Europe, Australia, China, and other major markets. This broad certification coverage supports its use in commercial and international projects.
How does the ELG-75-48 compare to larger ELG-series 48V drivers if I need more power?
The ELG-75-48 provides 76.8W at 48V and 1.6A. Within the ELG 48V constant-voltage siblings, the ELG-150-48 series steps up to 150.2W at 3.13A, and the ELG-200-48 series reaches 199.68W at 4.16A, while the ELG-240-48 series tops out at 240W and 5A. Choose the wattage tier that matches your total load.
