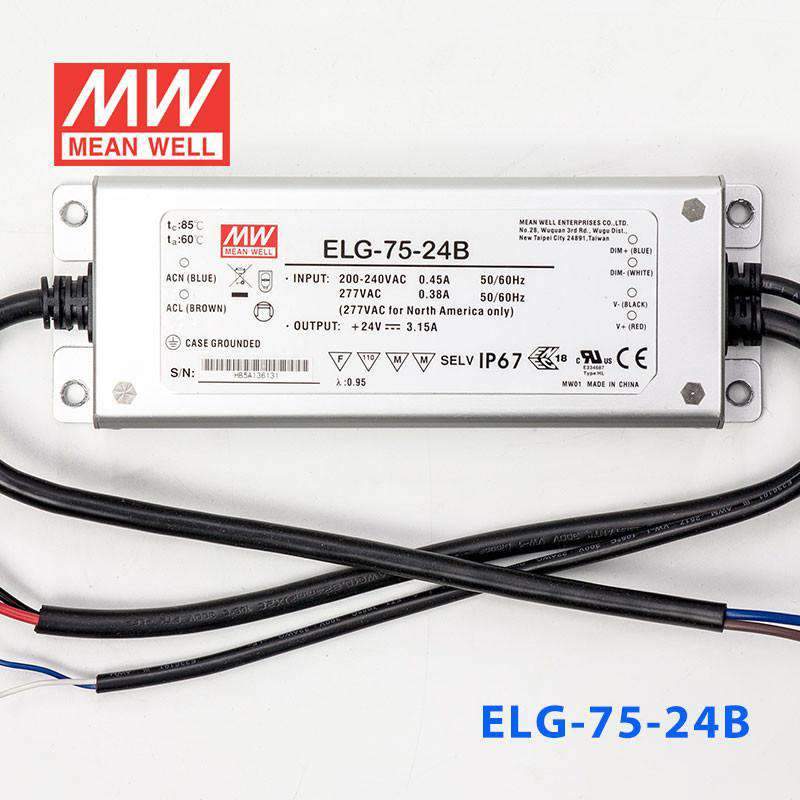

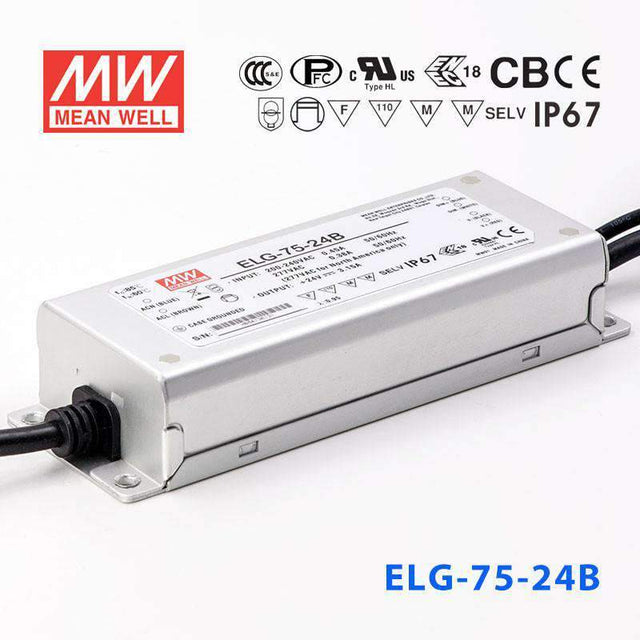

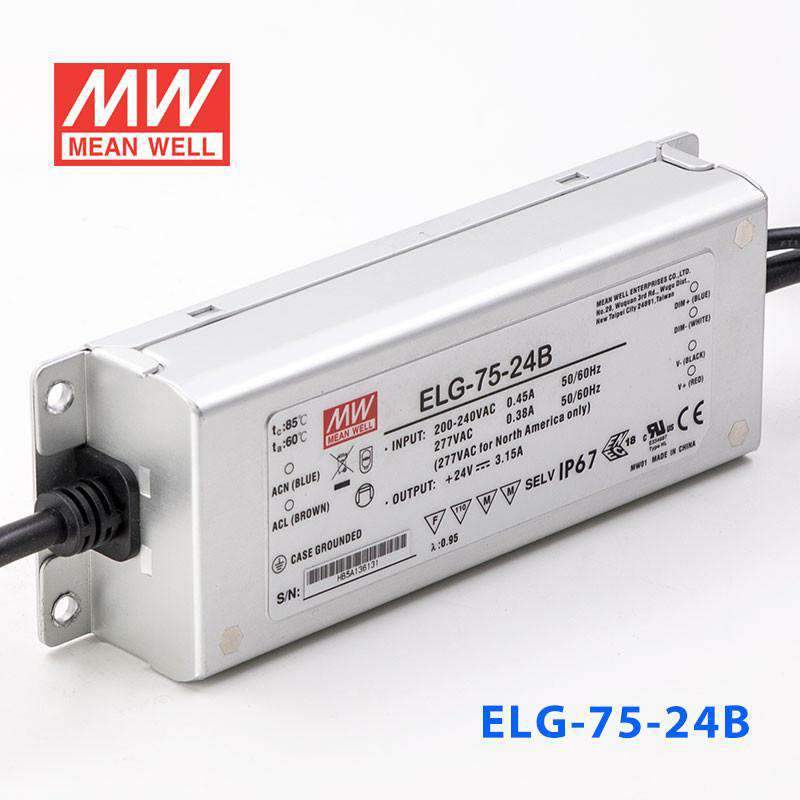

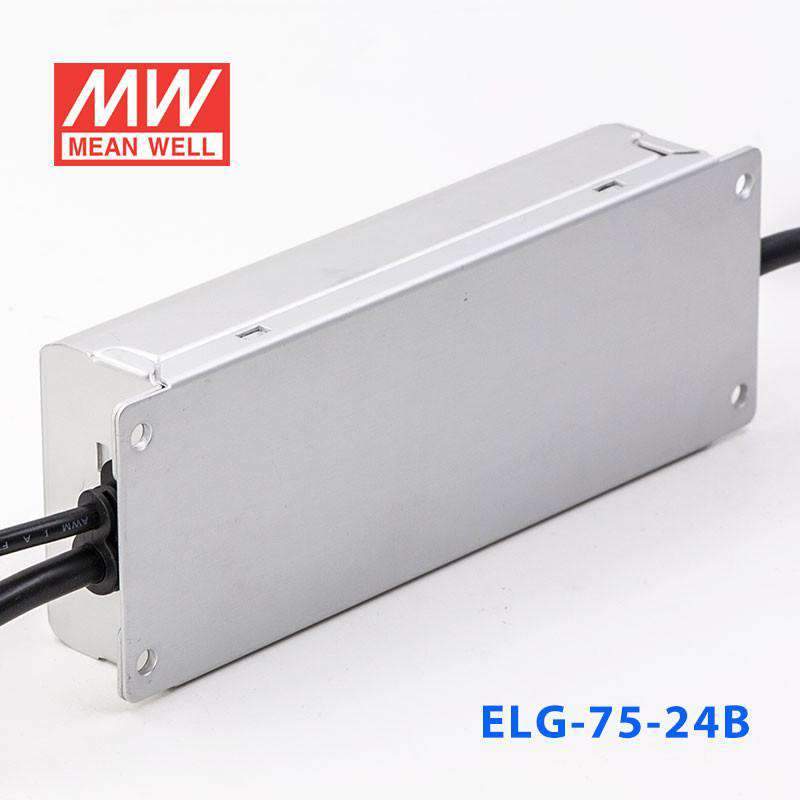

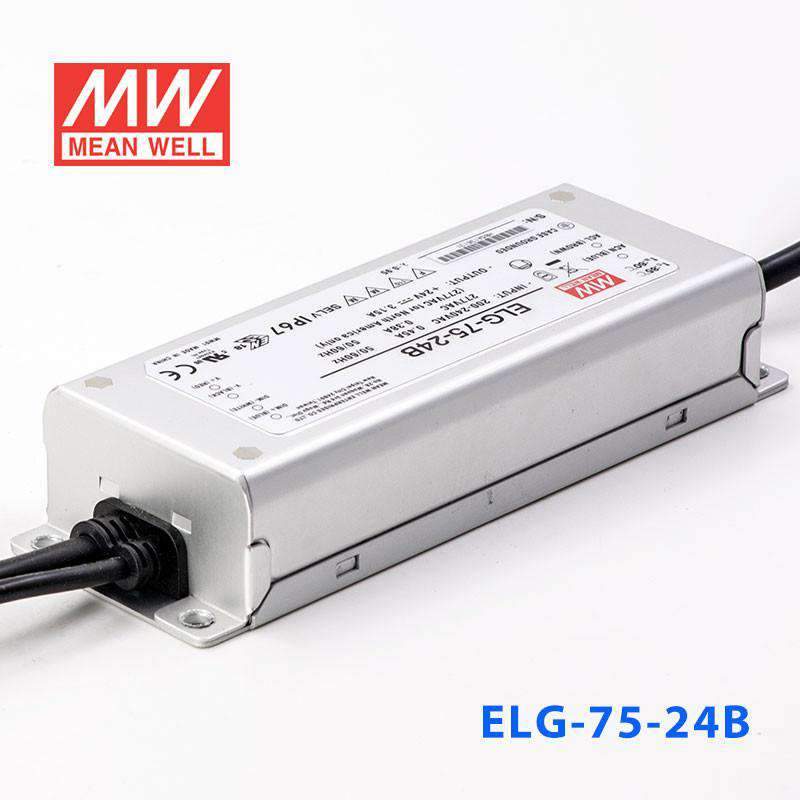

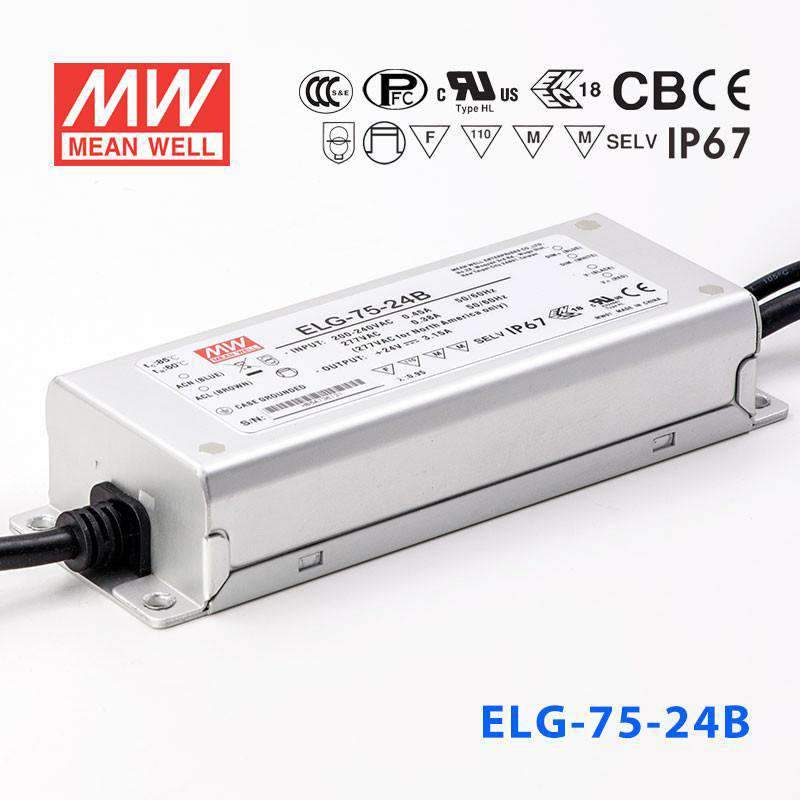

Mean Well ELG-75-24B Power Supply 75W 24V - Dimmable
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75.6 Watt
-
Output Voltage24 Volt
-
Rated Current3.15 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ELG-75-24B to power 24V LED strip lighting in a commercial sign cabinet?
Yes. The ELG-75-24B outputs 24V at up to 3.15A (75.6W total), which is well-suited for powering 24V LED strips in enclosed sign cabinets. Its IP67 rating also protects it against dust and temporary water immersion if the cabinet is exposed to moisture.
Is the ELG-75-24B suitable for outdoor architectural lighting installations?
Yes. The IP67 waterproof rating means it can withstand water immersion up to 1 meter, making it appropriate for outdoor installations. Its operating temperature range of -40°C to +85°C supports reliable performance in harsh weather conditions.
How much 24V LED strip can the ELG-75-24B drive?
The ELG-75-24B delivers up to 75.6W at 24V. If your strip consumes 10W per meter, you can run approximately 7.5 meters; at 14.4W per meter (a common high-density spec), the limit is roughly 5.2 meters. Always check your strip's rated power per meter and stay within the 75.6W output.
Can I dim LED strips connected to the ELG-75-24B?
Yes. The 'B' suffix indicates 3-in-1 dimming support, accepting a 0–10V, PWM, or resistance dimming signal. This lets you use a wide variety of dimmer controllers without needing a separate interface module.
Can I use the ELG-75-24B for indoor retail display lighting that requires dimming?
Yes. The driver's 3-in-1 dimming input is compatible with most commercial dimming systems used in retail environments. At 75.6W and 24V it can handle a small to medium run of 24V LED strips or modules commonly used in display cases and shelf lighting.
How does the ELG-75-24B compare to other ELG-75-24 variants?
All ELG-75-24 variants share 24V output and 3.15A current, but differ by dimming interface: the base model has no dimming, the A variant adds analog adjustment, the B variant supports 3-in-1 dimming (0–10V/PWM/resistance), the D2 supports 0–10V and PWM, and the DA supports DALI. The B and DA variants have the broadest dimming compatibility for building automation systems.
Is the ELG-75-24B rated for wet or damp locations?
Yes. The IP67 rating covers both dust ingress protection and temporary water immersion up to 1 meter for 30 minutes. This qualifies it for damp and wet location use, including outdoor fixtures, covered canopy lighting, and similar environments.
