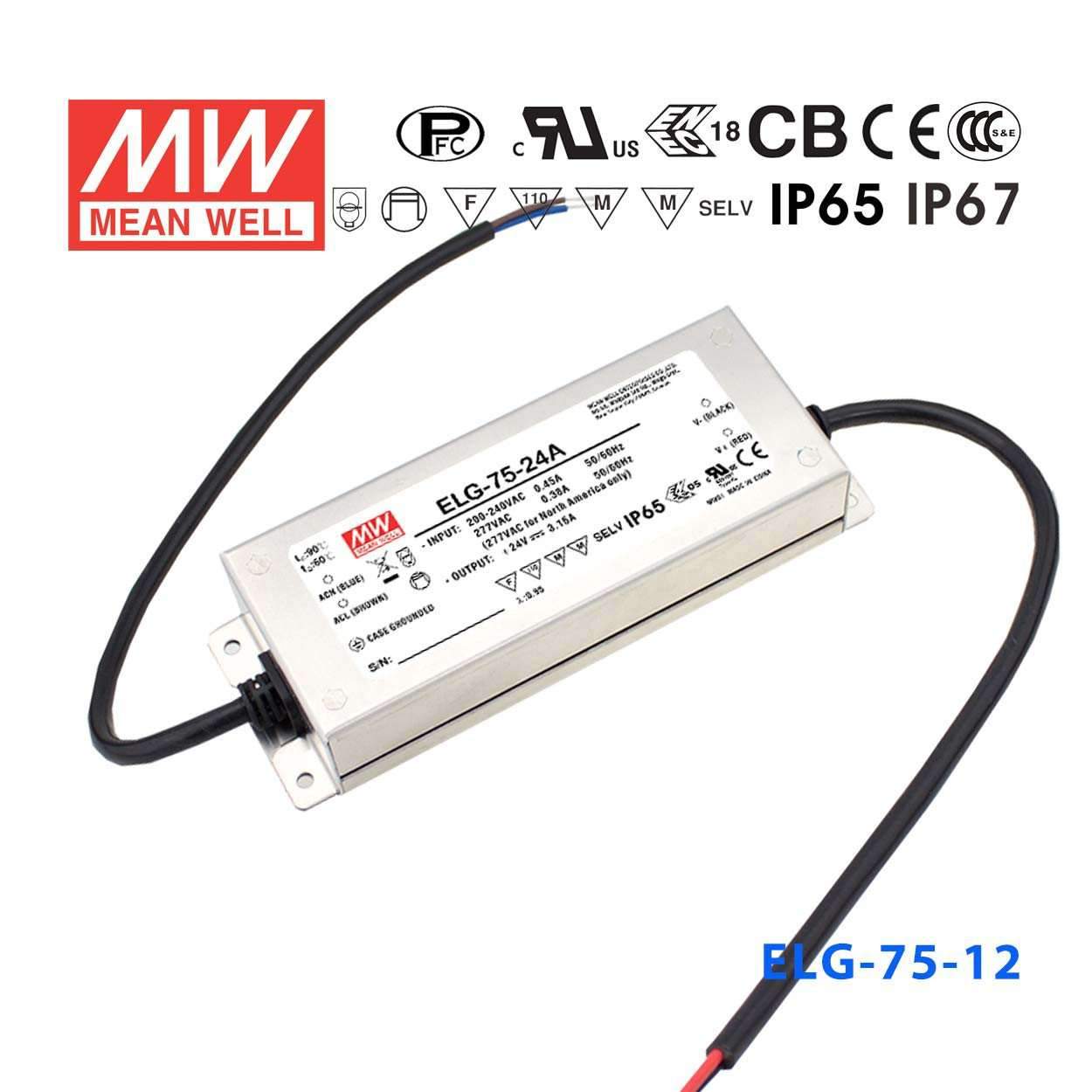

Mean Well ELG-75-12 Power Supply 60W 12V
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-75-12 power 12V LED strip lighting in an outdoor garden or pathway application?
Yes. The ELG-75-12 is rated IP67, providing full protection against dust and temporary water immersion. With an operating temperature range of -40°C to +85°C, it handles outdoor installations exposed to rain, frost, and seasonal temperature changes.
How many meters of 12V LED strip can the ELG-75-12 support?
The ELG-75-12 delivers 60W at 12V. For a 7.2 W/m strip, that supports approximately 8.3 meters (60 ÷ 7.2); for a 10 W/m strip, up to 6 meters. Always verify your strip's rated power per meter and apply a 20% derating margin for thermal safety.
Is the ELG-75-12 suitable for powering 12V LED channel letters or small outdoor signage?
Yes. At 60W and 12V with a 5A output, this driver handles small to medium runs of 12V LED modules in channel letter signs. The IP67 metal housing allows installation inside sign raceways or enclosures exposed to outdoor weather.
Can the ELG-75-12 be used for 12V LED under-cabinet or display case lighting in retail settings?
Yes. The compact 180 × 63 × 35.5 mm form factor and 60W output at 12V are well suited for under-cabinet LED strip lighting in retail display cases or shelving. The IP67 rating also tolerates the cleaning sprays and high humidity found in food retail environments.
Does the ELG-75-12 accept both 120V and 277V input for North American commercial installations?
Yes. The ELG-75-12 accepts input from 100–305VAC, covering both 120V residential and 277V commercial branch circuit voltages common in North American lighting projects. No tap changes or external transformers are required.
What is the difference between the ELG-75-12 and the ELG-75-12-3Y in this series?
The ELG-75-12 is rated at 60W with a CC voltage range of 6–12V, an operating temperature up to +85°C, and holds c_bsi, CB, CCC, CE, EAC, ENEC, KC, c_rcm, and UL certifications. The ELG-75-12-3Y is rated at 75W with a wider CC voltage range of 100–305V, operates up to +90°C, and carries BSMI, CB, CE, EAC, and UL certifications. Both output 12V at 5A with IP67 protection.
