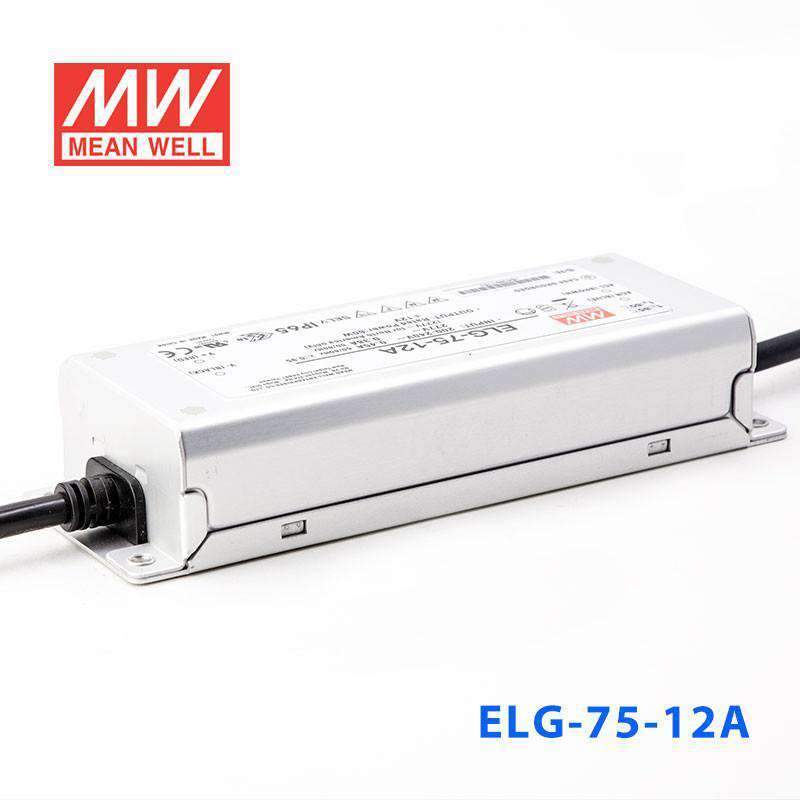

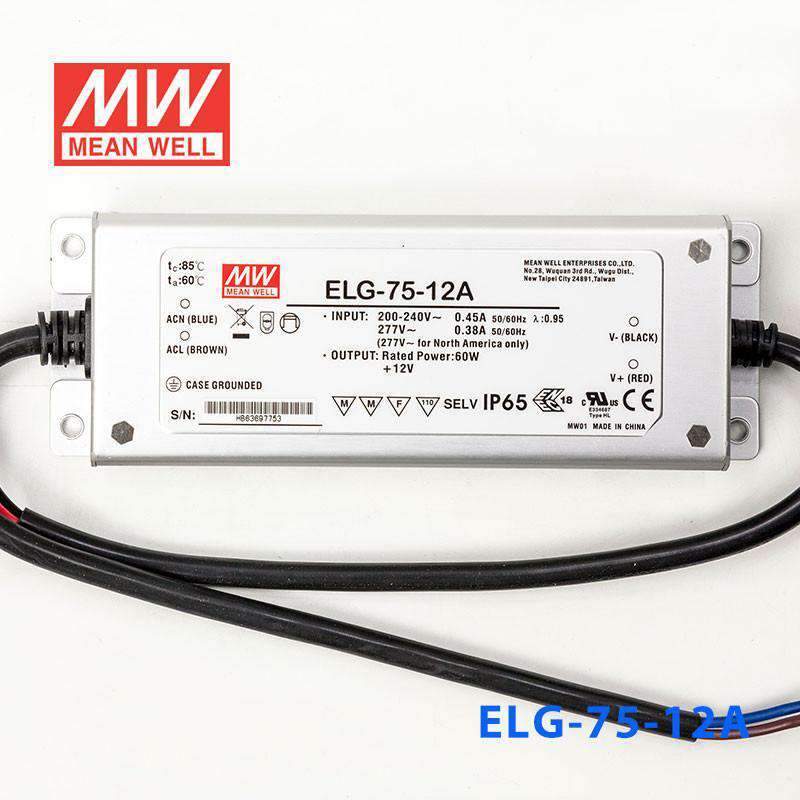

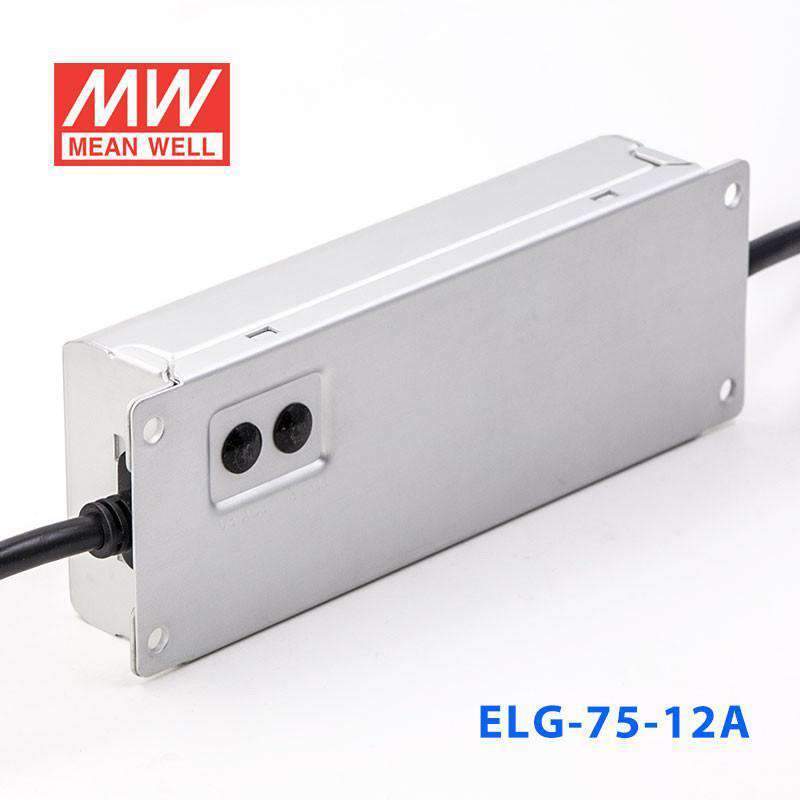

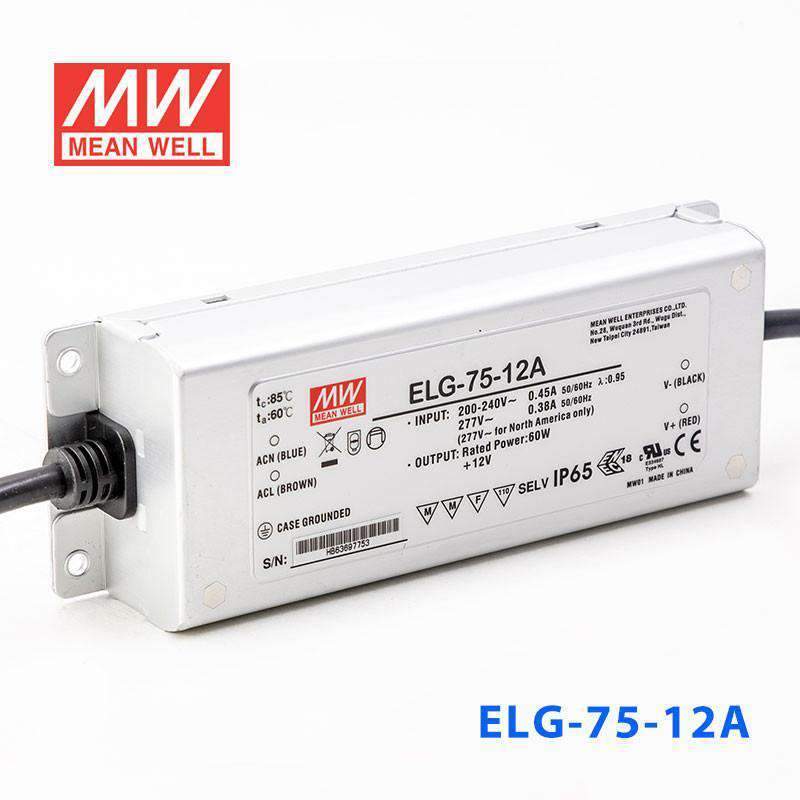

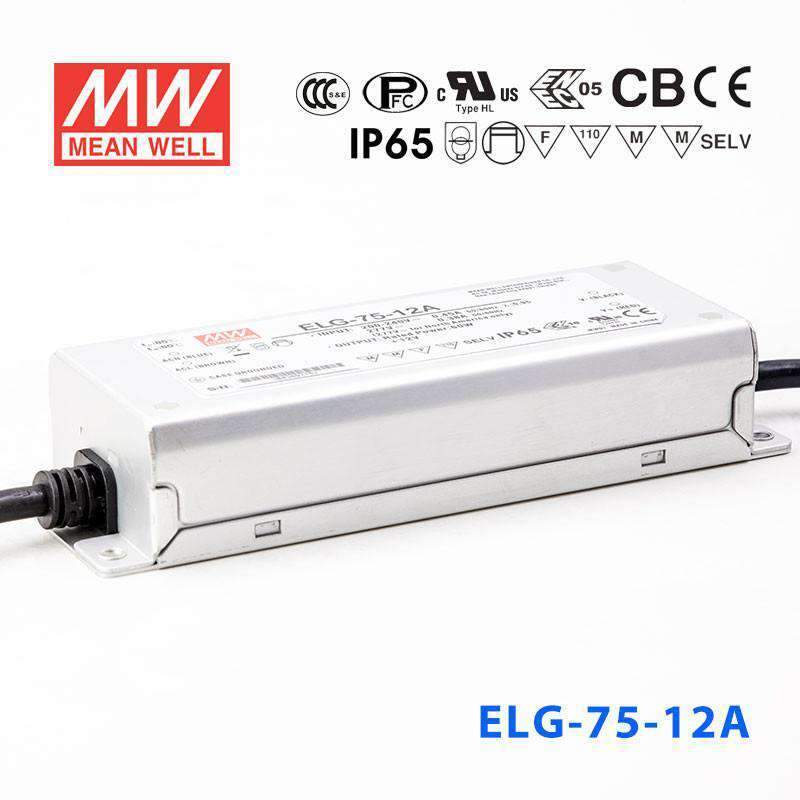

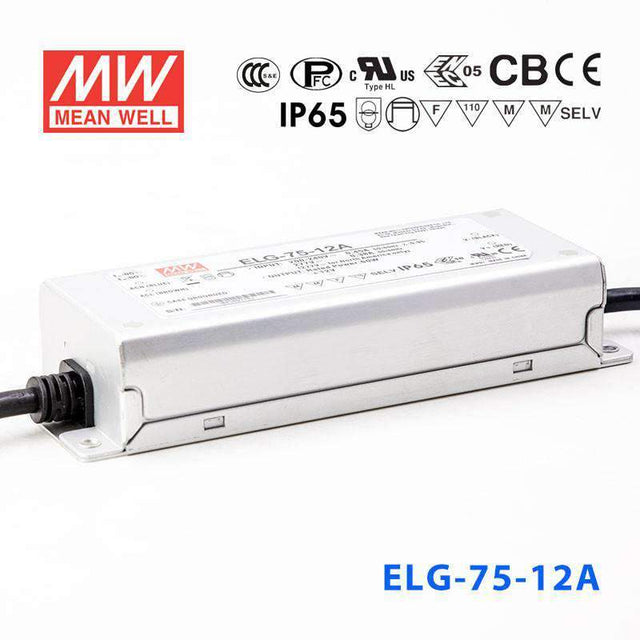

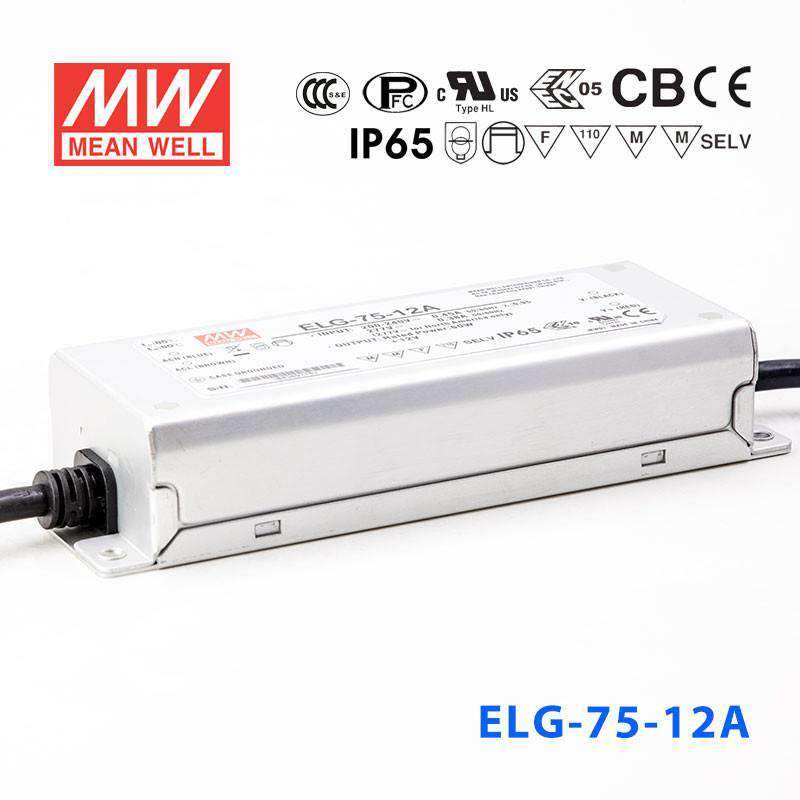

Mean Well ELG-75-12A Power Supply 60W 12V - Adjustable
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the ELG-75-12A be installed outdoors for 12V LED landscape or pathway lighting?
The ELG-75-12A is rated IP65, which provides protection against dust and low-pressure water jets but is not rated for temporary water immersion. It is appropriate for covered outdoor locations such as under-eave mounting or in weatherproof enclosures, but should not be directly submerged or exposed to standing water.
How many meters of 12V LED strip can the ELG-75-12A power?
The ELG-75-12A outputs 60W at 12V. For a 7.2 W/m strip, that supports approximately 8.3 meters (60 ÷ 7.2); for a 10 W/m strip, up to 6 meters. Always verify your strip's rated power per meter and apply a 20% derating margin for thermal reliability.
Is the ELG-75-12A suitable for 12V LED strip in retail display case or under-counter lighting?
Yes. The 60W output at 12V and compact 180 × 63 × 35.5 mm housing fit easily into display case enclosures or under-counter lighting channels. The IP65 rating tolerates the cleaning sprays and humidity typical of retail food and merchandise display environments.
Can the ELG-75-12A be used for 12V LED channel letter lighting on interior signage?
Yes. At 60W and 12V with a 5A output, the ELG-75-12A powers small to medium 12V LED module runs for interior illuminated signs and channel letters. The adjustable output voltage allows fine-tuning to compensate for voltage drop across the LED array.
What does the 'A' suffix indicate on the ELG-75-12A, and what can be adjusted?
The A suffix means the output voltage and current are adjustable via built-in trimmers. The CC voltage range of 6–12V allows the output to be fine-tuned to match the specific requirements of the connected LED load or to compensate for cable voltage drop without external components.
Is the ELG-75-12A suitable for powering 12V LED lighting in museum or gallery display cases?
Yes. The adjustable output enables precise voltage matching to low-heat, high-CRI LED strips used in display case lighting. The 5-year warranty and broad certification set including UL, CE, CCC, and ENEC support use in permanent institutional installations with strict procurement requirements.
