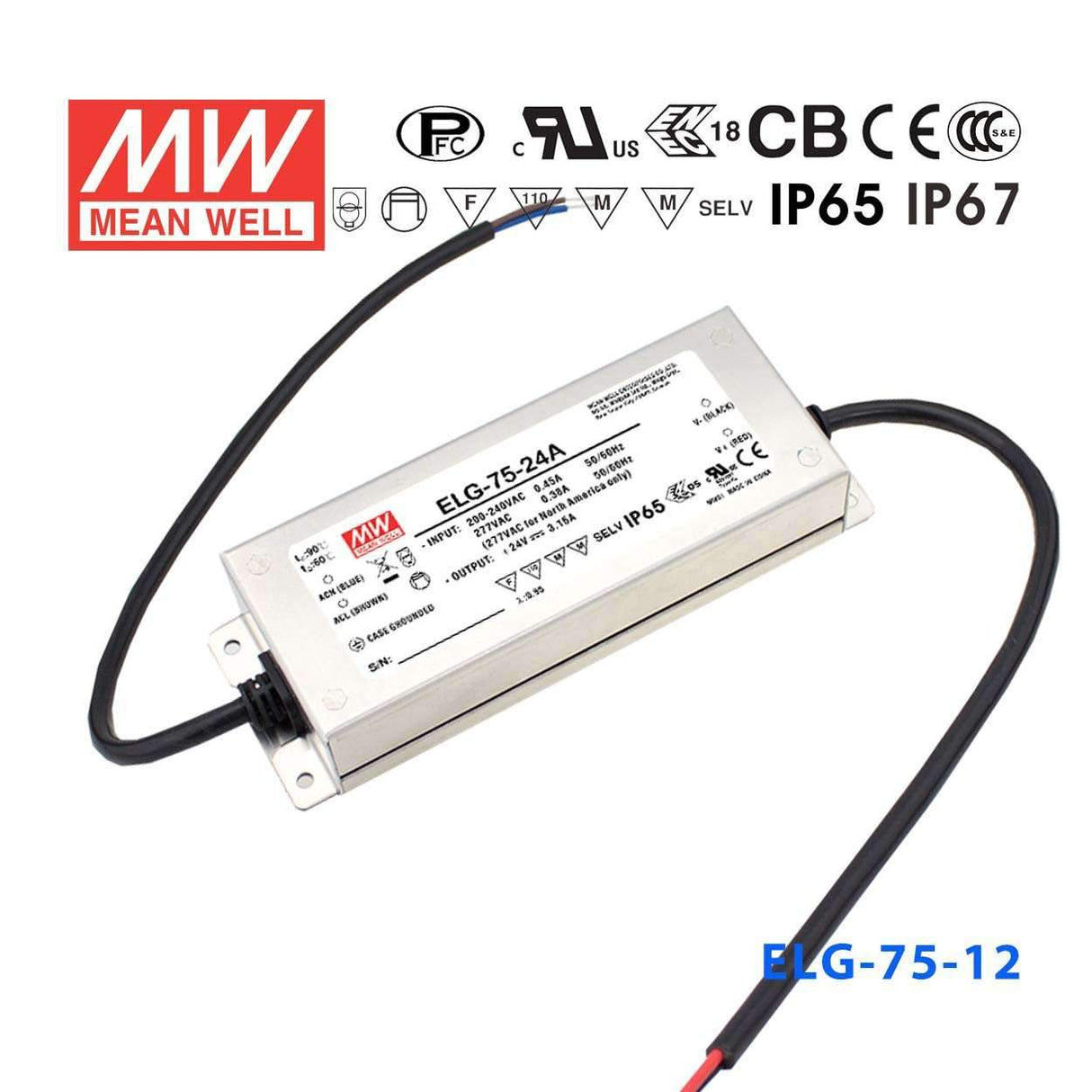

Mean Well ELG-75-12AB Power Supply 60W 12V - Adjustable and Dimmable
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the ELG-75-12AB be used for 12V LED strip lighting in covered outdoor areas such as a pergola or carport?
The ELG-75-12AB is rated IP65, offering protection against dust ingress and low-pressure water jets. It is suitable for covered outdoor locations where direct rain exposure is avoided, such as under an eave, in a weatherproof enclosure, or in a semi-protected outdoor area.
How many meters of 12V LED strip can the ELG-75-12AB power?
The ELG-75-12AB delivers 60W at 12V. For a 7.2 W/m strip, that supports approximately 8.3 meters (60 ÷ 7.2); for a 10 W/m strip, up to 6 meters. Always check your strip's rated power per meter and leave a 20% safety margin to prevent thermal overloading.
Is the ELG-75-12AB suitable for 12V LED dimming applications in hospitality or architectural lighting?
Yes. The AB suffix indicates both adjustable output and built-in dimming capability. This makes it well suited for hospitality accent lighting, architectural cove lighting, or any 12V LED application where output dimming is needed without external inline dimmers.
Can the ELG-75-12AB drive 12V LED strip in retail product display lighting where dimming is required?
Yes. The 60W output at 12V and built-in dimming function allow this driver to serve retail display lighting where adjustable light levels are needed for product presentation or ambiance. The compact 180 × 63 × 35.5 mm enclosure fits in standard display fixture wiring compartments.
What does the 'AB' suffix mean on the ELG-75-12AB, and how does it differ from the 'A' variant?
The AB suffix indicates that the driver includes both adjustable output (A) and a built-in dimming interface (B). The ELG-75-12A provides adjustable output only, while the ELG-75-12AB adds dimming capability to the same 60W, 12V, 5A platform with the same IP65 rating and CC voltage range of 6–12V.
Is the ELG-75-12AB appropriate for 12V LED lighting in cold-climate indoor installations such as unheated warehouses?
Yes. The operating temperature range starts at -40°C, meaning the ELG-75-12AB operates reliably in unheated storage areas, cold-climate garages, or loading docks where temperatures can drop significantly below freezing in winter.
