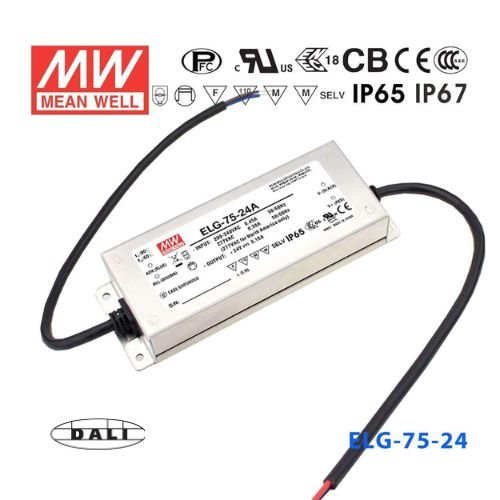

Mean Well ELG-75-24DA Power Supply 75W 24V - DALI
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75.6 Watt
-
Output Voltage24 Volt
-
Rated Current3.15 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is DALI dimming and is the ELG-75-24DA compatible with DALI lighting control systems?
DALI (Digital Addressable Lighting Interface) is a standardized protocol that allows individual or grouped control of luminaires over a two-wire bus. The ELG-75-24DA supports DALI dimming, so it can be integrated into building automation systems that use DALI controllers for scene, schedule, or occupancy-based lighting control.
Can the ELG-75-24DA be installed in an outdoor IP-rated fixture for facade uplighting?
Yes. The IP67 rating ensures the driver is protected against dust and water immersion, making it suitable for outdoor facade or architectural uplighting applications. The -40°C to +85°C operating range supports year-round outdoor use.
How much 24V LED strip can I run from the ELG-75-24DA?
The ELG-75-24DA outputs 75.6W at 24V (3.15A). At 10W per meter of LED strip that is approximately 7.5 meters; at 14.4W per meter it is roughly 5.2 meters. Check your strip's labeled watt-per-meter rating and verify the total stays within 75.6W.
Is the ELG-75-24DA suitable for smart-building office lighting with DALI bus control?
Yes. The DALI interface allows the ELG-75-24DA to receive dimming and on/off commands from a DALI controller, which is the standard in smart office and commercial building automation. At 75.6W it can serve an individual luminaire or a small zone of 24V LED fixtures.
Can I use the ELG-75-24DA in a retail store with a centralized DALI dimming system?
Yes. Retail lighting systems that use DALI for zone-by-zone brightness control are a common application. The ELG-75-24DA's DALI input allows it to be addressed individually on the bus, so each driver can be dimmed independently or as part of a group.
Does the ELG-75-24DA have a 5-year warranty?
Yes. Mean Well provides a 5-year warranty on the ELG-75-24DA. The driver also holds multiple certifications including UL, CE, CB, CCC, ENEC, KC, EAC, c_BSI, and c_RCM, supporting international project requirements.
